Sharp SJ-43L-A2G User Manual

17
SJ-43L-A2
SJ-47L-A2

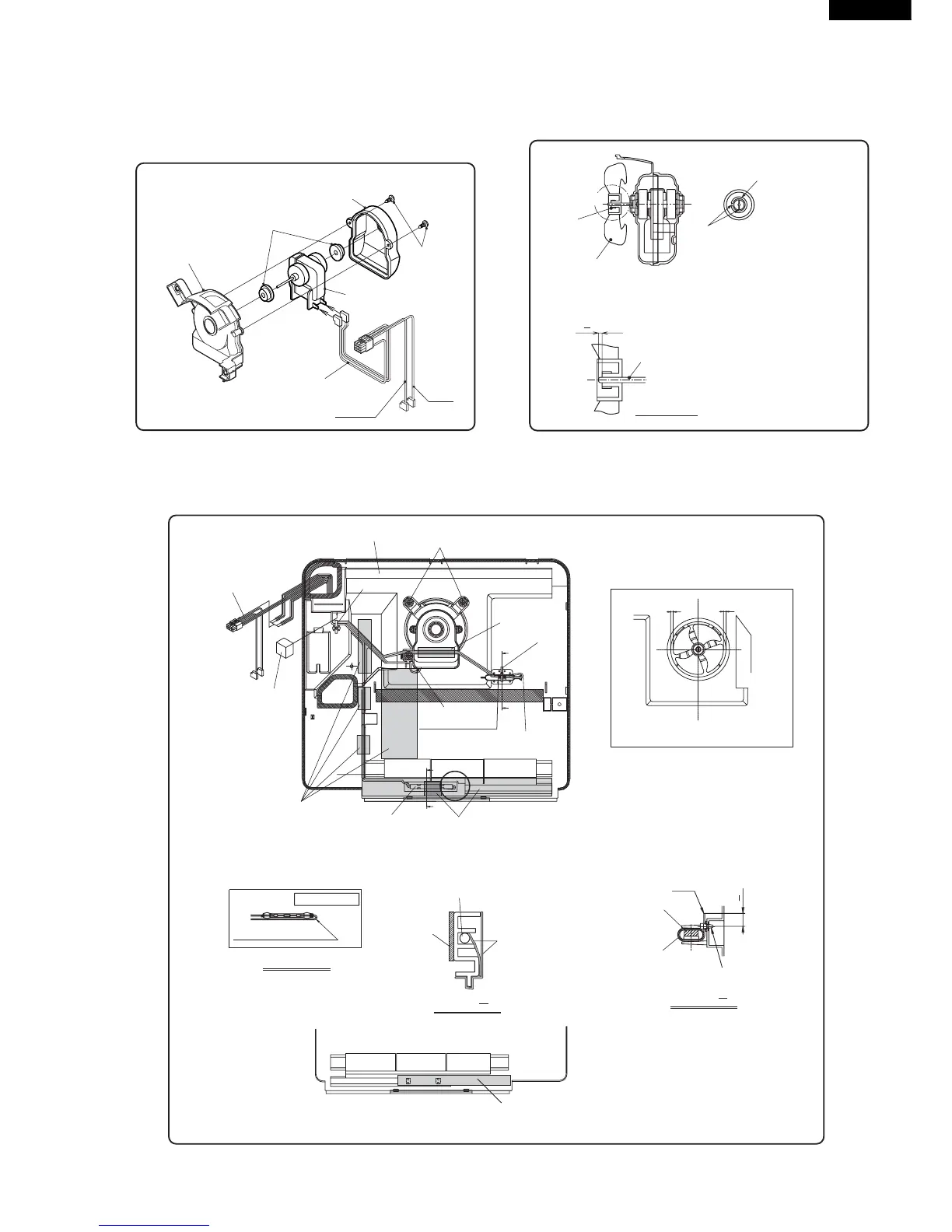

(2)-4 Set Fan clamp to Propeller fan 100 and insert
it to the shaft of Fan motor.
(2)-2 Insert the terminals of Lead EV-cover ass'y to
Fan motor.
(2)-3 Fix two Motor cushions to Fan motor, and set it
at Fan motor holder A and B.
Then fix with Tapping screw.
Figure A-8
(3) Setting of Fan motor ass'y , Defrost thermo. ass'y and Fuse ass'y.
Fan motor
holder A
Fan motor
holder B
Motor cushion
Tapping
screw
Fan motor
Lead EV-cover ass’y
RED
BROWN
Fan clamp
Propeller
fan 100
Fan clamp
Slit
Slit of each Fan clamp
and Propeller fan
should not be at same position.
Shaft
4 0.5mm
+
Detail of D
D
Note
Propeller fan should not be
taken out from shaft when
pulled by 3 kgf.
Figure A-10
[front side]
more than 3.5mm more than 3.5mm
Lead e.v cover
ass’y
E.v cover sealer C
Take out lead wire
from square hole to
front and fix with
L-band C, then seal
with E.v cover sealer C
Aluminum tape
Aluminum tape
Aluminum tape
Aluminum tape
Tapping screw
Set metal side below
L-band C
L-band C
L-band C
Fuse ass’y
[back side]
Defrost thermo.
ass’y
Tapping screw
E.v cover
F
G
F
H
H
Defrost thermo.
ass’y
CUT
Not come out of claw.
10 5mm
+
SEC. F F
Turn up lead wire
ATTENTION
SEC. H H
Fuse ass’y
E.v cover
sealer E
Detail of G
E.v cover sealer E
[Front side]
Figure A-9
