3
4

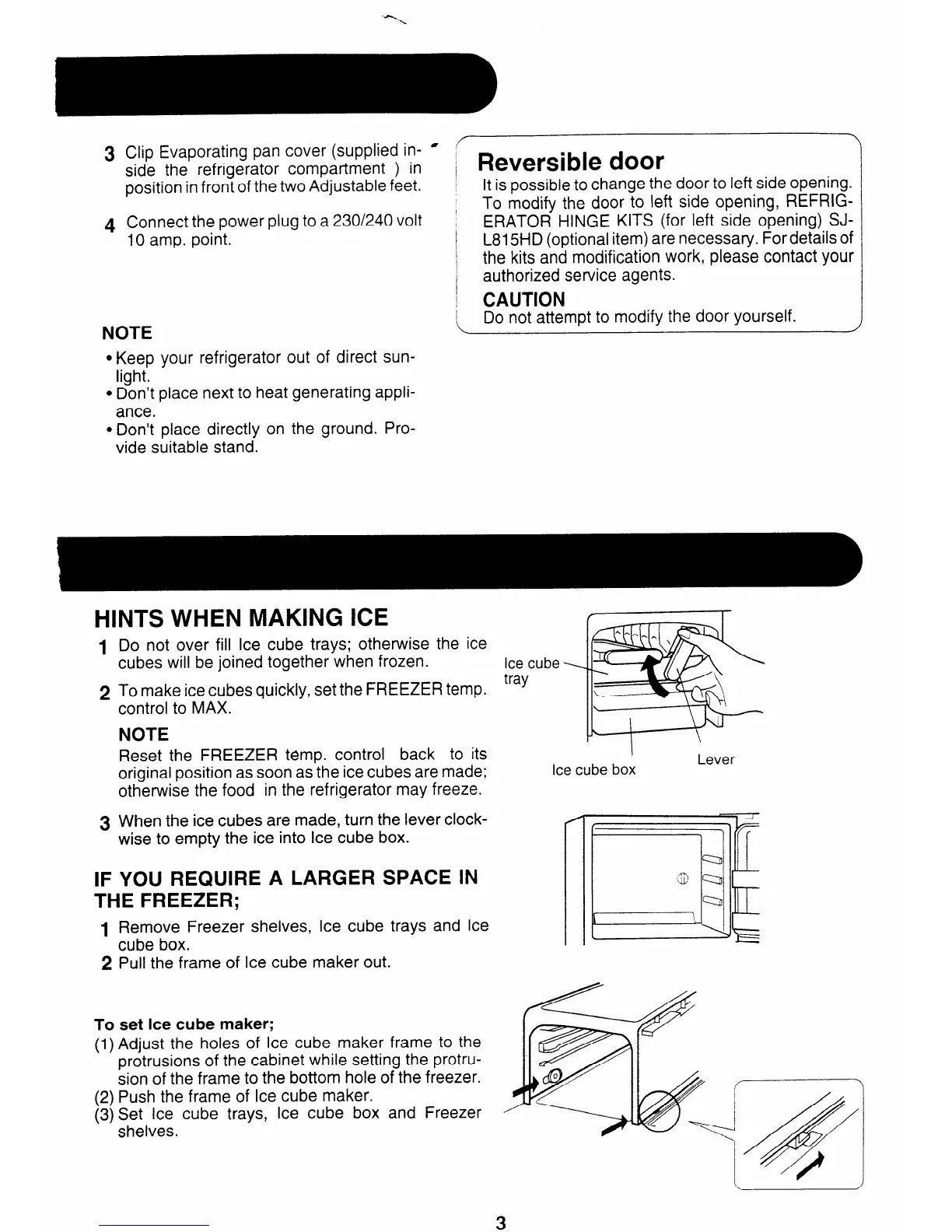

Clip Evaporating pan cover (supplied in- m c
side the refrigerator compartment ) in
i Reversible door
position in front of the two Adjustable feet.
Connect the power plug to a 230/240 volt
10 amp. point.
NOTE
i
It is possible to change the door to left side opening.
j To modify the door to left side opening, REFRIG-
,
ERATOR HINGE KITS (for left side opening) SJ-
1 L815HD (optional item) are necessary. For details of
I
the kits and modification work, please contact your
4
authorized service agents.
! CAUTION
\ Do not attempt to modify the door yourself.
l Keep your refrigerator out of direct sun-
light.
l Don’t place next to heat generating appli-
ance.
l Don’t place directly on the ground. Pro-
vide suitable stand.
HINTS WHEN MAKING ICE
1 Do not over fill Ice cube trays; otherwise the ice
cubes will be joined together when frozen.
2 To make ice cubes quickly, set the FREEZER temp.
control to MAX.
NOTE
Reset the FREEZER temp. control back to its
original position as soon as the ice cubes are made;
otherwise the food in the refrigerator may freeze.
3 When the ice cubes are made, turn the lever clock-
wise to empty the ice into Ice cube box.
IF YOU REQUIRE A LARGER SPACE IN
THE FREEZER;
1 Remove Freezer shelves, Ice cube trays and Ice
cube box.
2 Pull the frame of Ice cube maker out.
To set Ice cube maker;
(1) Adjust the holes of Ice cube maker frame to the
protrusions of the cabinet while setting the protru-
sion of the frame to the bottom hole of the freezer.
(2) Push the frame of Ice cube maker.
(3) Set Ice cube trays, Ice cube box and Freezer
shelves.
Ice cube
tray
I
Ice cube box
Lever
To Next Page
