7
SJ-P58M/58M
SJ-P63M/63M
SJ-P68M/68M

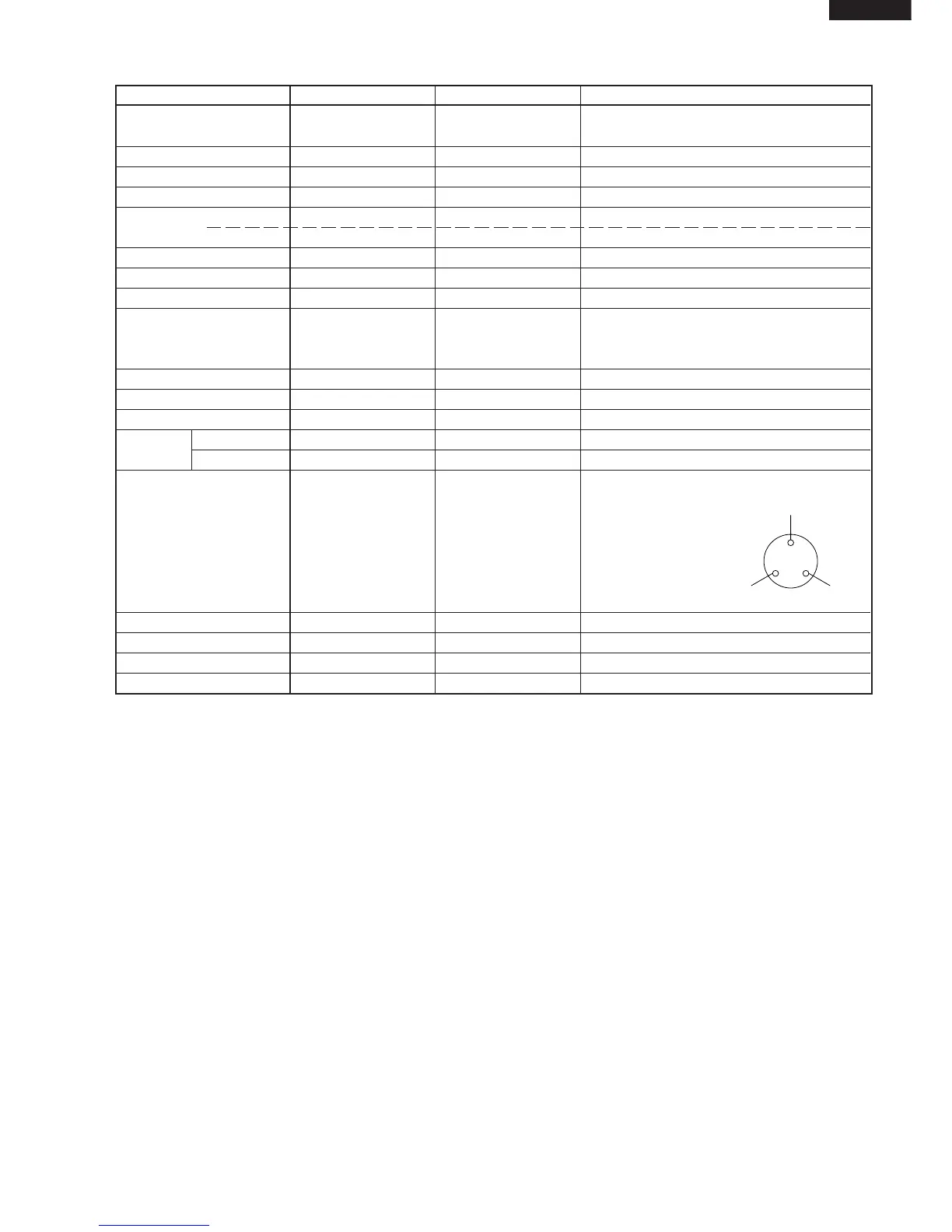

LIST OF ELECTRICAL PARTS
ITEMS TYPE NAME RATING SPECIFICATIONS
Thermostat MM1-8123 125V 6A (At normal notch)
250V 3A ON/OFF : -19/-24˚C
Defrost thermostat S101 250V 8A Open/Close : 10/1˚C
Thermo. fuse SF70E 250V 10A Working temp. : 70˚C
F-fan motor 3R00044B 220-240V 50/60Hz Working with ø100 fan
R-fan motor 3R00122A 220-240V 50/60Hz Working with ø80 fan
(R-fan fuse) 123 250V 2A Cut OFF 130˚C
Defrost heater MM6-4198 220-240V 353Ω 150W at 230V
Door switch DSD-5 250V 0.25A 4 terminals push-button type
Damper thermostat MM1-6176 — Open/Close : 2/-3˚C
Defrost timer ND1004M2 220-240V Integration type
50/60Hz Cycle time : 10.8/9.0 hours(50/60Hz)
Delay time : 4.3/3.6 min.(50/60Hz)
Lamp socket (F/R) — 250V 1A E-12(Hard plastic body type)
F-lamp — 240V 10W E-12
R-lamp — 240V 15W E-12
R-fan thermo.
R-fan thermo.
S101 250V 8A Open/ Close : 7/15˚C
ass'y
R-fan thermo.heater
RSS2 350V, 2W, 10kΩ 1.1W at 230V
Compressor FL2088 220-240V/50Hz Cooling capacity : 245W(50Hz)
Main coil : 9.11Ω
Aux. coil : 16.6Ω
(at 25˚C)
Starting relay PGT0SAT — 33 Ω ( at 25˚C )
Overload relay(Protector) 2.0C36A3 — Open/ Close : 130/60˚C
Running capacitor — 4µF,450V —
Ionizer-K
(Plasmacluster unit)
FTRN-A014CBKZ DC 12V 3.5kV p-p
Common
Main coil
Aux. coil
To Next Page
