SJ-P58M/58M
SJ-P63M/63M
SJ-P68M/68M

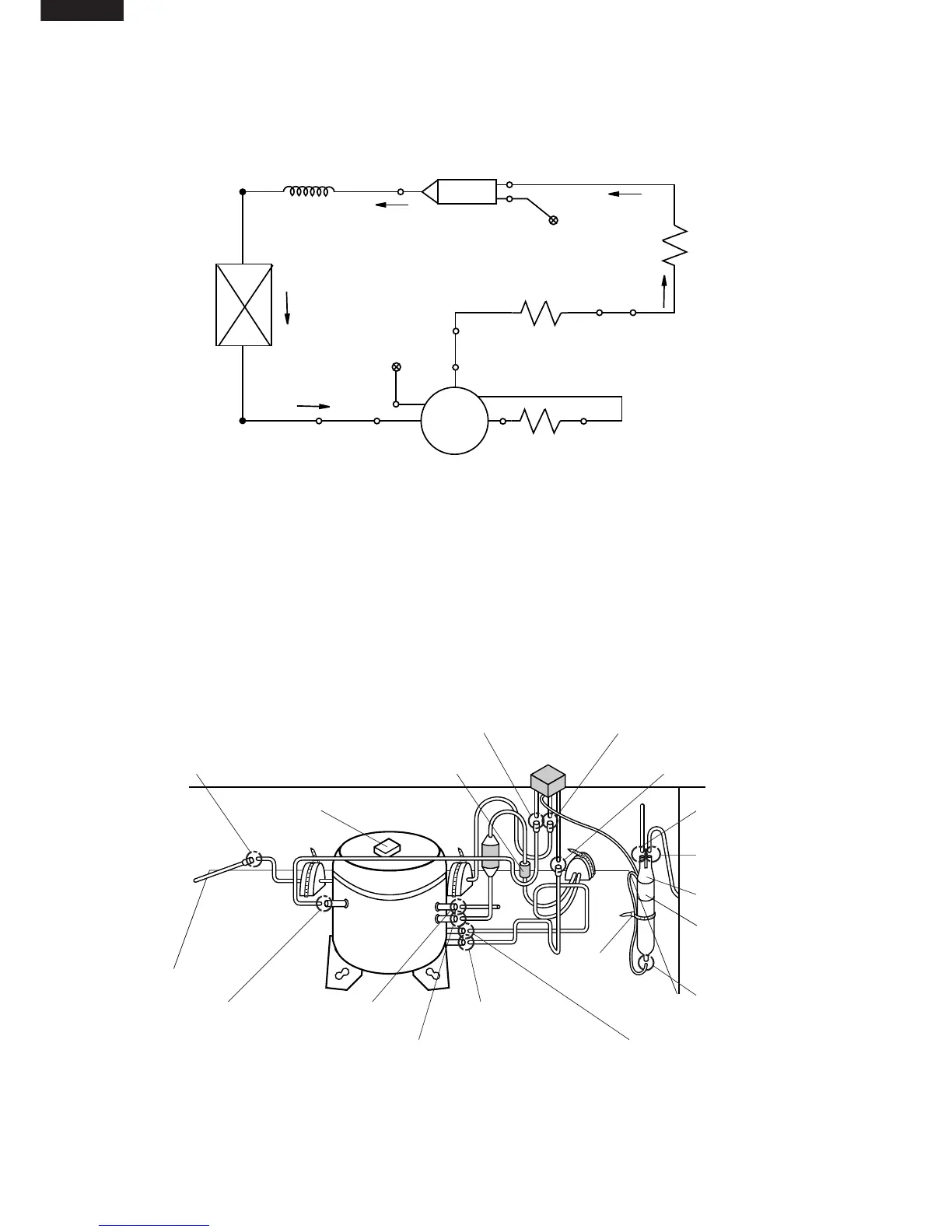

Figure C-3. Location
Figure C-2. Location
Compressor
Suction pipe
Charge pipe
Charge pipe
Capillary tube
Dryer
Hot pipe
S.P. connector
Sub. condenser
Back condenser
Backcon connector
Evaporator
Connector pipe
Charge pipe to
Dryer
Hot pipe to
Dryer
Dryer
Dryer support
L-band C
Compressor oil cooler to
Connector pipe
Backcon connector to
Hot pipe
S.P Connector to
Compressor's suction tube
Charge pipe to
Compresser
Compresser discharge pipe to
Sub condenser ass'y
Sub condenser ass'y to
Compresser oil cooler
Suction pipe ass'y to
S.P connector
Dryer to
Capillary tube
Connector pipe to
Back condenser
Compressor butyl
Back condenser to
Backcon connector
Absorbent rubber A
