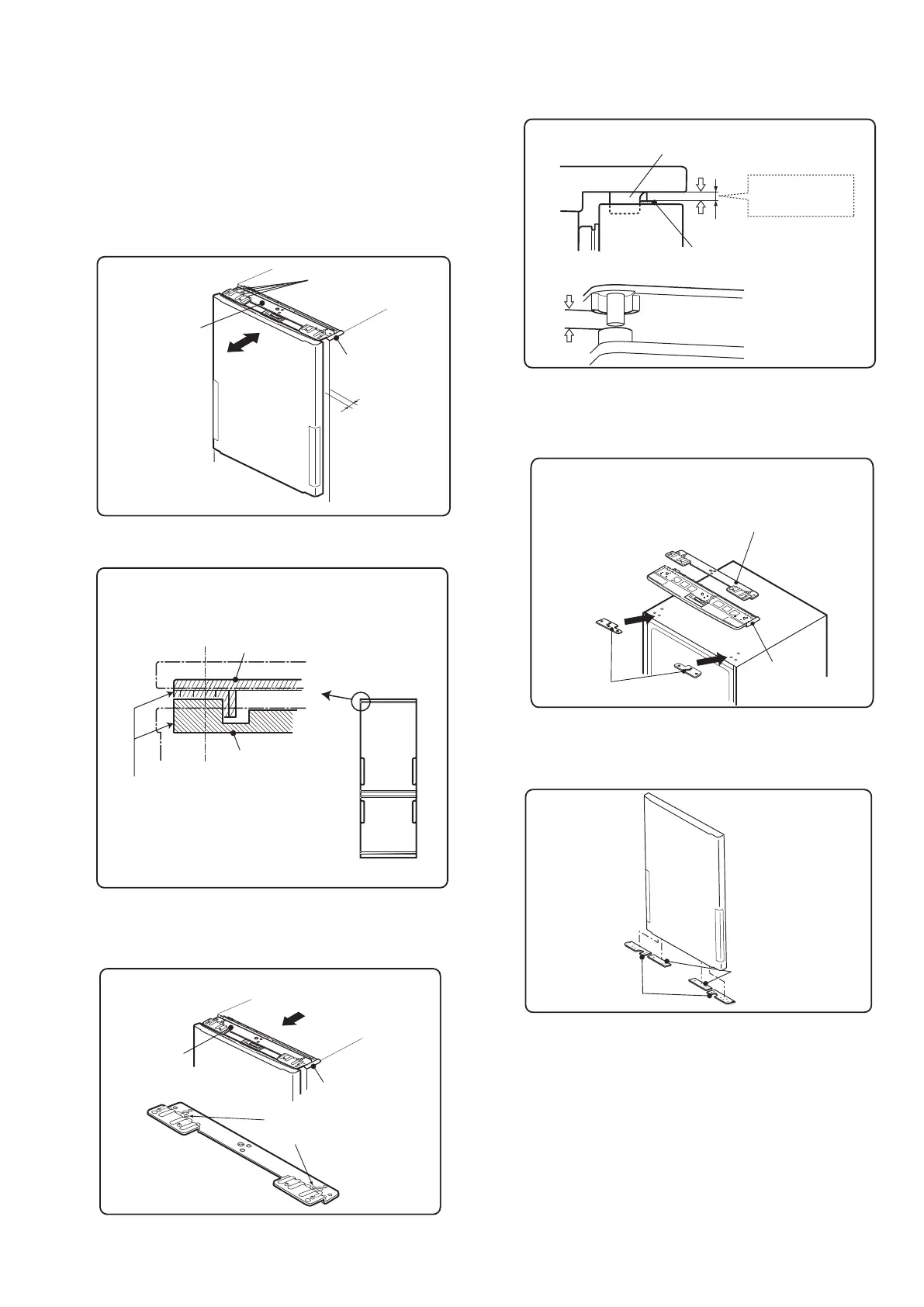

(4) Adjust the upper hinge ass’y.
(4)-1 R door
[1] Loosen the screws securing R-upper hinge ass’y
(four each on right and left).
[2] Rock the door back and forth 5 times.
(Because the positional relationship between the door
andR-upperhingeass’ywaschangedin(2),tthe
hinge to the door.)
[3] Check the door position.
[4] Without moving the door, pull the R-upper hinge
ass’y toward you and tighten the screws.
R-upper hinge
ass'y
前後に約５回
Table support
8〜9 mm
Back and forth
approx. 5 times
Loosen
Hinge cam
Door cam
These end faces should be
on the same line.
Viewing from the front, align the Hinge cam of
R-upper hinge ass’ y with the Door cam.
• This requirement also applies
to the right side.
R-upper hinge
ass'y
Table support
Use this screw for
positioning.
Pull the R-upper hinge
ass’ y toward you.
[5] Check the clearance between the R-upper hinge
ass’y and Door cam.
•Whenclearanceisnarrow:whilethedooris
opening/closing, R-upper hinge ass’y and Door cam
rub against each other.
•Whentheclearanceiswide:evenlyplacetheRoller
spacer and Door cam spacer under the door.
R-upper hinge ass'y
Door cam
A
B
R-upper hinge ass'y
Door cam
A
B
Side view
Front view
Adequate clearance
2 +0/-1 mm
Table support
R-Upper hinge ass’y
Upper hinge spacer
Place the R-upper hinge spacer under
the Table support. (Add the spacers as necessary.)
Roller spacer
Door cam spacer
