Sharp SJ-WS320TS - Page 54

SJ-WS320T-S
54

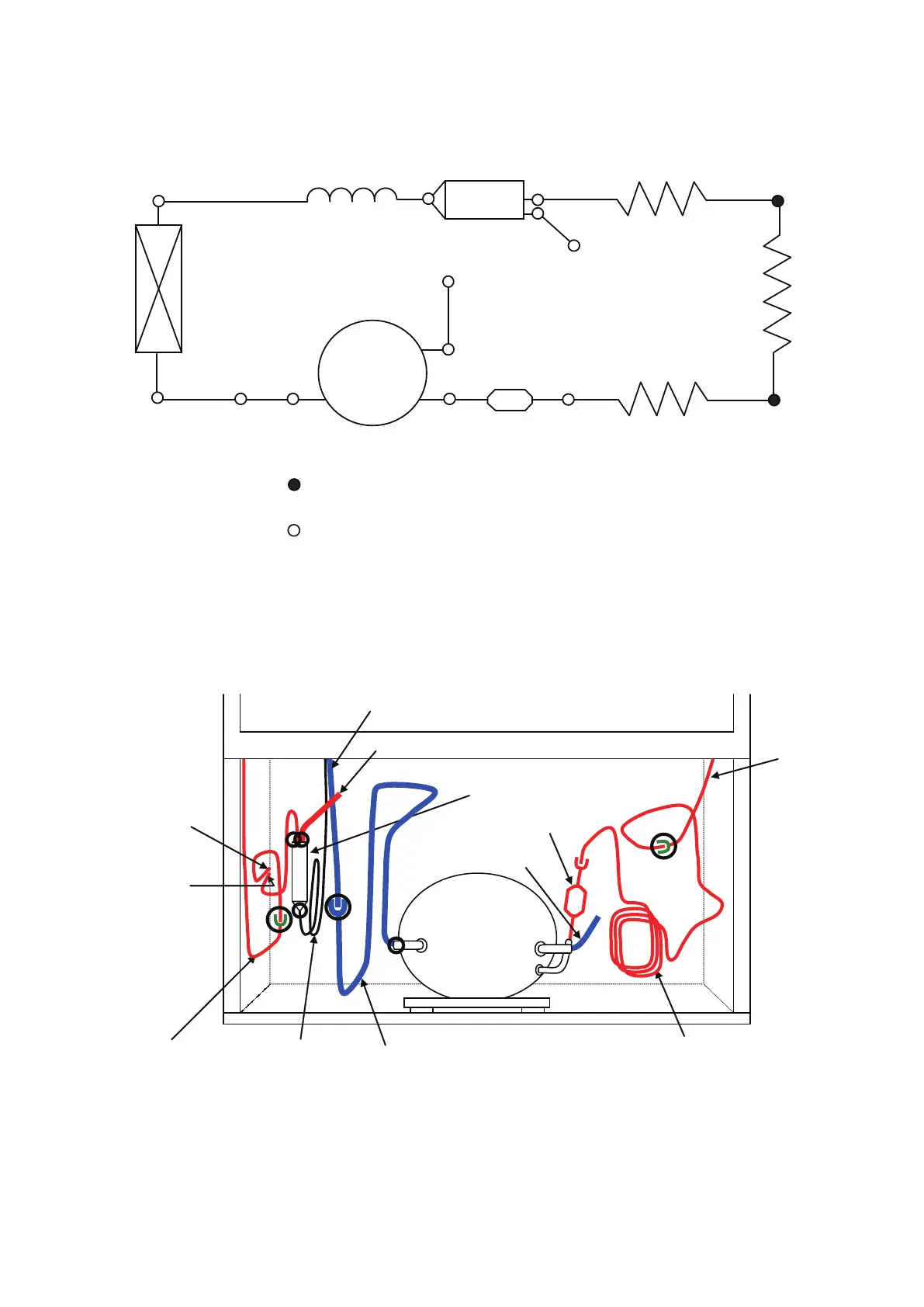

2-3. SJ-WM320T
1) LOCATION 1
2) LOCATION 2
SUCTION PIPE
S.P CONNECTOR
EVAPORATOR
CAPILLARY TUBE
DRYER
CHARGE PIPE L
HOT PIPE
DCP CONNECTOR
F-DP CONDENSER
COMPRESSOR
MUFFLER ASS'Y
: Mark shows welding points (Steel to copper)
: Mark shows welding points (Copper to copper)
CHARGE PIPE L
S.P CONNECTOR
CAPILLARY TUBE
HOT PIPE
(INLET)
DRYER
SUCTION PIPE
DPC CONNECTOR
HOT PIPE
(OUTLET)
COMPRESSOR
F-DP CONDENSER
(INLET)
F-DP CONDENSER
(OUTLET)
MUFFLER ASS'Y
CHARGE PIPE L (A726)
CHARGE PIPE L (A726)
