PRECISION MACHINE TOOLS Ver 2 Maintenance Manual

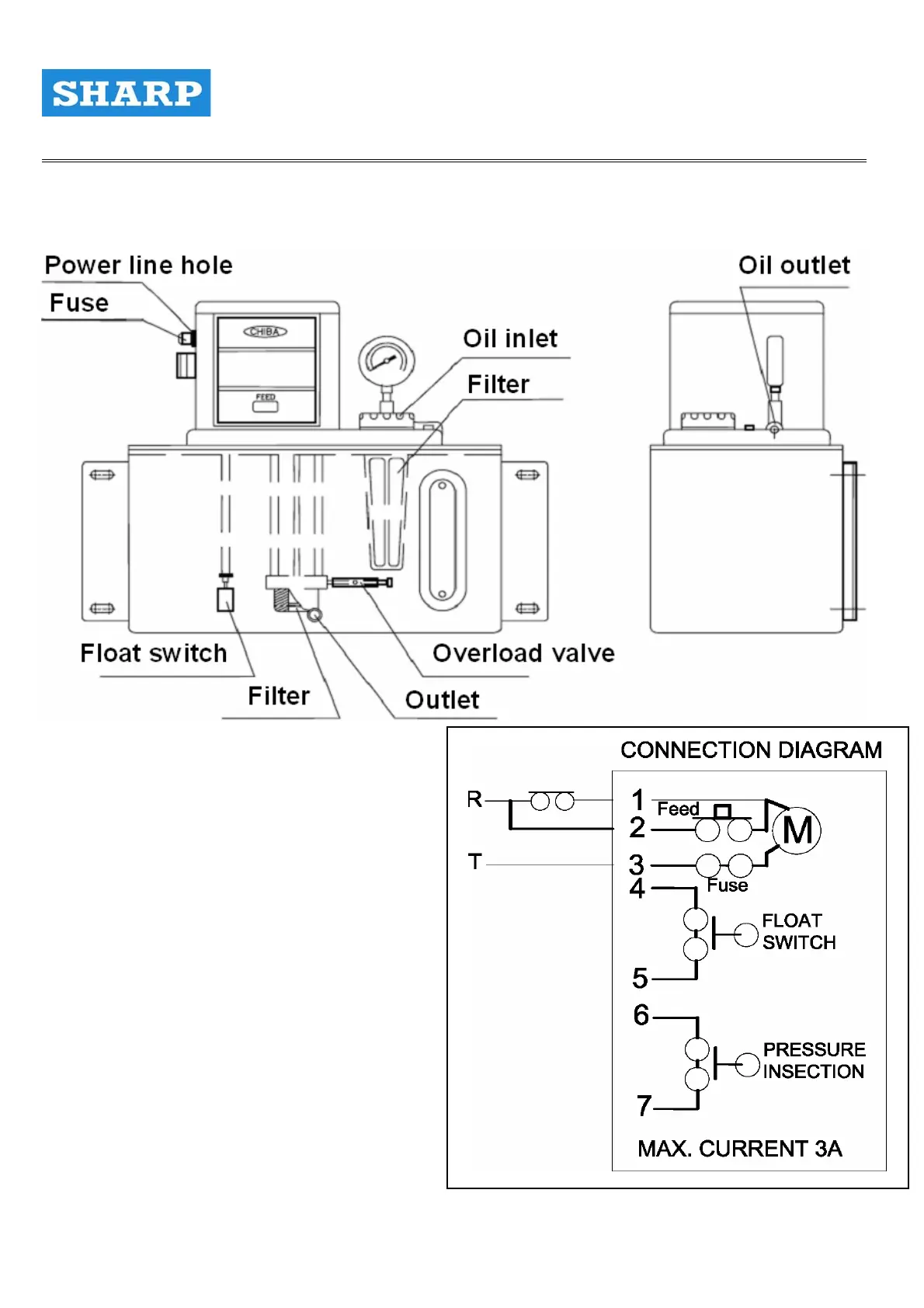

4-1 Centralized Lubrication System Diagram
1) Components of the lubrication oil pump
( a ) Flow rate：300cc / min
( b ) Voltage：220V ( 50 / 60 HZ )
( c ) Power：150W( d ) Maximum output pressure：15kg/cm²
( e ) Oil tank capacity：6L
Connections：
1、3：Electric source
2、3：Manual oil injection
4、5：Floating switch
6、7：Pressure in section
To Next Page
