PRECISION MACHINE TOOLS Ver 2 Maintenance Manual

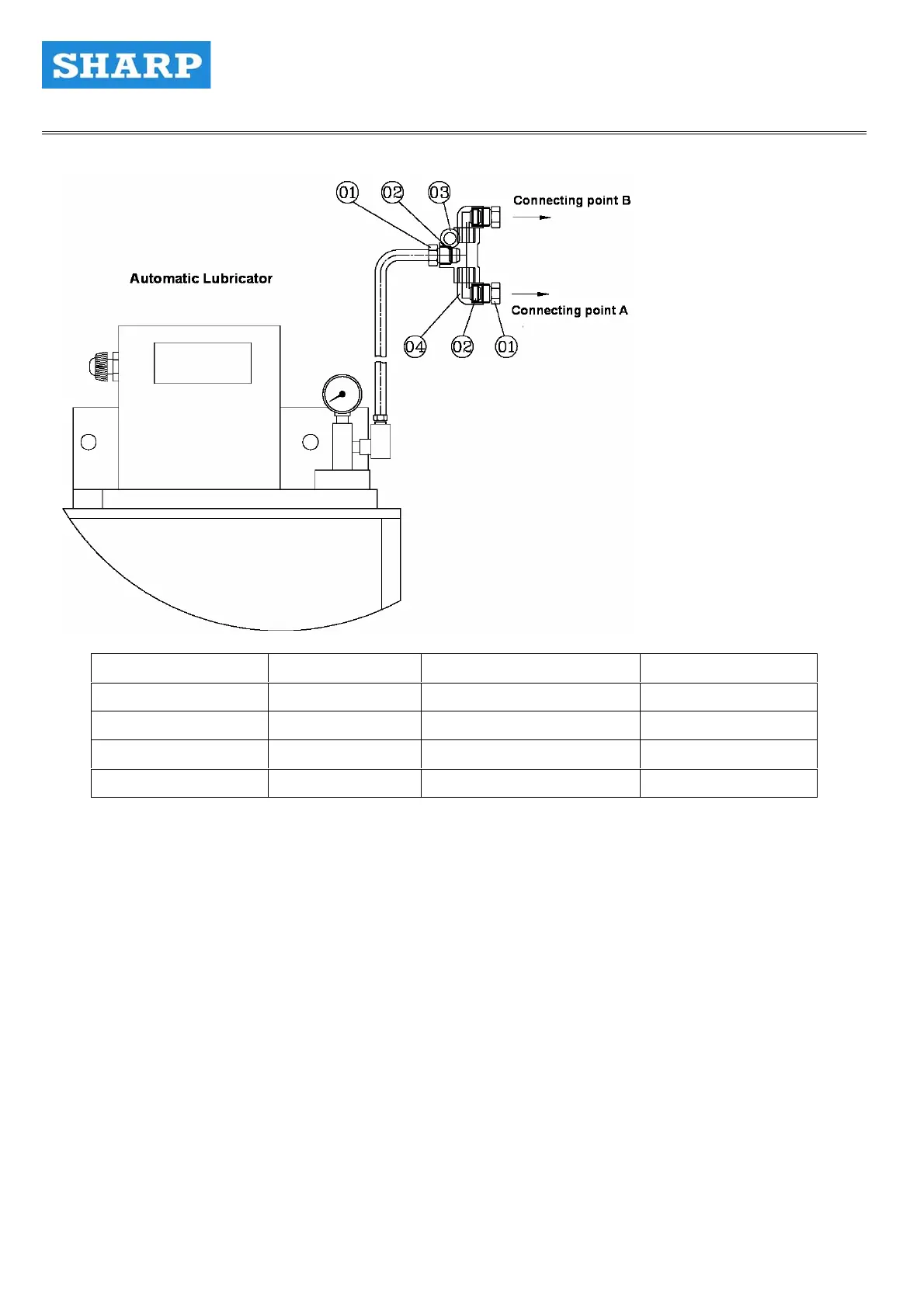

2) Lubrication System Diagram
caution：
1) Value of the input source current has to be the same as the one on the plague.
2) The wiring has to follow the instructions on the plaque to avoid damaging the oil pump.
3) Ground the ground wire.
4) A filter is installed on the inlet of the oil tank. Do not contaminate the manifold block
components.
5) Wash the filter whenever it is contaminated to maintain its function.
6) Do not drop oil, water or other onto the control circuit, or the control circuit may be
damaged.
7) Pay attention to the oil level when filling up the oil.
Number Model Name Quantity
1. PA6 Pipe cape 3
2. PB6 Pipe 3
3. PKD6 3-way pipe 1
4. PH601 Right angle connector 2
