PRECISION MACHINE TOOLS Ver 2 Maintenance Manual


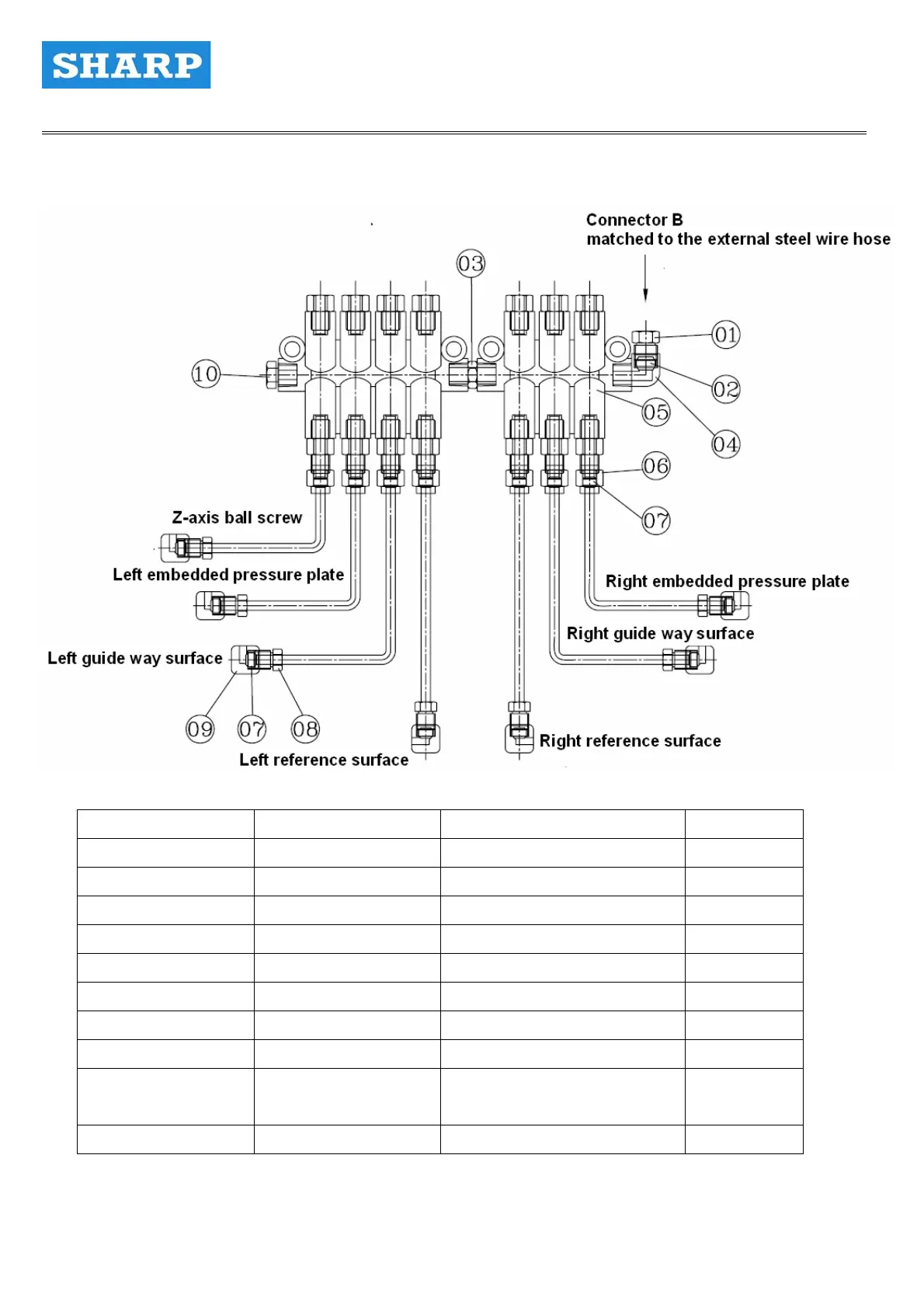

SPINDLE HEAD UNIT


Number Model Name Quantity
1. PA6 Pipe cape 1
2. PB6 Pipe 1
3. PQ101 Connector 1
4. PH601 Straight angle connector 1
5. HBL-3 Volume-based distributor 1
6. PAN4 nut 7
7. PB4 Pipe 14
8. PA4 Pipe cape 7
9. PH4-1 Straight angle flat
connector
7
10. PG01 Sealing plug 1

