PRECISION MACHINE TOOLS Ver 2 Maintenance Manual

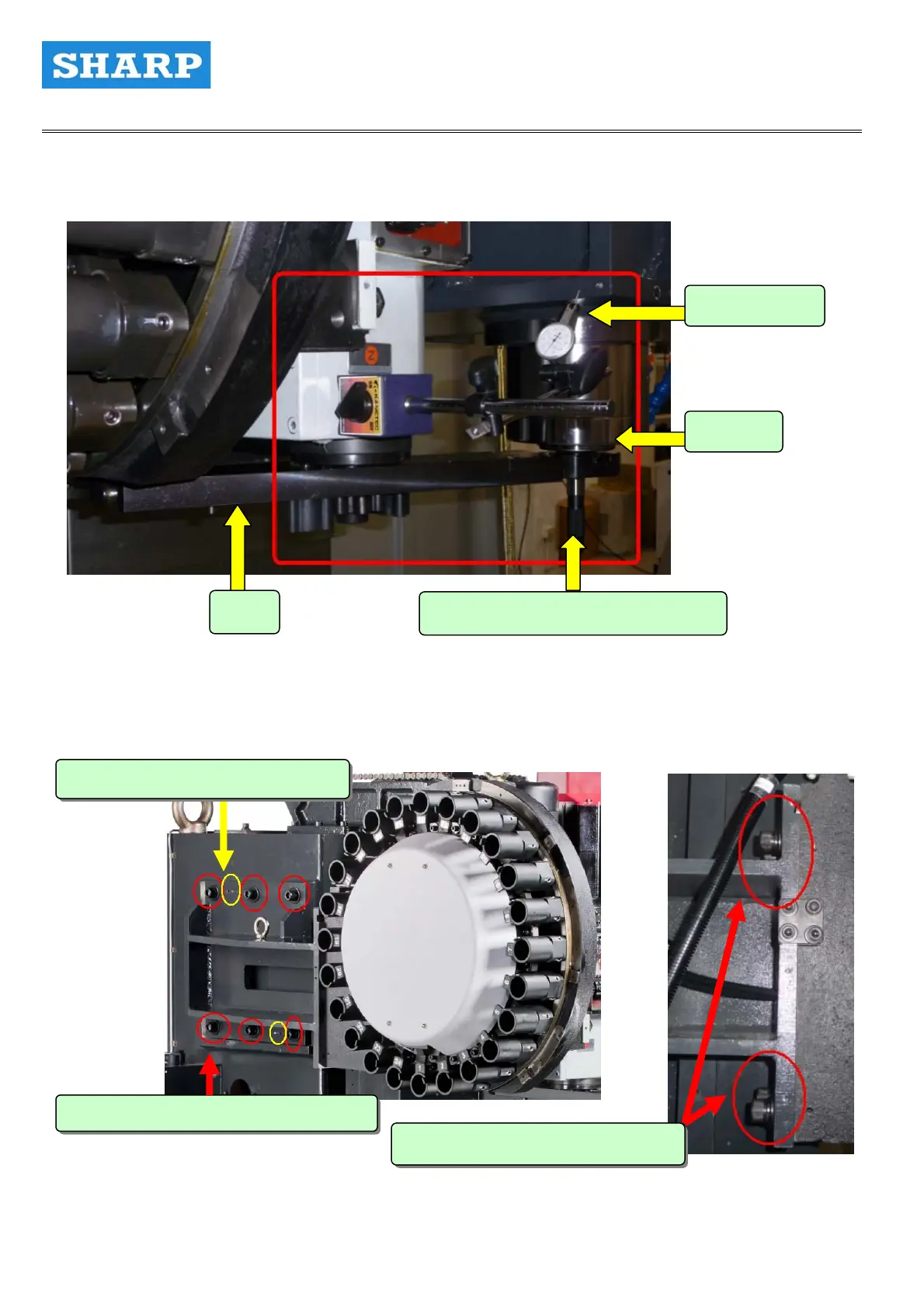

3) Take out a modular concentricity test gauge and a dial indicator. Separate the three sections and
place them on the inner hole of the spindle and gripper.
4) Use the dial indicator to measure the position of the arm of the cutter.
The X-axis deviation should not exceed 0.1mm.
5) Fasten the screws (circled by a red line) according to the ISO standard.
6) Hammer the tool magazine into the fixing pin (circled by a yellow line
Dial indicator
Arm
Modular concentricity test gauge
Gripper
Fixing screw for the tool magazine
Fixing pin for the tool magazine
Fixing screw for the tool magazine
