PRECISION MACHINE TOOLS Ver 2 Maintenance Manual
7-3 Determination of the Z-Axis Coordinate Origin

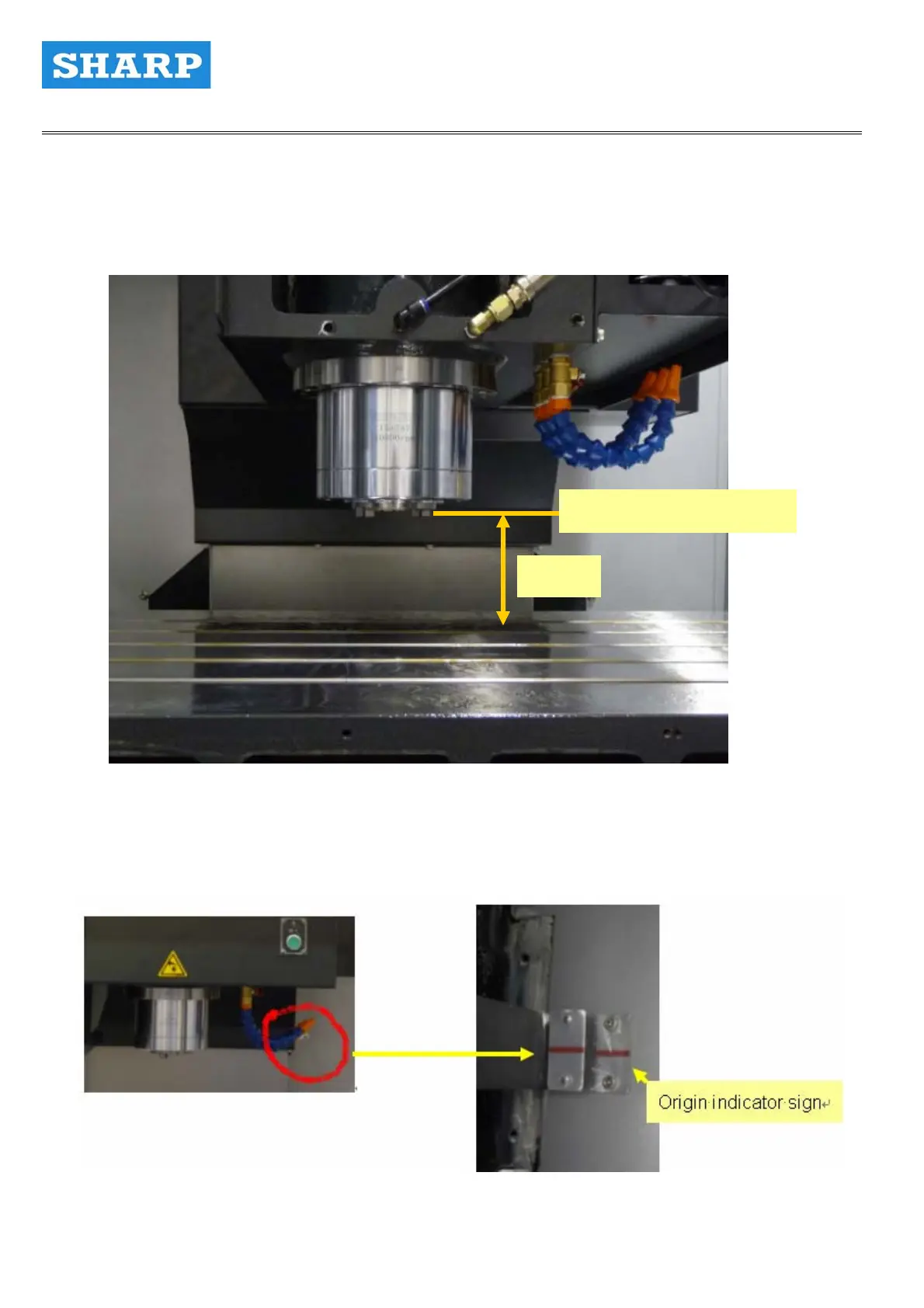

Shift the Z-axis from the nose end of the spindle to a position that is 130mm above the workbench.
See the figure below.




















2.
1) Treat this position as the origin. Zero the value corresponded to the Z-axis on the screen.
2) Shift the Z-axis to a position where the corresponding position on the screen is
740mm.

Nose end of the spindle
130mm
