Sharp TE-T56U - Parts and Handling; Control Panel

Power-supply cord
Tea pouring lever
Tea pouring port
Cup Tray
Saucer
Control panel
Main Unit
Press to select your mode.
(Hot, Warm, Latte)
Press the STOP button to
cancel any mistakes made
during programming, or to stop
an operation. Also press when
turning the Tea maker off.
Press to start an operation.
To pause, press again during
the operation.
Water boiling indicator
Flashes while water is boiling.
Tea container
Tea mortar
Water reservoir
Air filter
(Air intake openings)
LOCK
UNLOCK
Press to select
the quantity of
tea leaves for
grinding.
Mode lamp
Indicates your selected
mode (Hot, Warm, Latte)
Quantity lamp
Indicates the total amount
of tea leaves for grinding.

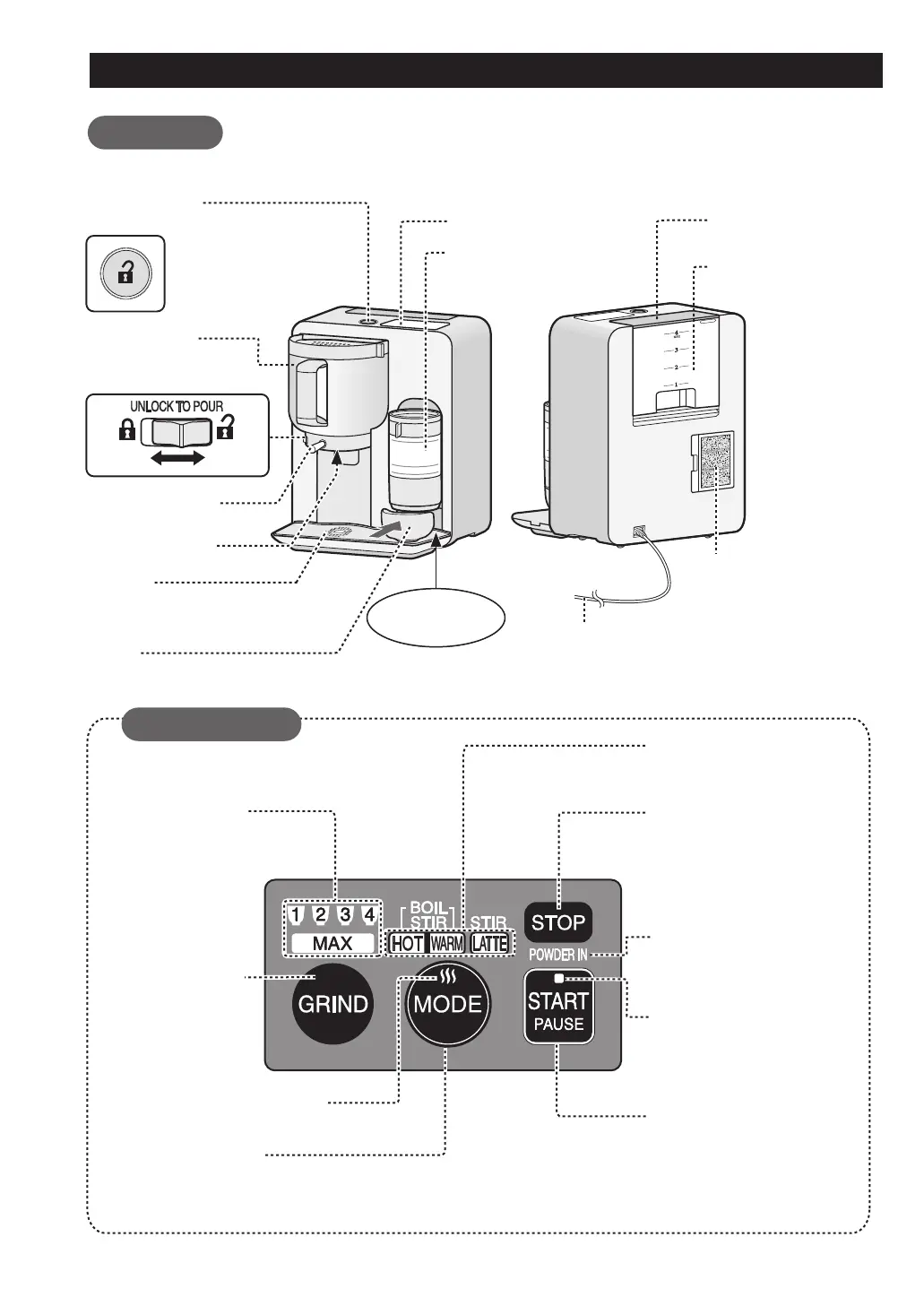

PARTS AND HANDLING
FRONT VIEW
Tea container
removal button
Tea pouring lever lock
(See page E-5)
Flashes when powdered tea
should be added.
Flashes when ready.
Remains lit while operating.
Lid
BACK VIEW
E-3
(container*)
GRIND button
(A Drip Tray sits under the Cup Tray)
MODE button
STOP button
POWDER IN indicator
START/PAUSE button
START indicator
Control Panel
Set the
saucer here.
* The operation manual will refer to the tea container as 'container' for short.
WATER ONLY
