Sharp VC-GH61SM - Page 61

117
1 2 3 4 5 6 7 8 9 10
A
B
C
D
E
F
G
H
I
J
VC-GH61GM/SM,GH611GM
VC-GH60SM,GH600SM,GH601SM
VC-FH310GM/SM
9. SCHEMATIC DIAGRAM AND PWB FOIL PATTERN /
SCHALTSCHEMA UND PLATINENMUSTER

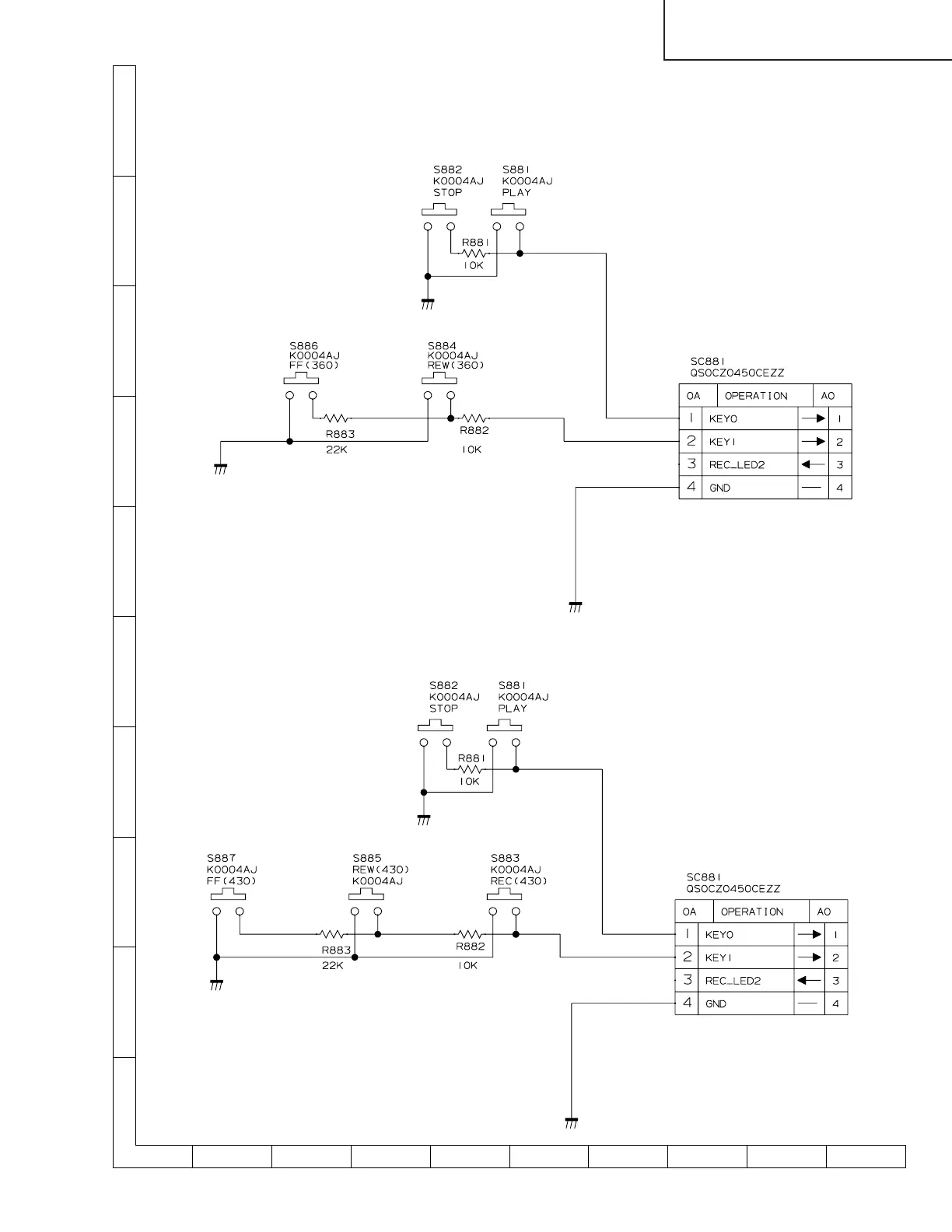

OPERATION CIRCUIT / BEDIENUNGSSCHALTUNG
(VC-GH61GM/SM,GH611GM/SM)
(VC-FH310GM/SM)
