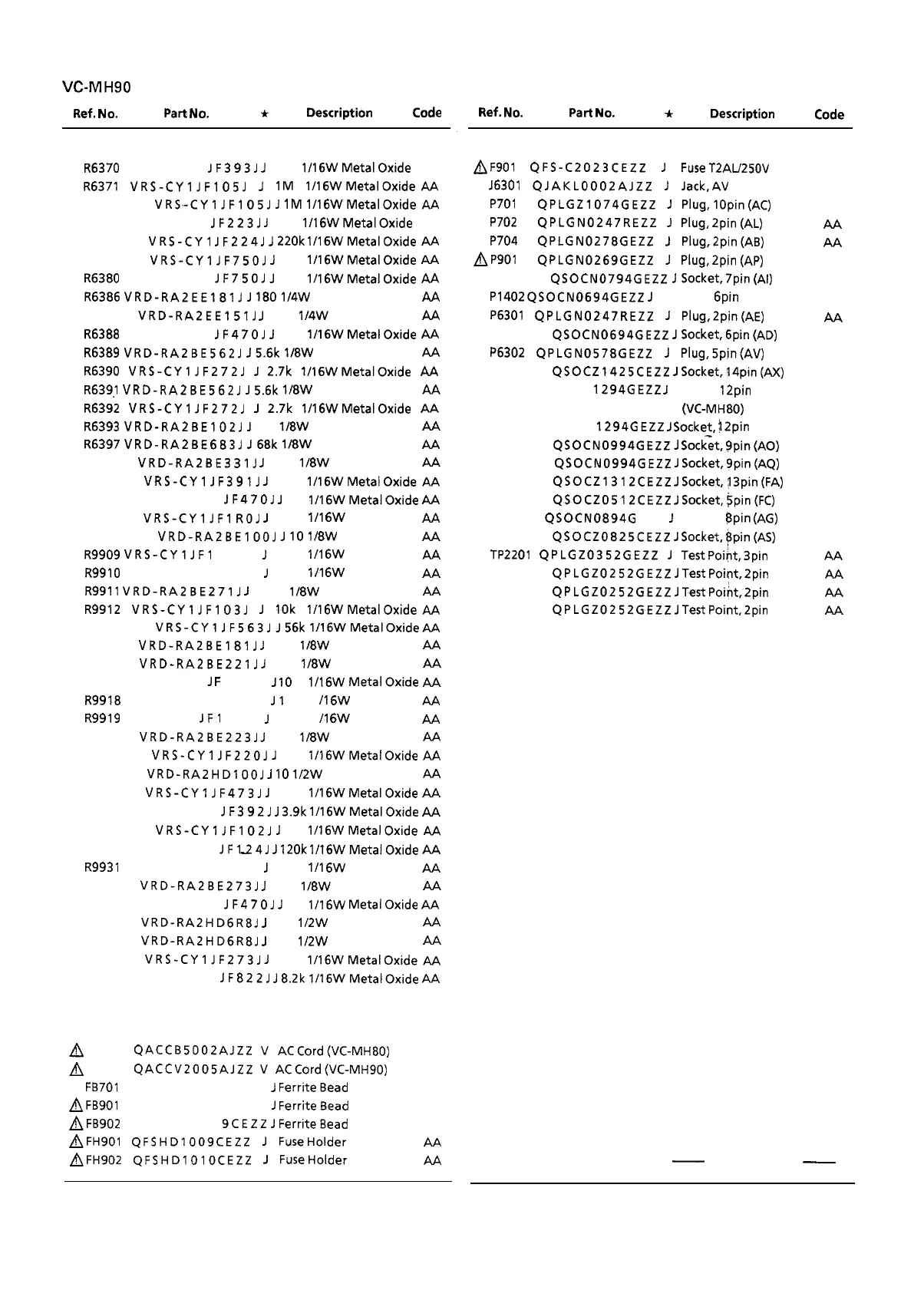

Sharp VC-MH80 - Mechanical, Housing, and Miscellaneous Parts

VC-MH80
VC-MH90
Ref. No. Part No.
*
Description
RESISTORS (Continued)
Code
R6370 VRS-CY 1 JF393J J 39k 1/16WMetalOxide AA
R6371 VRS-CYlJFl05J J IM 1/16WMetalOxideAA
R6372 VRS-CYlJFl05J J IM 1/16WMetalOxideAA
R6373 VRS-CYI JF223J J 22k 1/16WMetalOxide AA
R6378 VRS-CYl JF224J J 220k1/16WMetalOxide M
R6379 VRS-CYlJF75OJ J 75 1/16WMetalOxide M
R6380 VRS-CYI JF75OJ J 75 1116WMetalOxide M
R6386 VRD-RAZEE181J J 180 1/4W Carbon
M
R6387 VRD-RA2EE151J J 150 1/4W Carbon
M
R6388 VRS-CYI JF47OJ J 47 1/16WMetalOxide M
R6389 VRD-RAZBE562J J 5.6k 1/8W Carbon
M
R6390 VRS-CYlJF272J J 2.7k 1/16WMetalOxide M
R639,l VRD-RAZBE562J J 5.6k 1/8W Carbon M
R6392 VRS-CYlJF272J J 2.7k 1/16WMetalOxide M
R6393 VRD-RAZBElOZJ J Ik 1/8W Carbon
M
R6397 VRD-RA2BE683J J 68k l/SW Carbon M
R9902 VRD-RAZBE331J J 330 1/8W Carbon
M
R9903 VRS-CYlJF391J J 390 1/16WMetalOxideM
R9904 VRS-CY 1 JF47OJ J 47 1116WMetalOxide M
R9906 VRS-CYlJFlROJ J 1
l/l 6W Metal Oxide M
R9907 VRD-RA2BElOOJ J 10 1/8W Carbon M
R9909 VRS-CYlJFl ROJ J 1 l/l 6W Metal Oxide M
R9910 VRS-CYIJFIROJ J 1
l/l 6W Metal Oxide M
R9911 VRD-RAZBE271J J 270 1/8W Carbon
M
R9912 VRS-CYlJF103J J IOk 1116WMetalOxideM
R9913 VRS-CYlJF563J J 56k 1/16WMetalOxideM
R9914 VRD-RAZBE181J J 180 1/8W Carbon
M
R9915 VRD-RAZBEZZIJ J 220 1/8W Carbon
M
R9916 VRS-CY 1 J F 1 OOJ J IO
1/16W MetalOxide M
R9918 VRS-CYIJFIROJ J 1 1 /I 6W Metal Oxide M
R9919 VRS-CYI JFI ROJ J 1 1 I1 6W Metal Oxide M
R9920 VRD-RA2BE223J J 22k 1/8W Carbon
M
R9921 VRS-CYIJFZZOJ J 22 1/16WMetalOxide M
R9922 VRD-RAZHDIOOJ J 10 1/2W Carbon
M
R9924 VRS-CYlJF473J J 47k 1/16WMetalOxide M
R9925 VRS-CY 1 JF392J J 3.9k 1116WMetalOxide M
R9926 VRS-CYIJFIOZJ J Ik 1116WMetalOxideM
R9930 VRS-CY 1 JF124J J 120k1/l6WMetalOxide M
R9931 VRS-CYIJFIROJ J 1
l/l 6W Metal Oxide M
R9932 VRD-RAZBE273J J 27k 1/8W Carbon
M
R9933 VRS-CY 1 JF47OJ J 47 1/16W MetalOxide M
R9934 VRD-RAZHD6R8J J 6.8 1/2W Carbon
M
R9935 VRD-RAZHD6R8J J 6.8 1/2W Carbon
M
R9938 VRS-CYlJF273J J 27k 1/16WMetalOxideM
R9939 VRS-CYI JF822J J 8.2k 1116WMetalOxide M
MISCELLANEOUS PARTS
;
QACCB5002AJZZ V ACCord(VC-MHBO)
QACCV2005AJZZ V ACCord(VC-MH90) AM
FB701 RBLN-0043CEZZ J FerriteBead
AB
AFB901 RBLN-0019CEZZ J FerriteBead
AB
nFB902 RBLN-001 9CEZZ J FerriteBead
AB
nFH901 QFSHD1009CEZZ J FuseHolder
M
AFH902 QFSHDlOlOCEZZ J FuseHolder
M
Ref. No.
Part No. *
Description
Code
MISCELLANEOUS PARTS (Continued)
AF901 QFS-C2023CEZZ J FuseTZAU250V
J6301 QJAKL0002AJZZ J Jack,AV
P701
QPLGZl074GEZZ J Plug,lOpin(AC)
P702
QPLGN0247REZZ J Plug,Zpin(AL)
P704
QPLGN0278GEZZ J Plug,Zpin(AB)
AP901
QPLGN0269GEZZ J Plug,Zpin(AP)
PI401 QSOCN0794GEZZ J Socket,7pin(Al)
P1402 QSOCN0694GEZZ J Socket, Gpin (AJ)
P6301 QPLGN0247REZZ J Plug,Zpin(AE)
SC701 QSOCN0694GEZZ J Socket,tjpin(AD)
P6302 QPLGN0578GEZZ J Plug,5pin(AV)
SC201 QSOCZl425CEZZ J Socket,l4pin(A)o
SC501 QSOCN 1294GEZZ J Socket, 12pin (AZ)
(VC-MH80)
SC702 QSOCN 1294GEZZ J Socke_t, j2pin (AT)
SC1402 QSOCN0994GEZZ J Socket,9pin(AO)
SC1405 QSOCN0994GEZZ J Socket,gpin(AQ)
SC1410 QSOCZ1312CEZZ J Socket,l3pin(FA)
SC1411 QSOCZO512CEZZ J Socket,$pin(FC)
SC6301 QSOCN0894G EZZ J Socket, 8pin (AG)
SC6302 QSOCZ0825CEZZ J Socket,$pin(AS)
TP2201 QPLGZ0352GEZZ J TestPo&,3pin
TP2204 QPLGZ0252GEZZ J TestPoint,Zpin
TP6301 QPLGZ0252GEZZ J TestPoi&,Zpin
TP6303 QPLGZ0252GEZZ J TestPoint,Zpin
AD
AN
AC
M
M
A8
AB
A8
M
AB
A8
AD
AC
AC
AC
AC
AD
AB
AC
AD
M
M
M
M
- End of Main -
