OPERATOR’S MANUAL
P 14 / 57
a. Refer to Step a to e on motor dismantling.
b. Refer to Step b to g on replacement of speed change belt to dismantle the upper belt
housing.
c. Remove the spindle pulley off.

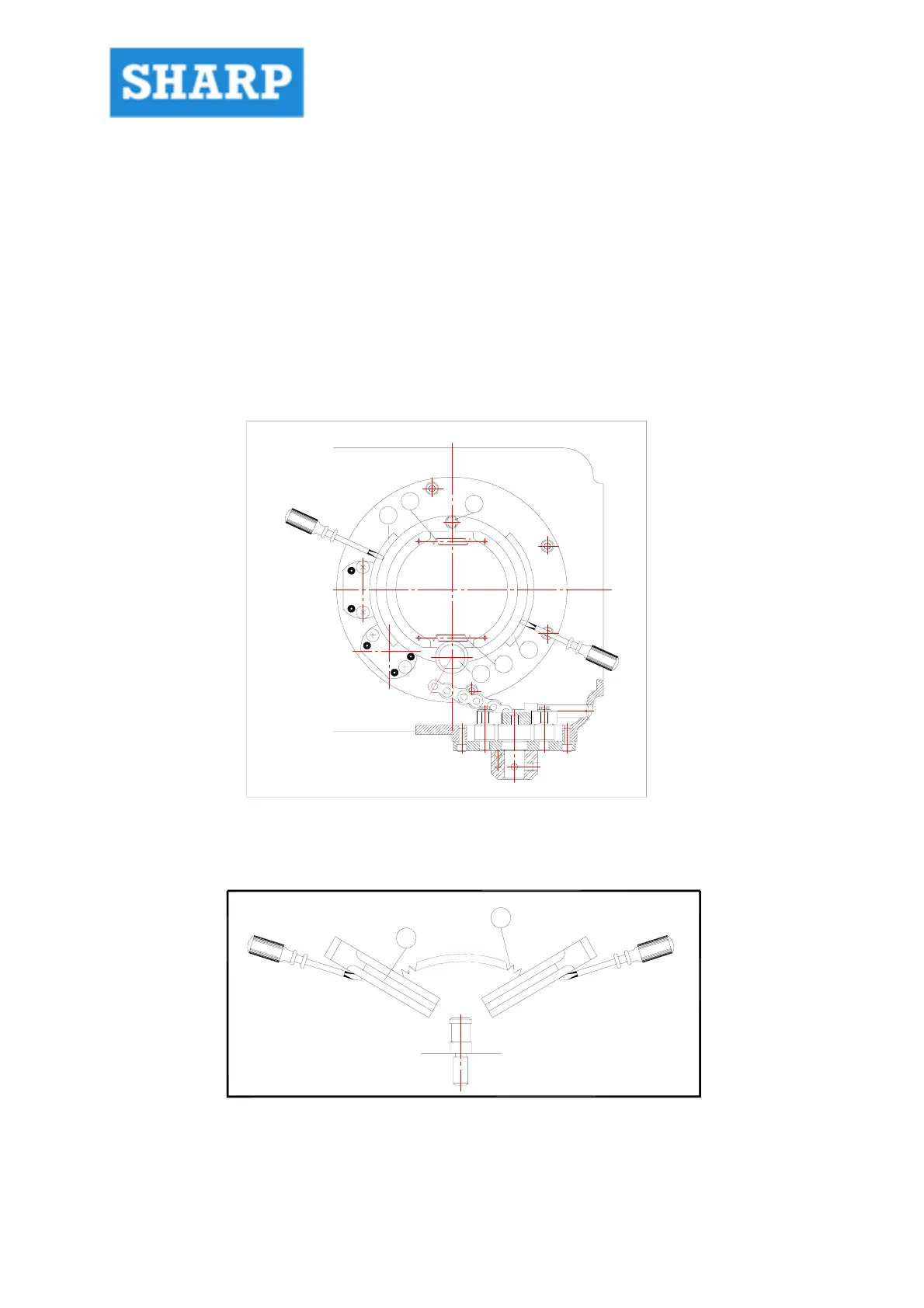

d. Use flat head screw driver to kick-off the two half piece of brake shoe ( A ).
e. Remove the two springs ( B ).
f. Press the assembled brake shoe to rear support pin ( C ) first, then to the front cam
( D ).
g. For new brake shoe, some adjustment is required.
Fig.11
Fig.12
A
D
B
C
B
A
A
B
