OPERATOR’S MANUAL
P 28 / 57
B、 Machine Lubrication :
a. Horizontal spindle, spindle bearing, and horizontal milling cutter arbor sleeve :
( 20VHS, 20VHA )
Lubrication of horizontal spindle drive gear and gear housing is of dipping and aplashing.
The horizontal spindle bearing lubrication adopts the forced automatic one.
The milling cutter arbor sleeve is lubricated by oil dripping.
Table gib surface and feed leadscrew are lubricated by the central forced type.

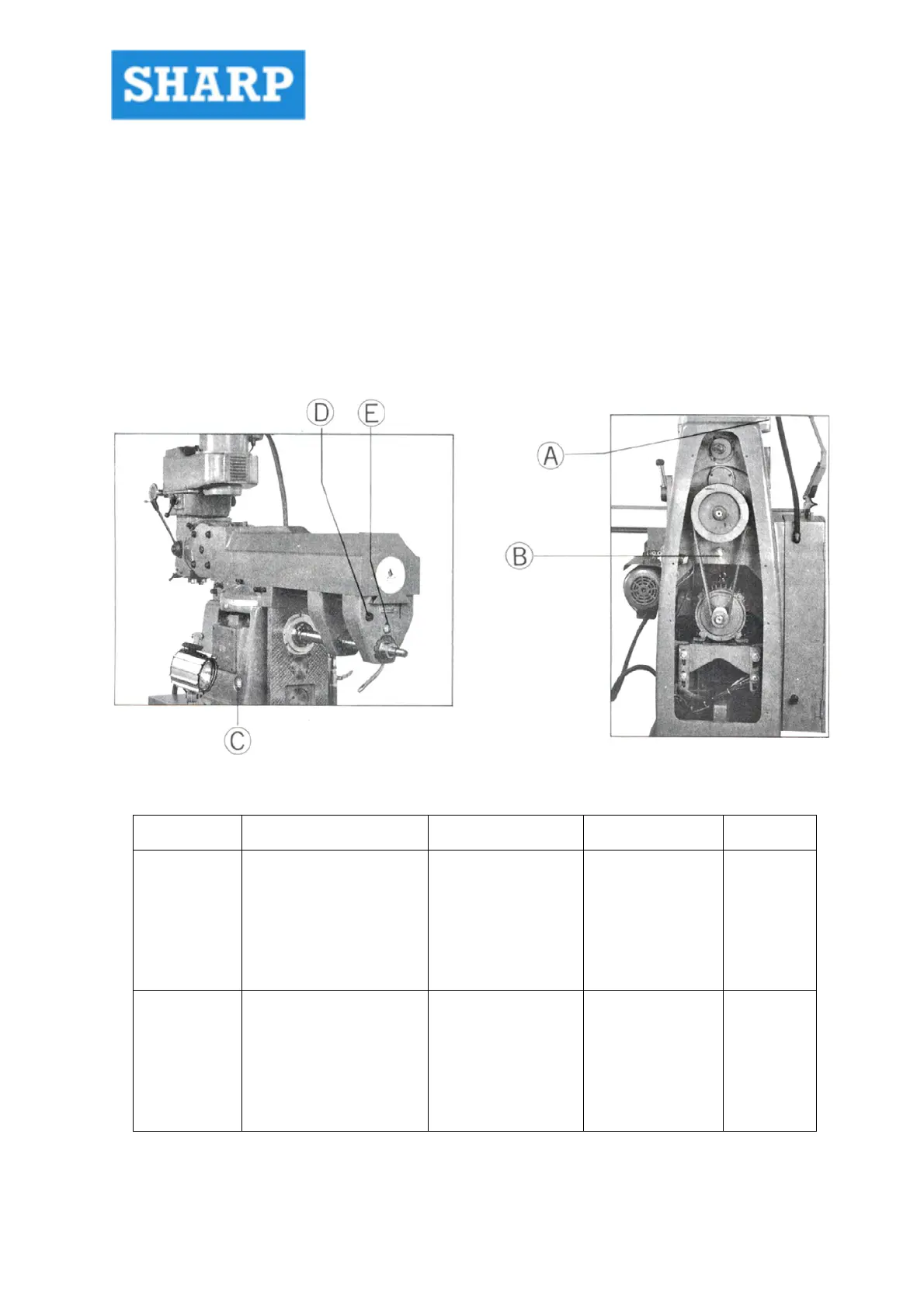

Fig.30
Position Lubricated Parts Lubricant Frequency Q’ty
( A ) Inlet
( B ) Outlet
Horizontal Spindle,
Drive Gear & Taper
Roller Bearings
KUO KUANG R-68
ESSO FBIS K53
DTE 26
GULF WAY
HARMONY
First oil change at
3 months after
installation. Than,
every other 6
months
Filled up to
between H-L
in oil window
(C)
( D ) Inlet
Horizontal
Milling cutter
Arbor sleeve
KUO KUANG R-68
GULF WAY
GREASE NO.2
SHELL TONNA 33
ESSO FBIS K-53
Check oil lever
through ( E )
ewwkly
To Next Page
