OPERATOR’S MANUAL
P 21 / 57

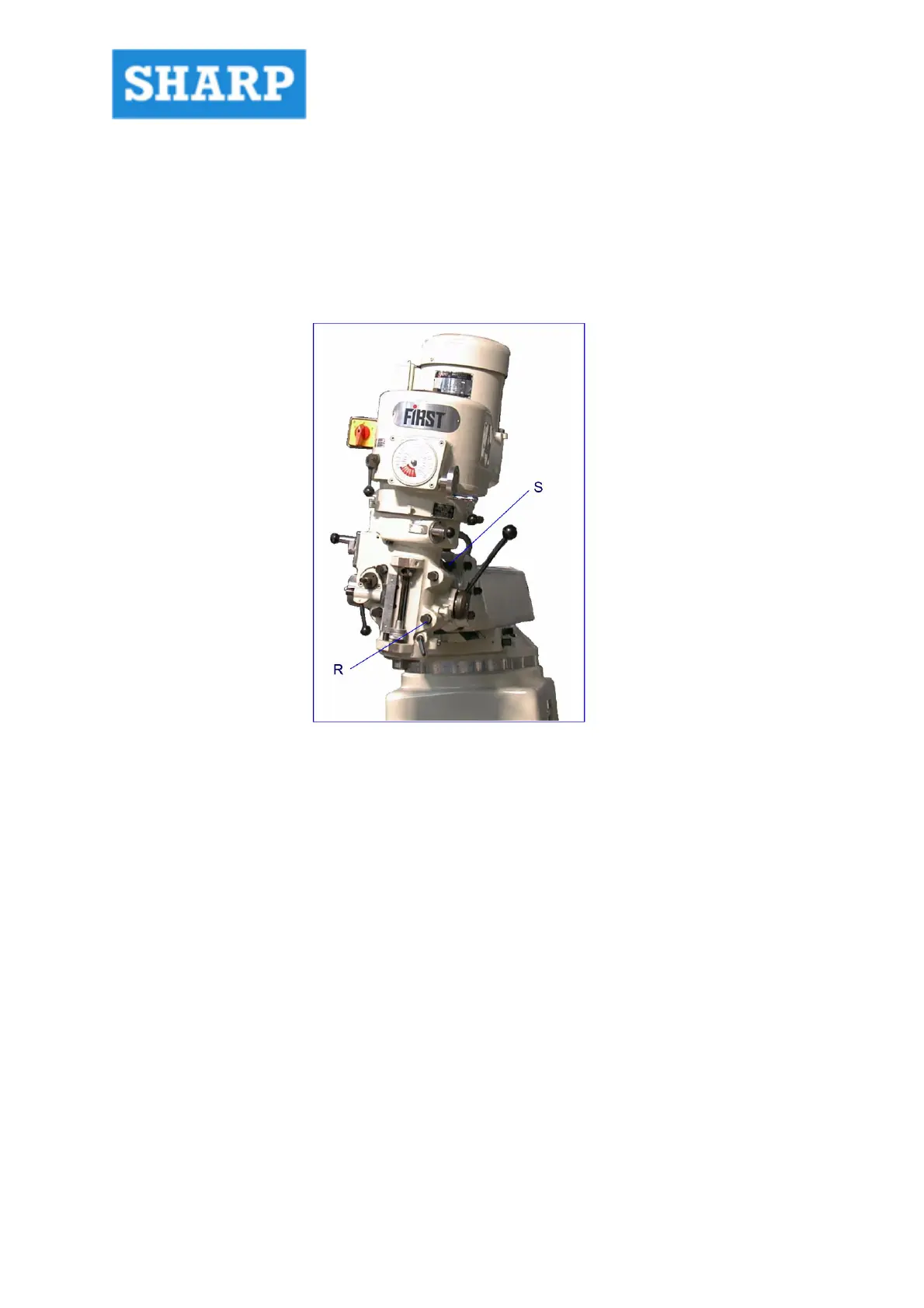

(2) Cross Tilting
Loosen evenly the four lock nuts ( R ) and turn the worm shaft ( S ) until the desired
angle is secured. Then lock up the lock nuts ( R ) everly.
Note : Do not loosen the lock nuts ( R ) totally during the adjustment.
Fig.21
