OPERATOR’S MANUAL
P 48 / 57

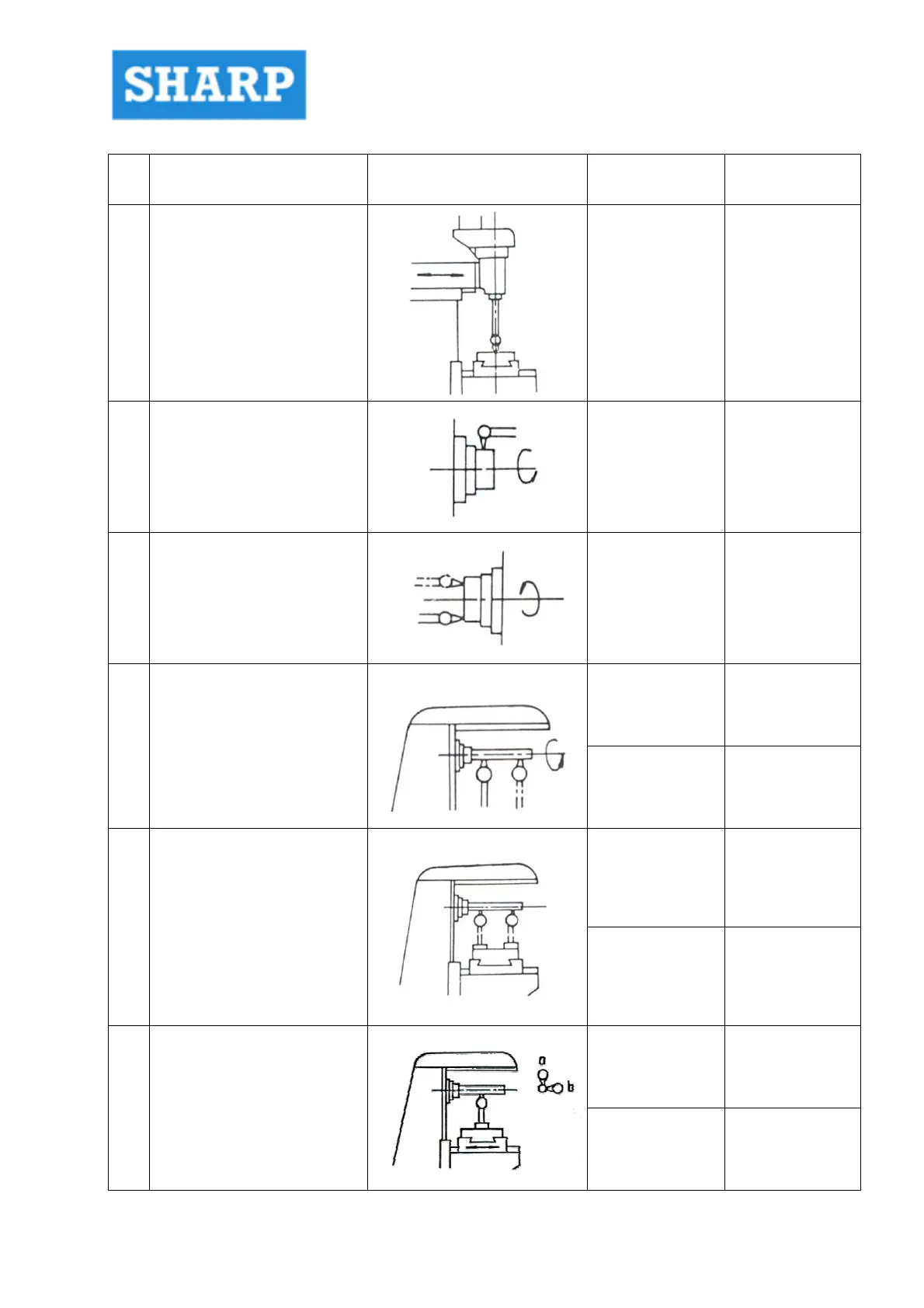

NO. INSPECTION ITEMS ILLUSTRATUION
TOLERANCE
mm
Measured
mm
12
OVERARM SLIDE
PARALLELISM OF CROSS
MOVEMENT WITH TABLE
TOP
0.02
13
HORIZONTAL SPINDLE
FACE RUN OUT
0.01
14
HORIZONTAL SPINDLE
FACE TRUE
0.015
15
HORIZONTAL SPINDLE
HOLE RUN OUT
AT FACE OF SPINDLE
AT END OF 300mm TEST
BAR
0.01
0.02
16
PARALLELISM OF TABLE
TOP WITH HORIZONTAL
SPINDLE
(HIGH AT FRONT OF
TABLE)
0.01
0.02
17
TABLE TOP PARALLELISM
OF CROSS MOVEMENT
WITH HORIZONTAL
SPINDLE
IN VERTICAL IN
HORIZONTAL
0.02/300
0.02/300
