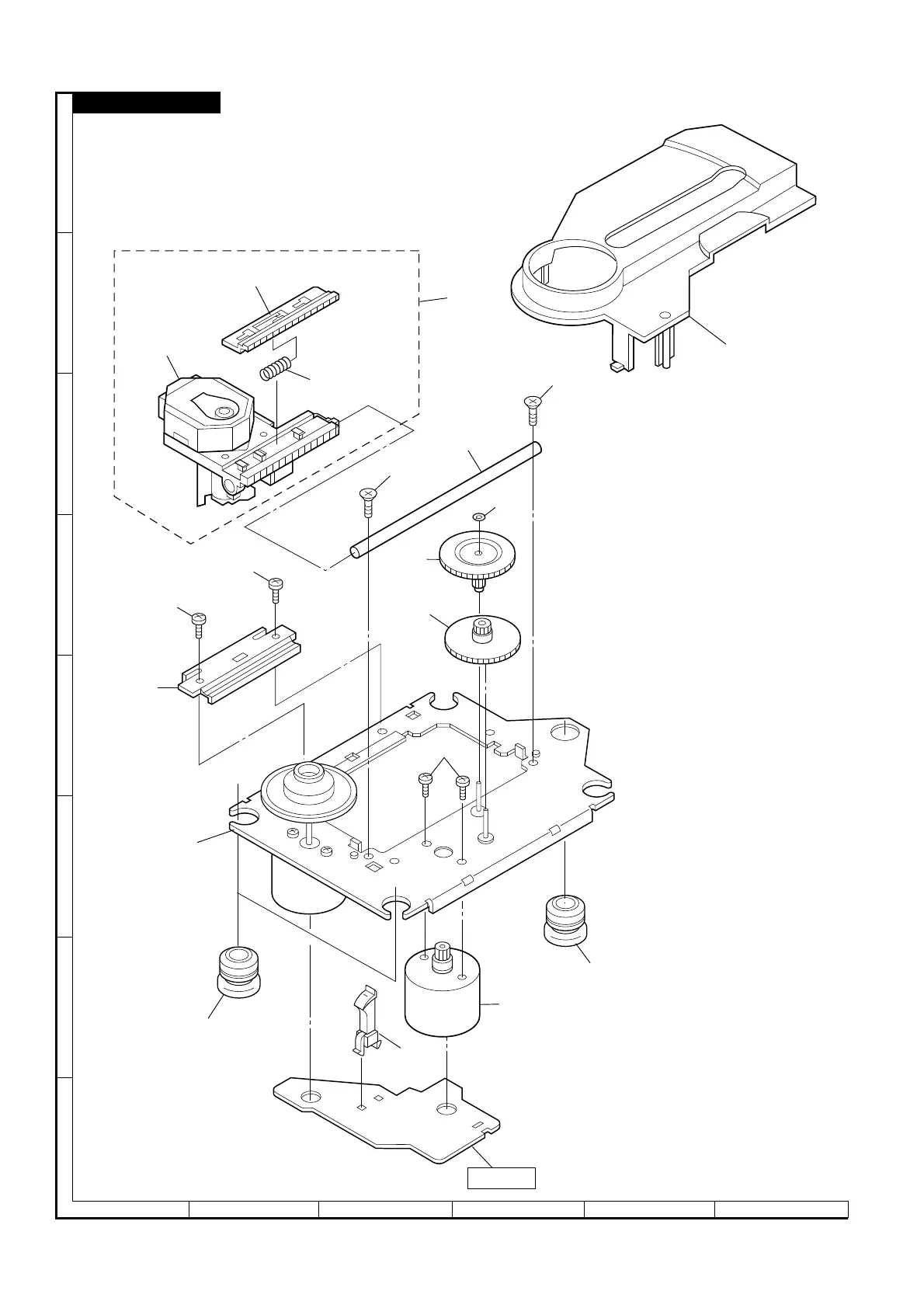

Figure 7 CD MECHANISM EXPLODED VIEW
– 7 –
XL-520H/520E
306-1
701
304
701
302
301
702
702
303
M802
703
305x2
SW801
M801
305
PWB-D
306-2
306-3
306
704
307
