Sharp YO-250M - Page 3

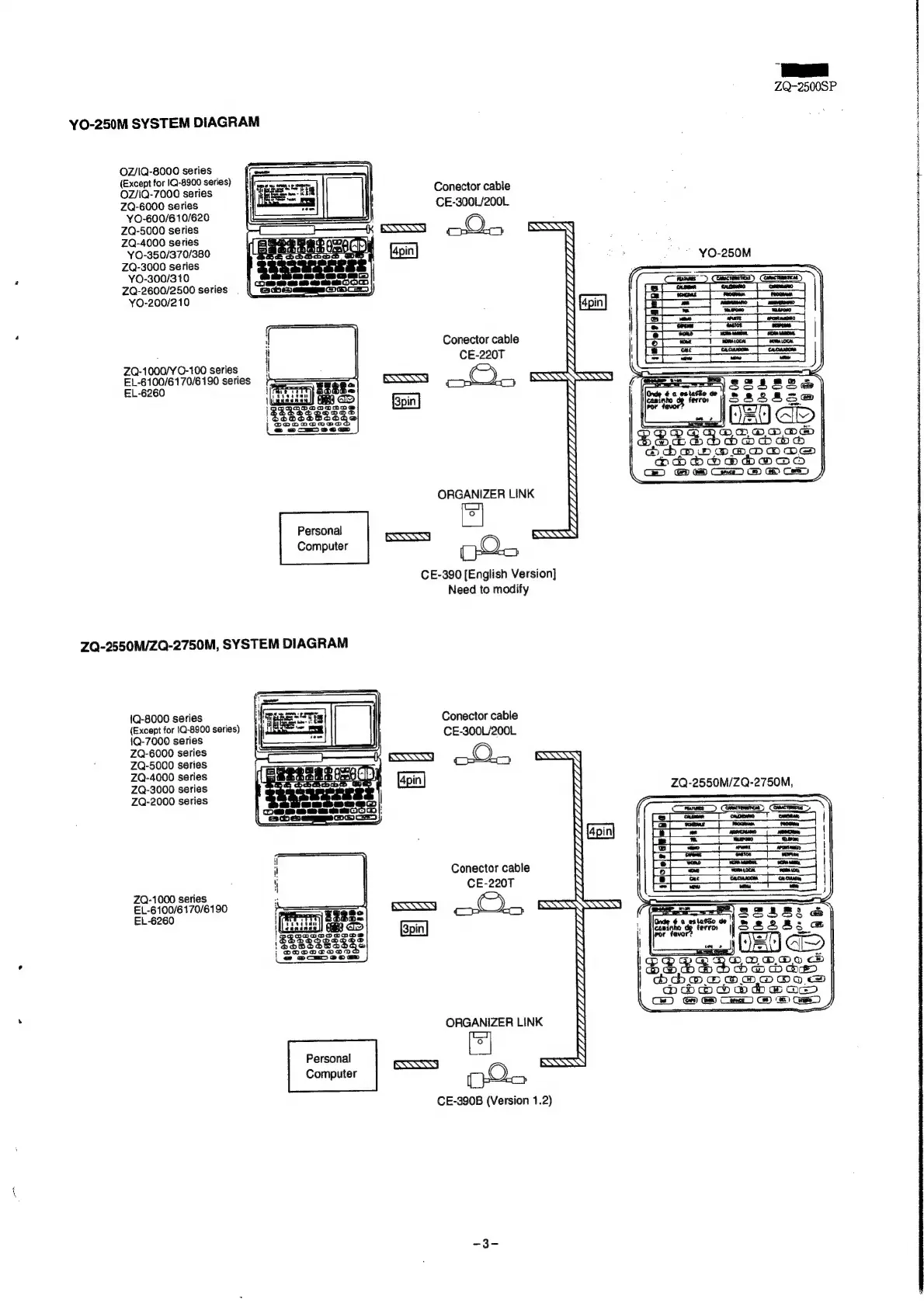

YO-250M
SYSTEM
DIAGRAM
OZ/IQ-8000 series
(Except for 1Q-8900 series)
OZ/IQ-7000 series
ZQ-6000 series
YO-600/610/620
ZQ-5000 series
ZQ-4000 series
YO-350/370/380
ZQ-3000 series
YO-300/310
ZQ-2600/2500 series
YO-200/210
ZQ-1000/Y 0-100 series
EL-6100/6170/6190 series
EL-6260
Personal
Computer
ZQ-2550M/ZQ-2750M,
SYSTEM
DIAGRAM
1Q-8000 series
(Except for 1Q-8900 series)
1Q-7000 series
ZQ-6000 series
ZQ-5000 series
ZQ-4000 series
ZQ-3000 series
ZQ-2000 series
ZQ-1000 series
EL-6100/6170/6190
EL-6260
Personal
Computer
Conector cable
CE-300L/200L
Conector cable
CE-220T
ORGANIZER LINK
pQ.5
CE-390 [English Version]
Need to modify
Conector cable
CE-300L/200L
Conector cable
ORGANIZER LINK
O
CE-3908B (Version 1.2)
ami
ZQ-2500SP
~ YO-250M
ZQ-2550M/ZQ-2750M,
