Chapter 6 inverter of function parameter
No. Code
Describing LED/OLED
Keyboard display
Setting range
Change
Set the transient time at zero frequency of the output during the forward and reverse rotation of AC
frequency vector inverter. It is shown as chart 6-5:

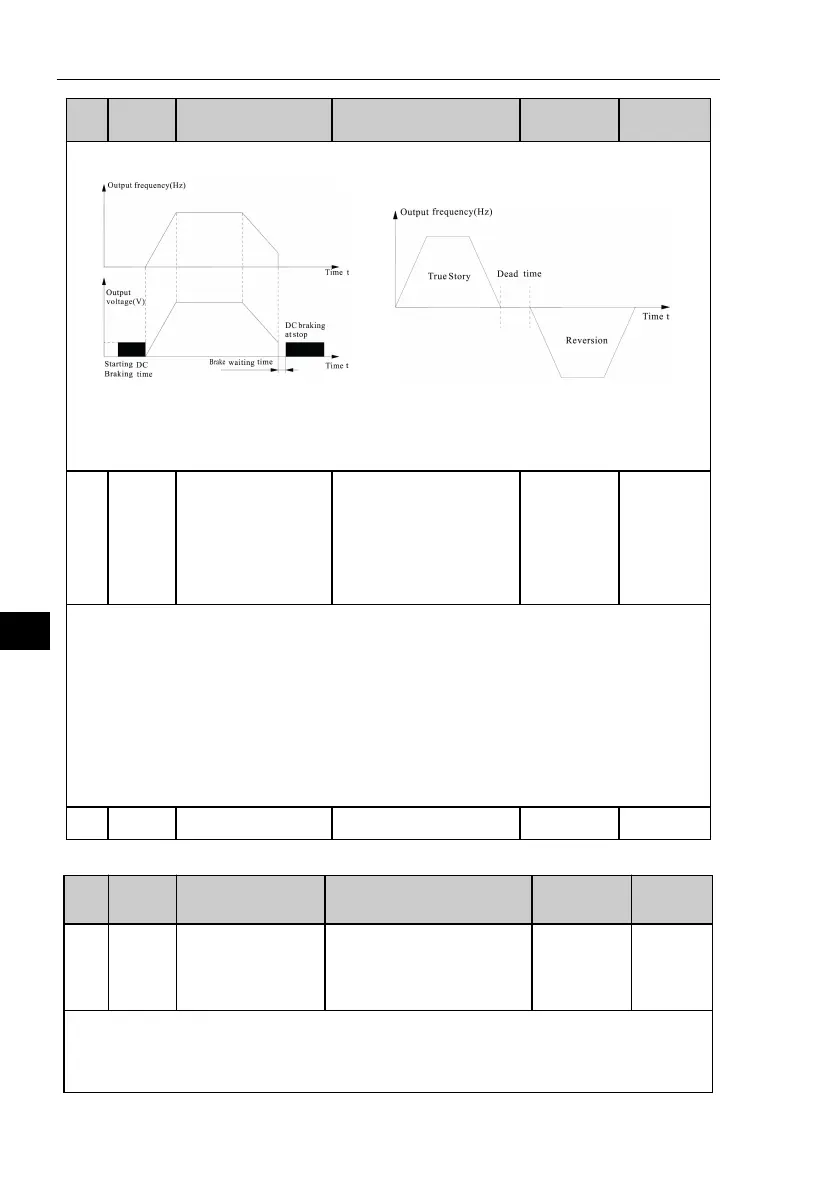

Chart 6-4 sketch map of DC braking Chart 6-5 Sketch map for dead time of forward and
reverse rotation
P02.11
Selection for the
protection of terminal
with electricity
0: Run command of the
terminal is invalid when it is
electrified
1: Run command of the
terminal is valid when it is
electrified
◇
When the channel of operation inverter is the terminal control, the system will automatically detect the
state of the running terminal during the electrifying process of AC frequency vector inverter.
0: Run command of the terminal is invalid when it is electrified. AC frequency vector inverter
won’t operate even if it detects the command terminal is valid during the electrifying process of AC
frequency vector inverter; and the system will be at a state of running protection; and AC frequency
vector inverter will operate only after this terminal of run command is canceled and then use this
terminal.
1: Run command of the terminal is valid when it is electrified. Namely, using the electrifying process of
AC frequency vector inverter, if it detects the command terminal is valid, the system will automatically
start the operation of AC frequency vector inverter after the initialization.
Notice: the user must choose this function carefully because it may cause serious consequence.
P02.12 Reservation ◇
6-2-4.P03 group motor parameter group
No. Code
Describing LED/OLED
Keyboard display
Setting range
Change
P03.00
Type of AC frequency
vector inverter
0:G type（load type of constant
torque）
1:P type ( load type of fan and
pump)
□
0: It is applied to the load of constant torque with assigned rated parameter
1: It is applied to the load of variable torque with assigned rated parameter.
Notice: the user can set the parameters in this group for changing the type and realizing the integration of
G/P. AC frequency vector inverter with 220V is only for G type.
