8. Press the wire in the groove of the drive roller.
9. Remove from the handle end of the current, to power equipment and QUICK FEED button (17) located within the chamber and enter the wire
spool holder.
10. When you see the electrode wire in the outlet handle release button and screw the current.
5.4 PREPARATION FOR WORK MIG
Depending on the type of material being welded and the diameter of the wire electrode for MIG to set up the relevant product and the end of the
current contribution wire guide.
For steel welding tips used for welding current and the contribution of steel. In the case of aluminum welding tip current used to weld
aluminum and the input of Teflon.
The diameter of the electrode wire The diameter of the contact tip The contribution of lead wire
0.8 0.8 Blue
1.0 1.0 Blue / Red
1.2 1.2 Red
1.6 1.6 Yellow
6. DESCRIPTION OF FUNCTION SWITCHES AND DIAL
WIRE SPEED / AMPS (MMA)
ABOUT . C. MMA
MIG / MMA
INVERTER
MIG 200M
MI G
VOLTAGE (MIG) ARC FORCE (MMA)
WIRE FEED SpOO L
GUN
MMA PROCESS
MIG
TORCH MIG / L SpOO GUN
MIG
Sherman
TECWELD Pi r ot Pol ak
41- 943 s Piekary Sl. Ul. Szmar agdowa
21 / 3/6
Ty pe:
EN 60974-1
IP 21
S / N:
MMA: 17A / 185A 7V- 20/27 4V
And 2
U2
X
MIG 200M
1 ~ 50H of
100%
143A
25. 7V
U = 59V 0
U = 230V
1
MI GI = 35. 8A1max MI GI = 27. 8A1eff
MMA
100%
155A
21. 8V MI
G
60%
185A
27. 4V
MMA
60%
24V
200A MI
G
MI G: 30A / 200A 14V- / 24V
MMA = 38. 8A
1max
MMA = 29. 3A
1eff

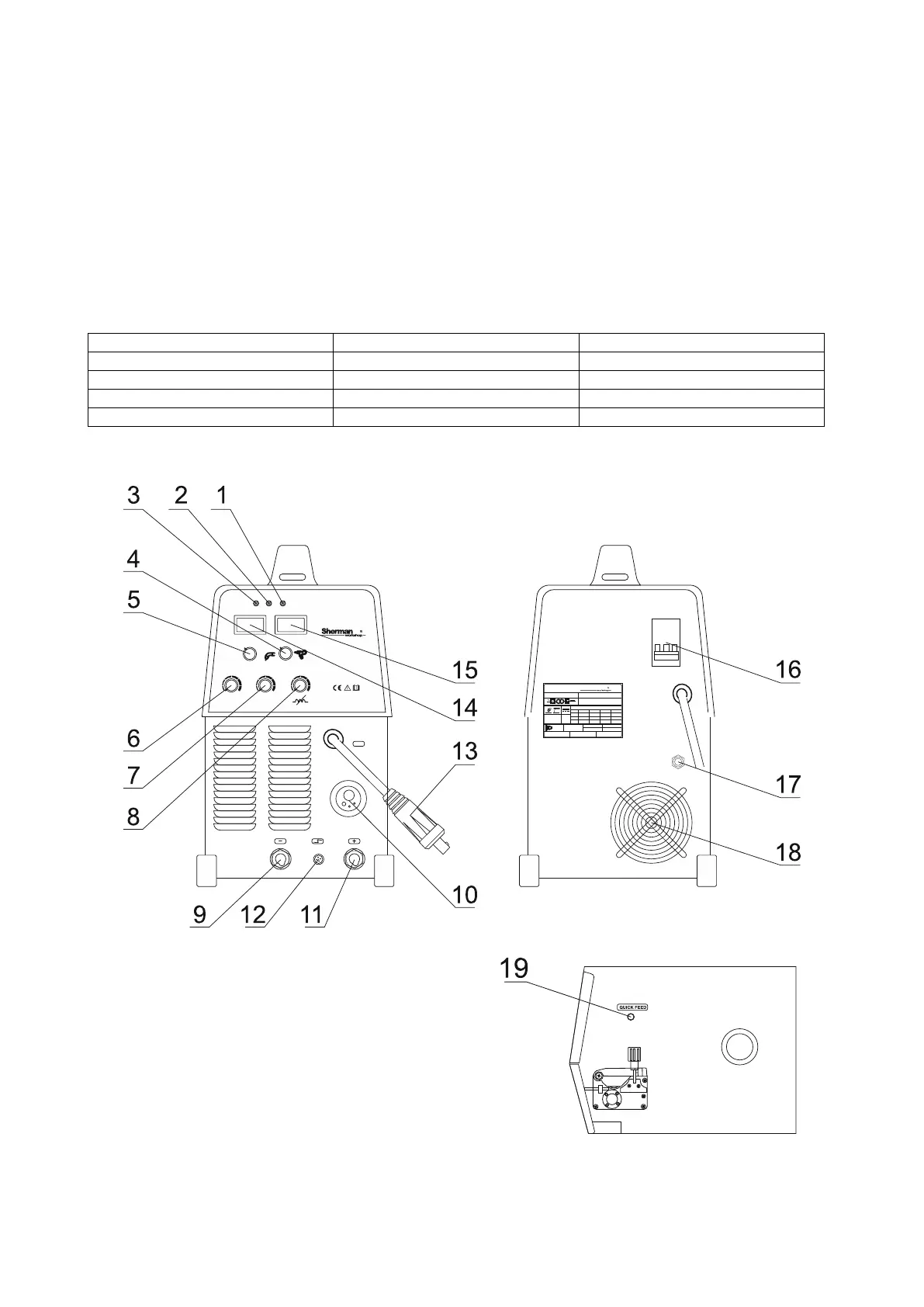

1. LED indicator MIG choice.
2. LED indicates choice of MMA.
3. LED thermal protection.
4. The switch MIG / handle Spool Gun.
5. Control of the welding method (MMA / MIG).
6. Welding current regulator (MMA method) or the wire feed speed
(MIG).
7. The adjustment knob welding voltage (MIG) or the ARC
FORCE (method MMA).
8. The inductance adjustment knob.
