Sherwin-Williams PT2500 - Page 22

 
Parts
Ref.
No.
Part No. Description Qty.
10 820–341 T
OGGLE BOOT 1
11 820–342 SWITCH, toggle 1
12 820–797 PLA
TE, switch, ON/OFF 1
15 820–798
STRAIN RELIEF BUSHING 1
18a 820–821 STAR
T SWITCH
Included with motor , item 18 1
20 820–827 HOUSING,
diaphragm 1
21 820–867
DIAPHRAGM ASSEMBL Y 1
22 820–831
GUIDE, diaphragm 1
23 820–828
HOUSING, pump 1
24 820–820 W
ASHER, belleville 4
25 820–801 CAPSCREW
, hex head;
M8 x 1.25 x 40 4
26 820–866 VAL
VE, inlet check
Includes replaceable item 26a 1
26a
820–829 .GASKET 1
28 820–869 OUTLET CHECK V AL VE ASSY
Includes items 28a–28f 1
28a
820–735 .GASKET , nylon 1
28b 820–771 .HOUSING, seat, valve 1
28c 821–021 .SPRING, compression 1
28d 820–863
.PLUG, ball stop
28e 821–020 .BALL, carbide 1
28f 820–734 .W ASHER 1
10
12
11
15
Ref 17

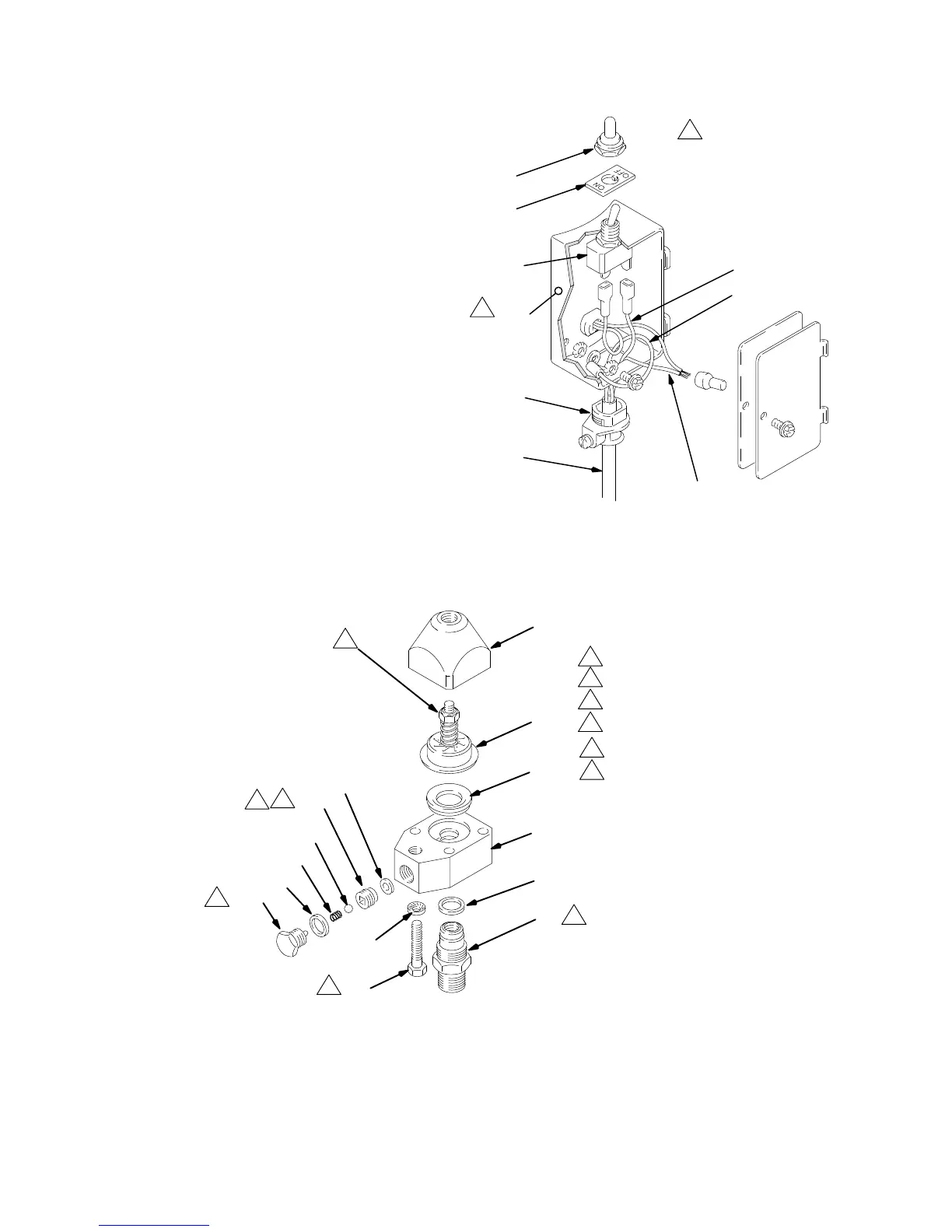

DET AIL B
BLACK
WHITE
GREEN
18a
0282
1
The
starter switch
is located in this
box.
1
20
21
22a
22b
26a
26
24
25
28a
28b
28c
28f
28d
DETAIL A
0281
1
3
4
2
Lubricate the threads.
T orque to 125–150 in–lb (14–17 N.m).
T orque to 280–300 in–lb (32–34 N.m).
T orque to 170–200 in–lb (19–23 N.m).
T orque to 320–260 in–lb (36–41 N.m).
Do not alter the position of the nut.
5
6
6
2
1
28e
3
4
5
