Shihlin electric BA Series User Manual

ACB-I
2
I N S T R U C T I O N S

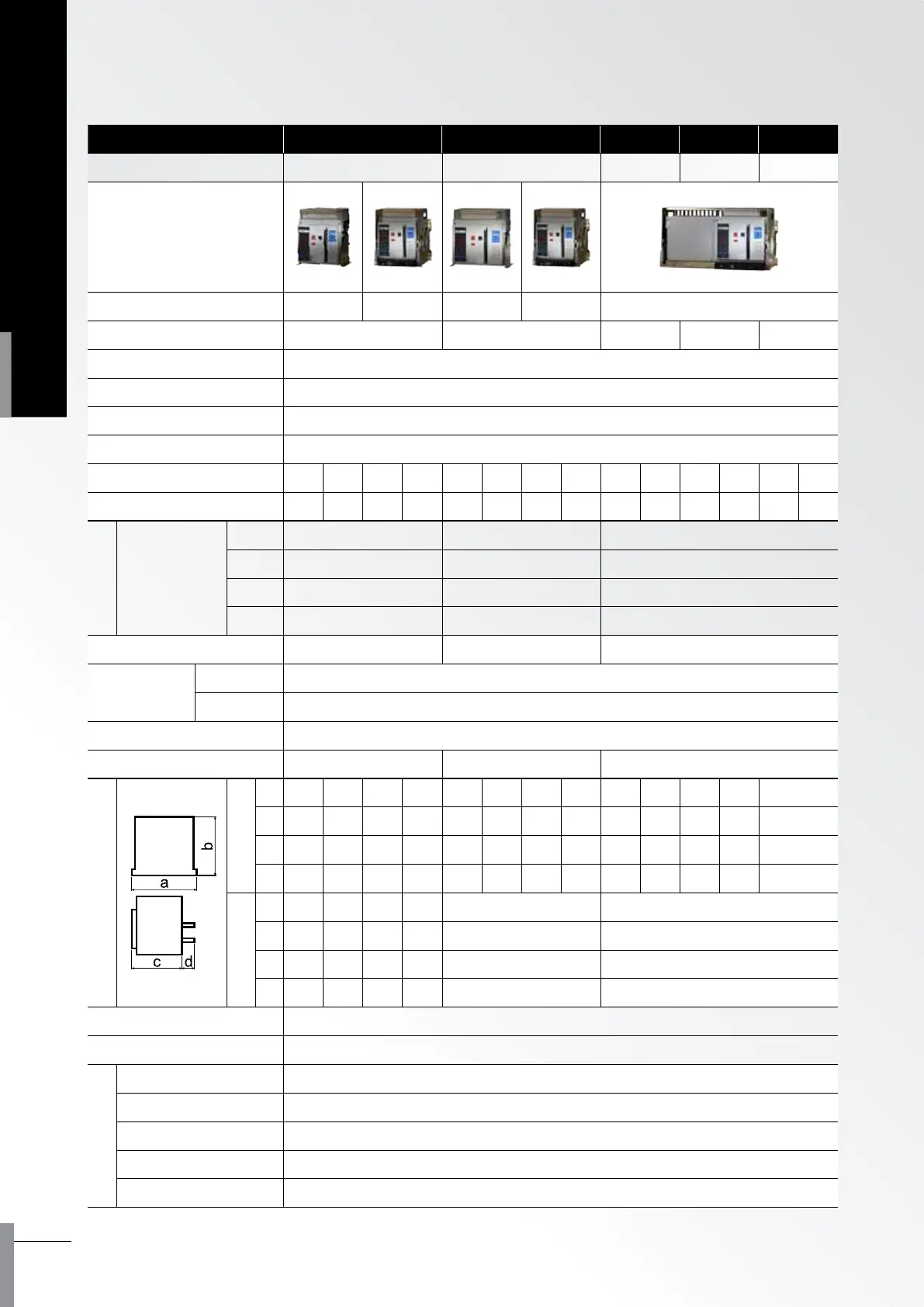

1. BA series specication
Frame (AF) 2000 - AF 3200 - AF 4000 - AF 5000 - AF 6300 - AF
Type BA2000 - H BA3200 - H BA4000 - H BA5000 - H BA6300 - H
Feature
Type Fixed Type Drawout type Fixed Type Drawout type Drawout type
Rated Current (In)A
630.800.1000.
1250.1600.2000.
2000.2500.3200. 4000. 5000. 6300.
Adjustable Range
of Rated Current (A)
0.4~1.0ln
Max. Rated Voltage
(Ue) 50/60HZ V
AC 690
Rated Insulated Voltage
(Ui) 50/60HZ V
AC 1000
Rated Impulse Withstand
Voltage (Uimp) kV
DC 12
Pole 3 4 3 4 3 4 3 4 3 4 3 4 3 4
N Pole Rated Current (In) A
─
100%
─
100%
─
100%
─
100%
─
100%
─
100%
─
100%
Rated breaking
capacity (kA)
IEC 60947-2
CNS 14816-2
Icu/Ics
kA
*AC 690V 50 / 33 65 / 43
─
*AC 440V 75 / 48 85 /55 100 / 100
AC 380V 85 / 55 100 /65 130 / 130
*AC 220V 150 / 95 170 / 110 200 / 200
Rated short time withstand capacity
(Icw) kA(1/3 sec)
55 / 50 65 / 60 100 / 100
Electrical
Control
Type
Standard Type
(M Type)
●
Communication
Type (H Type)
●
Electrical Life (Times) 10000
Bus bar connection type Horizontal / Vertical Hor
izontal Horizontal
Dimensions (mm)
Horizontal
a 360 455 375 470 420 535 435 550 815 930 815 930 930
b 405 405 439 439 405 405 439 439 439 439 439 439 439
c 295 295 383.5 383.5 295 295 383.5 383.5 383.5 383.5 383.5 383.5 383.5
d 60 60 67.5 67.5 75 75 82.5 82.5 100 100 100 100 100
Vertical
a 360 455 375 470
─ ─
b 405 405 439 439
─ ─
c 295 295 295 295
─ ─
d 66 66 66 66
─ ─
Auxiliary Switch (Standard Device) 4C
Motor drive AC 110 / 220 / 380V DC 110 / 220V (Optional)
Optional accessory
Under-voltage Trip (UVT) AC 110V / 220 - 230V / 380-400V (Optional)
Manual Program Editor English Version
ST-DP Interface
●
ST Power Module
●
Power ZCT
●
Note: The rated breaking capacities indicated by voltage which marked with * are for reference.
