ASSEMBLY

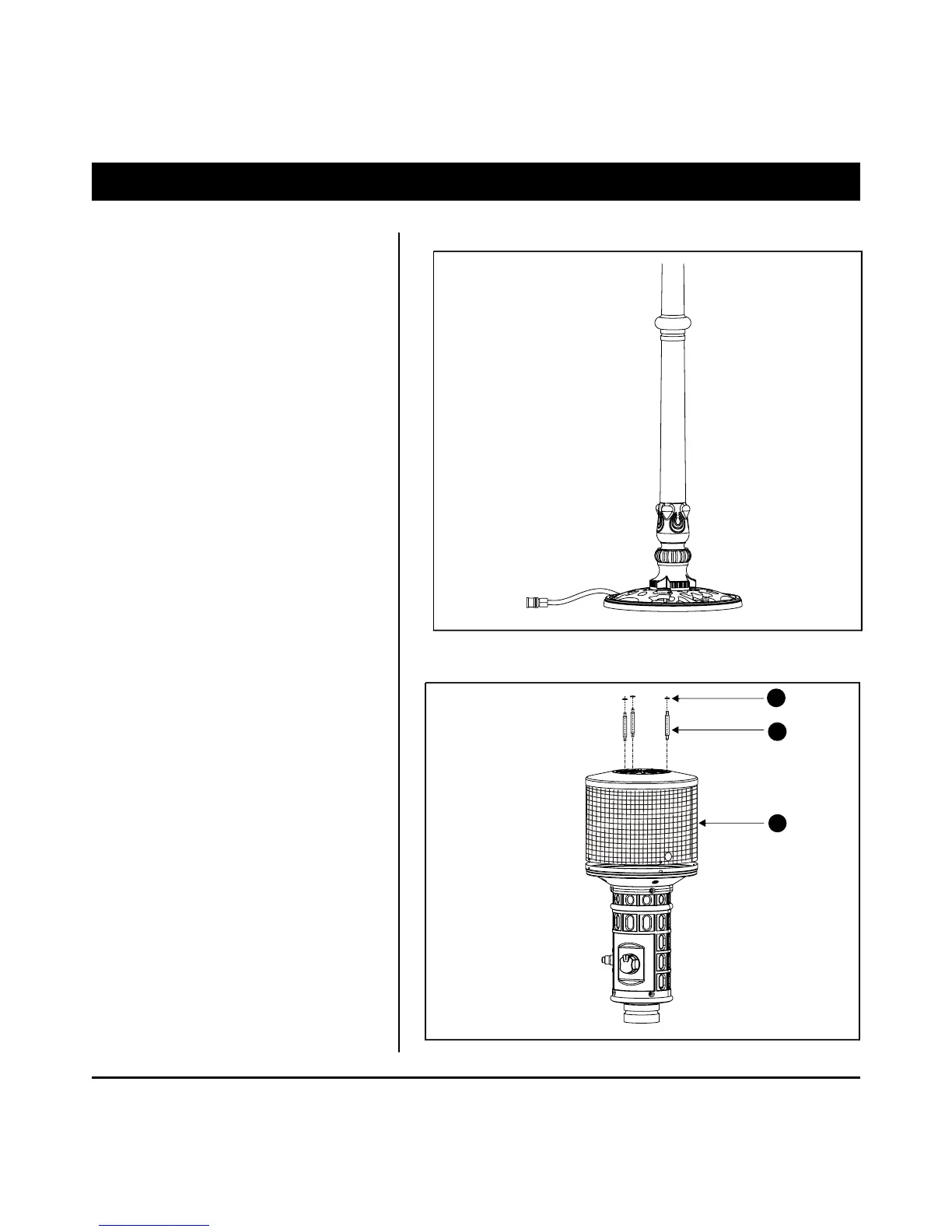

Step 5

Step 5 ----

Route hose through opening

in cylinder base.

NOTE: Assembly of this heater requires

basic mechanical skills. Proper assembly

is the responsibility of the installer.

Step 6

Step 6 ----

Attach Double Pointed Bolt to

Head Assembly

Attach M6x70 double pointed bolts(3pcs) and

6mm washers(3pcs) to the top of head assembly

and tighten the bolts securely.
