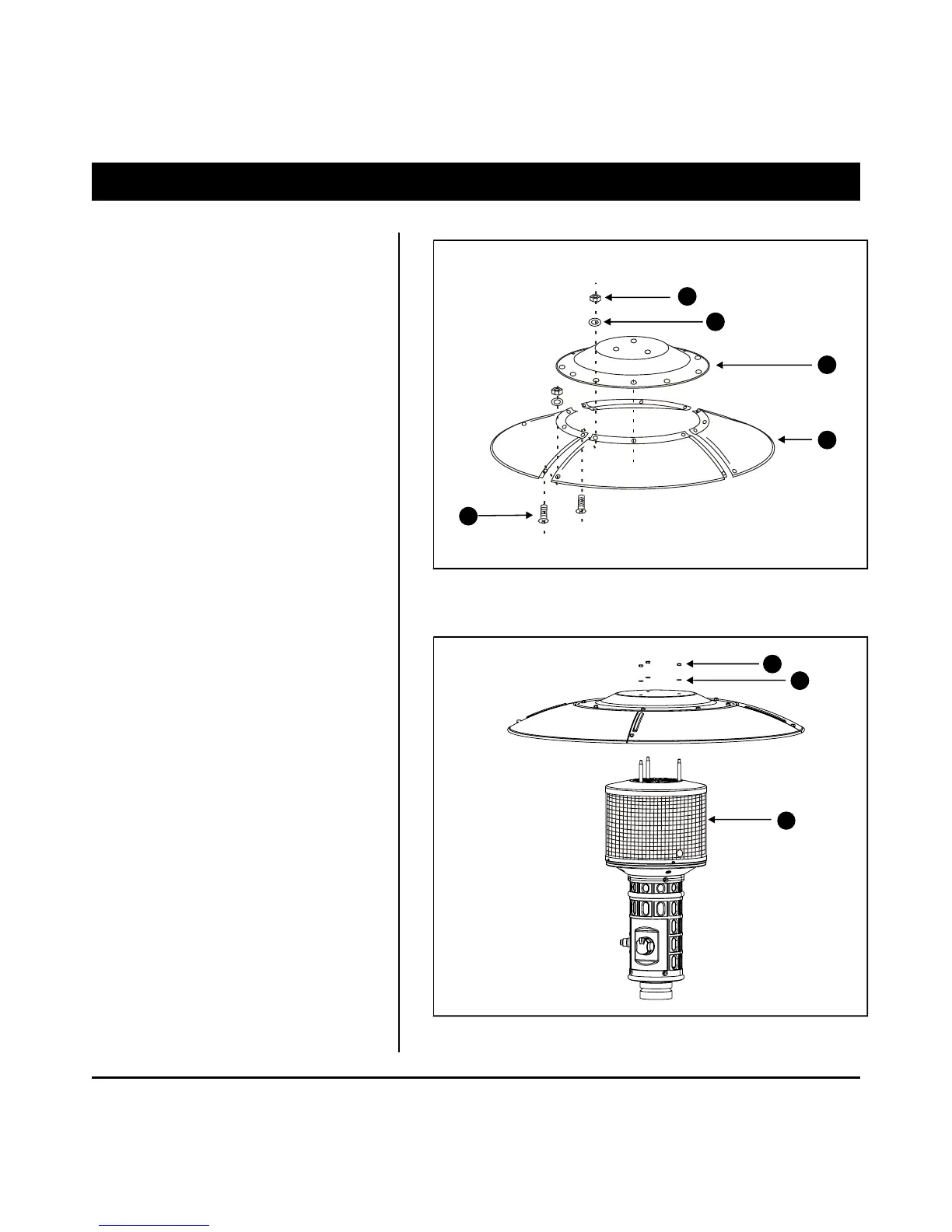

Step 7 ----

Attach Center Reflector to Reflector

Attach center reflector to the top of reflector (4 pcs)

by M6 X 10 mm screws (12 pcs) ,

Step 7

6mm washers (12 pcs) and nuts (12 pcs).

Step 8 ----

Attach Center Reflector and Reflector

Load center reflector and reflector to the top

of head assembly by

M6 X 70 double pointed bolts (3 pcs)

to the top of Head Assembly

6mm washers (3 pcs) and nuts (3 pcs).

NOTE: Assembly of this heater requires

basic mechanical skills. Proper assembly

is the responsibility of the installer.

ASSEMBLY

Step 8
