7-4-4 DISPLAY CONTENT

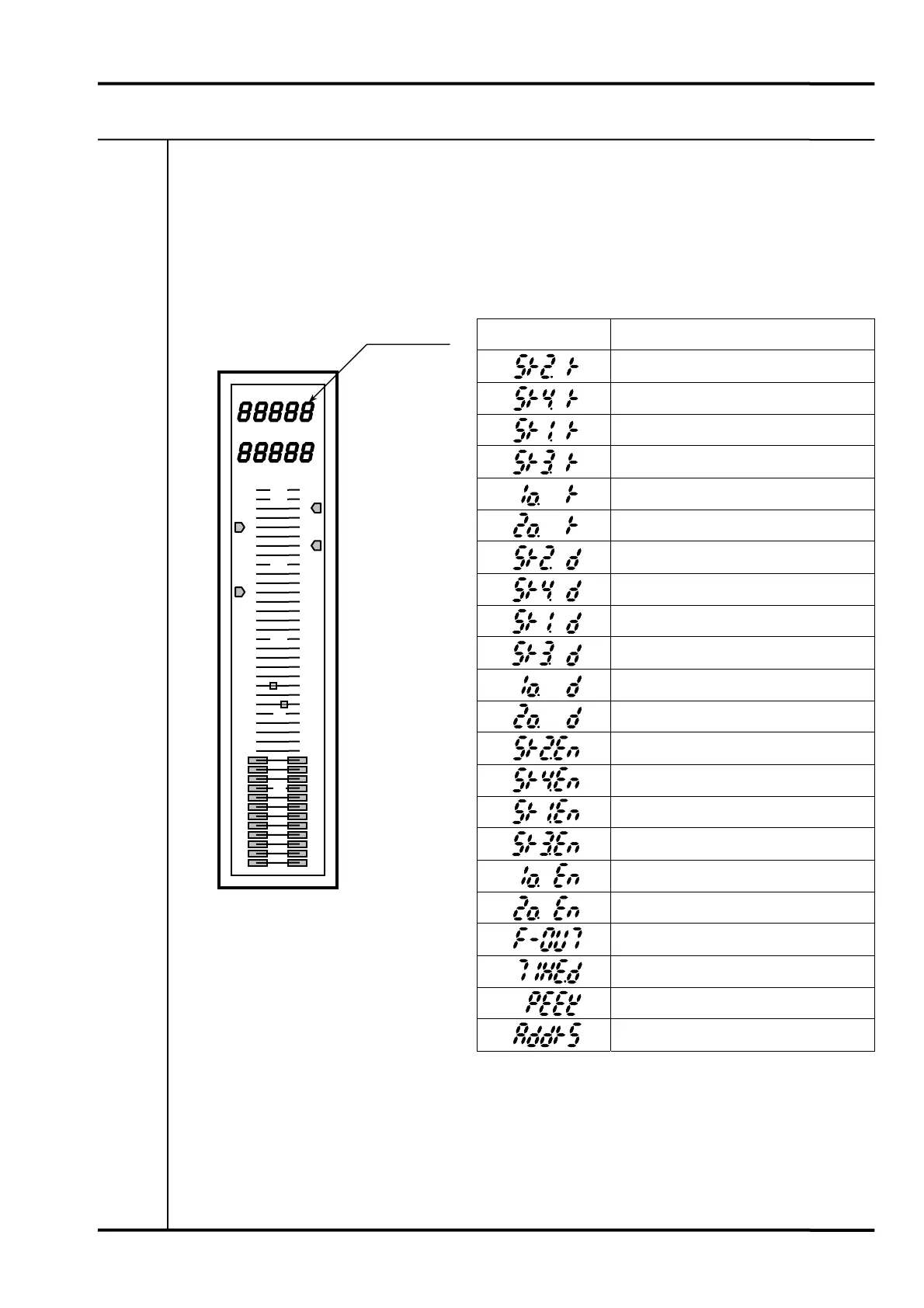

The characters and numerals indicated on the LCD display when setting the parameters represent
the following parameters and their status.
MEAS 1 .... Displays the parameters that can be set.
Display Parameter
SPEED RELAY 2 reset
SPEED RELAY 4 reset
SPEED RELAY 1 reset
SPEED RELAY 3 reset
CH1 OK alarm reset
CH2 OK alarm reset
SPEED RELAY 2 delay time
SPEED RELAY 4 delay time
SPEED RELAY 1 delay time
SPEED RELAY 3 delay time
CH1 OK alarm delay time
CH2 OK alarm delay time
SPEED RELAY 2 relay mode
SPEED RELAY 4 relay mode
SPEED RELAY 1 relay mode
SPEED RELAY 3 relay mode
CH1 OK alarm relay mode
CH2 OK alarm relay mode
First-out display
Timed OK channel defeat
Peak hold function
Address (communication address ID (1 to 10))
LCD display
