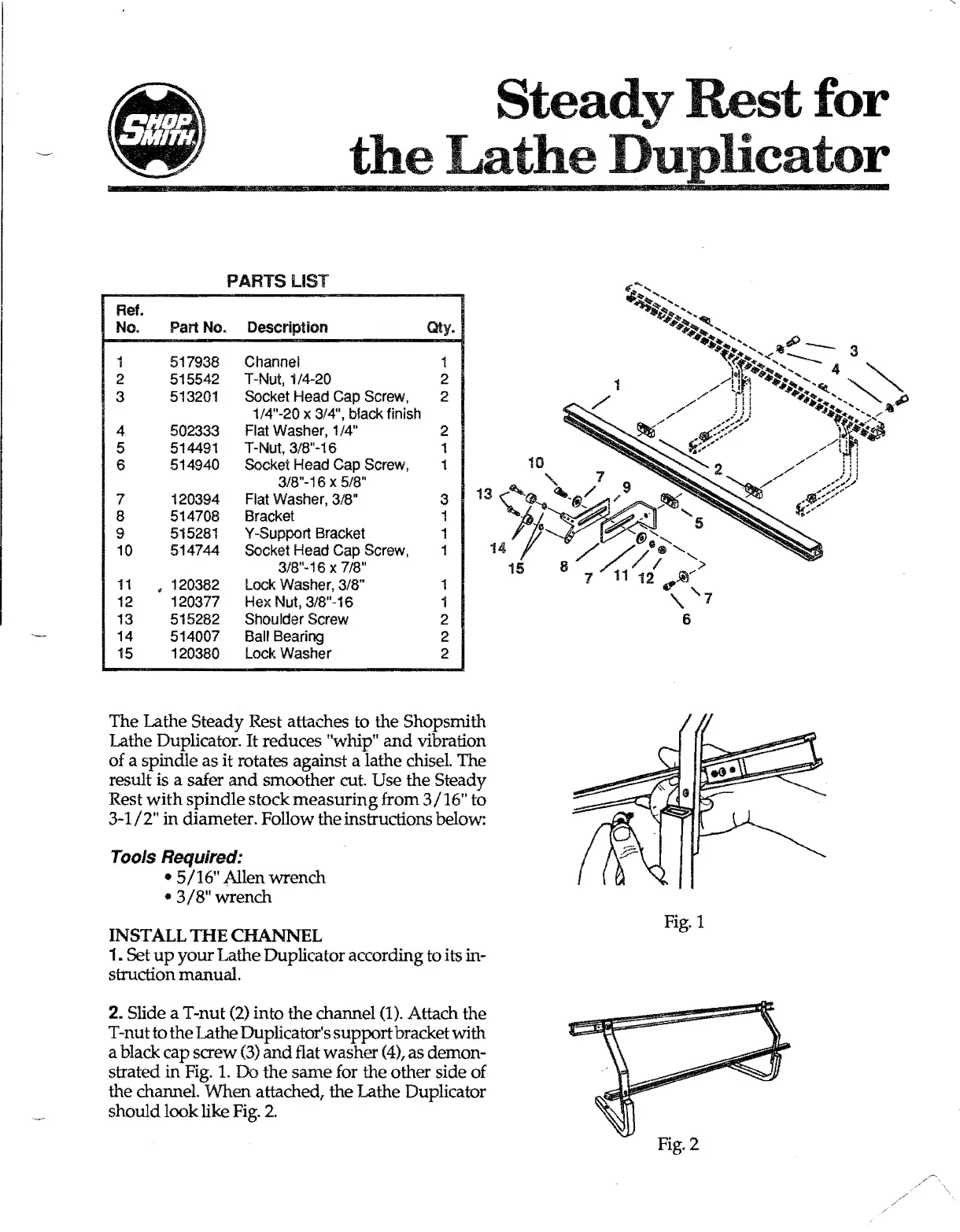

PARTS LIST
Ref.
No. Part No. Description
Qty.
1 517938 Channel 1
2 515542 T-Nut, 1/4-20 2
3
513201
Socket Head Cap Screw, 2
1/4"-20 x 3/4", black finish
4 502333
Flat Washer, 1/4"
2
5
514491 T-Nut, 3/8"-16 1
6
514940 Socket Head Cap Screw, 1
3/8"-16 x 5/8"
7 120394 Flat Washer, 3/8"
3
8
514708 Bracket
1
9 515281
V-Support Bracket
1
10
514744
Socket Head Cap Screw,
1
3/8"-16 x 7/8"
11
• 120382
Lock Washer, 3/8"
1
12 120377 Hex Nut, 3/8"-16
1
13 515282 Shoulder Screw
2
14 514007 Ball Bearing
2
15 120380
Lock Washer
2
The Lathe Steady Rest attaches to the Shop smith
Lathe Duplicator.
It reduces "whip" and vibration
of a spindle as it rotates against a lathe chisel. The
result is a safer and smoother cut. Use the Steady
Rest
with spindle stock measuring from 3/16" to
3-1/2" in diameter. Follow the instructions below:
Tools Required:
• 5/16" Allen wrench
• 3/8" wrench
INSTALL
lHE CHANNEL
1. Set up your Lathe Duplicator according to its in-
struction
manual
2. Slide aT-nut (2) into the channel (1). Attach the
T
-nutto the Lathe Duplicator's support bracket with
a black cap screw
(3) and Hat washer (4), as demon-
strated
in Fig. 1. Do the same for the other side of
the channeL When attached, the Lathe Duplicator
should look like Fig.
2.
Fig. 1
Fig. 2
