12 | SHOREMASTER.COM
ACCESSORY INSTALLATION
Parts List
DESCRIPTION
PART NUMBER
QTY
ITEM
Bench Poly Plank Tan102299921
Off-Deck Lakeview Bench Frame
101308722
Bolt Bag Lakeview Bench QC
10130901
--
3/8" x 2" Hex Bolt
100242483
Washer Fender 3/8 x 1.5 SS
100260184
Plastic Push-In Cap
1000986
4
5
2
3
1
5
5
Step 1
. Attach off-deck bench frames to
bench poly planks using 3/8" Fender Washers
and 3/8" x 2" Hex Bolts. Do not over tighten
bolts.
Note: Make sure to attach bench poly planks
in the proper orientation - as shown.
Step 2
. Insert plastic push-in caps into
off-deck bench frames as shown.
Step 3
. Attach off-deck bench frames to dock
accessory connectors (sold separately)
according to accessory connector instructions.
4

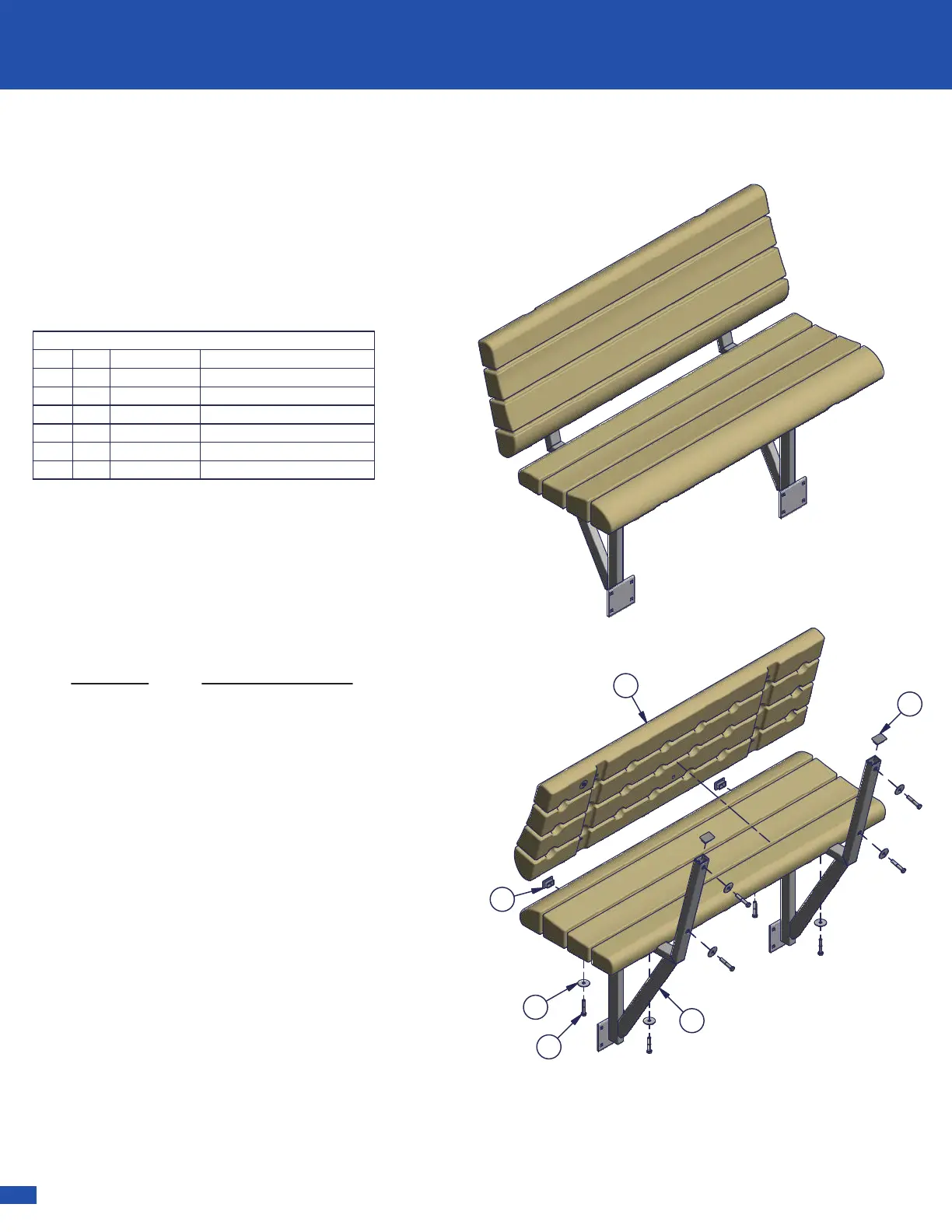

QC LakeView Rhino Bench
(Off Deck) Tan
Instructions
Part #: 1022994
Front View
Rear View
Note: QC LakeView Rhino Bench will be attached
to one of four different type of Accessory Dock
Connectors in order to be attached to your dock.
Below is a list of the four different types of docks
and the required bracket.
Dock Type Bracket Part Number
RS4 Dock 1006706
RS7 Dock 1006708
RS9 Dock 1006730
Poly Dock 1006608
DETAIL H
SCALE 1/35
Detail-A
H
Parts List
DESCRIPTION
PART NUMBER
QTY
ITEM
Weldment Lakeview Bench Frame On-Deck
101308021
Prt Bench Plank Poly 3.5x16.35x48.0 Tan102299922
Bolt Bag Lakeview On-Deck Bench
10130841
--
Washer Flat 3/8 SS
1002599
4
3
Bolt Hex 3/8-16 x 2.0 SS 304
100242484
Cap Press-In 1.125 x 1.625 Silver W/Logo
10009866
5
Bolt Hex 3/8-16 x 4.5 Full Thread SS 304
100244246
Alum Plate 1/4" x 2" x 6" With 7/16" Hole
1004624
4
7
Washer Fender 3/8 x 1.5 SS
100260188
Nut Nyloc 3/8-16 Brass
1001805
4
9
Screw Pan Phil 1/4 x 1.75 T/A SS
100257681 0
2
7
10
6
5
4
2
1
Dock
Dock Panel
Step 1.
Attach bench planks to on-deck bench frames
using 3/8" Fender Washers and 3/8" x 2" Hex Bolts. Do
not over tighten bolts.
Note: Make sure to attach bench planks in the proper
orientation as shown.
Step 2.
Insert plastic push-in caps into on-deck bench
frames as shown.
Step 3.
Set bench on dock in desired position (2" from
edge of dock, as shown in Detail "A") and mark the four
mounting hole locations on the dock panel. Inspect
underside of dock panel to make sure you do not hit the
dock frame or other obstructions. Drill holes through
dock panel using a 7/16" drill bit.
Step 4.
Secure dock bench to dock panel using 3/8" x
4-1/2" Hex Bolts, 3/8" Flat Washers, Backer Plates and
3/8" Nyloc Nuts.
Step 5.
Secure dock panel to dock using 1/4" x 1-3/4"
Phillips Pan Wood Screws.
Note: Failure to secure dock panel to dock could result
in causing bodily injury or possible death.
4
8
3
9
LakeView Rhino Bench
On-Deck Tan
Instructions
Part #: 1023002
To Next Page
