16 | SHOREMASTER.COM
ACCESSORY INSTALLATION
Parts List
DESCRIPTION
PART NUMBER
QTY
ITEM
Wdmt QC Umbrella Holder - 1.75" ID
102433811
Bolt Bag - QC Umbrella Holder
10249191
--
Screw 3/8 X 1 1/2 Thumb SS
100242122
Nut Square 3/8-16 SS
100259823
Bolt Carriage 3/8-16 x 1.0 SS 304
100195644
Nut Flange 3/8-16 Brass
10018024
5
2
3
5
4
1

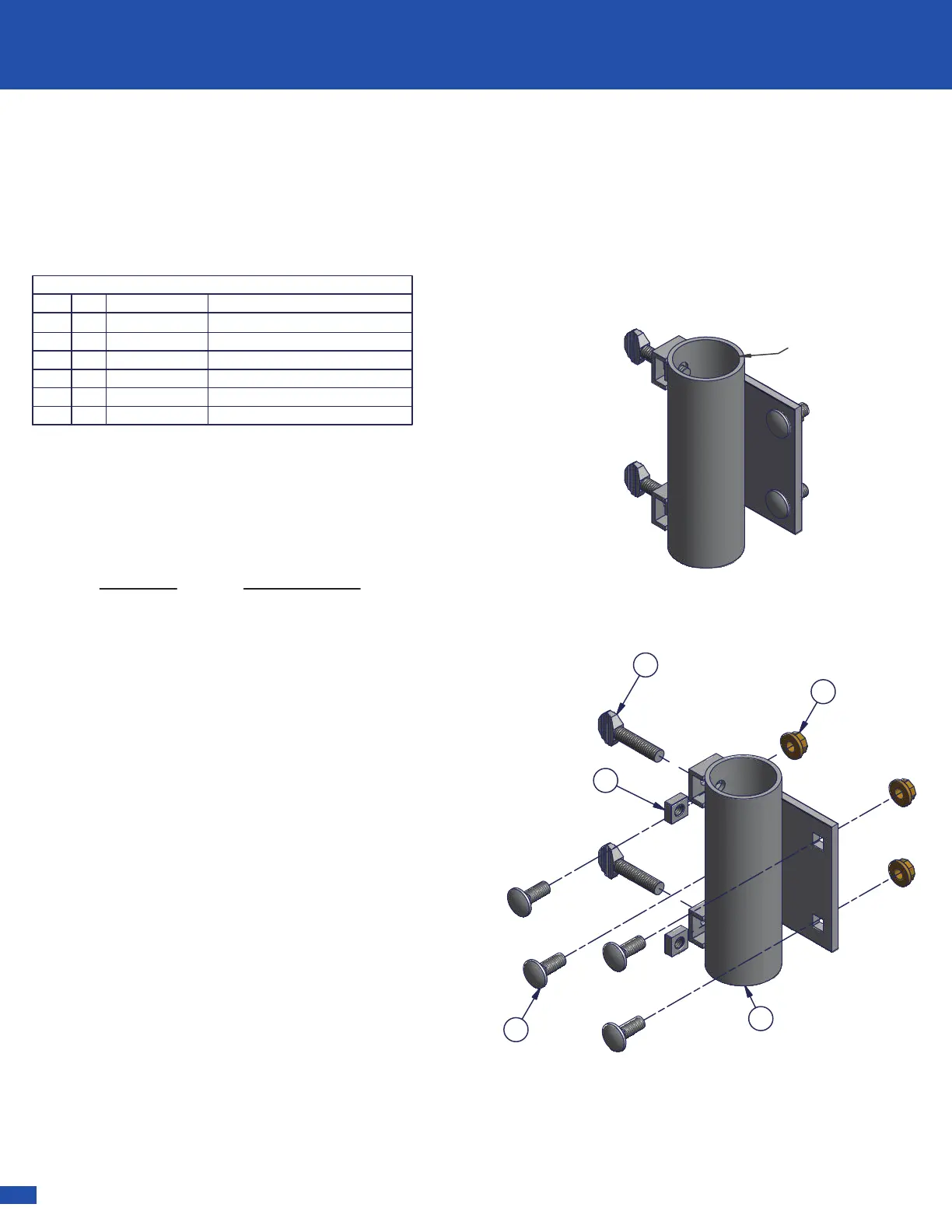

QC Umbrella Holder
Instructions
Part #: 1024339
1
.
7
5
0
Note: QC Umbrella Holder will be attached to one of
four different types of Accessory Dock Connectors in
order to be attached to your dock. Below is a list of the
four different types of docks and the required bracket.
Dock Type Bracket Number
RS4 Dock 1006706
RS7 Dock 1006708
RS9 Dock 1006730
Poly Dock 1006608
Connect QC Umbrella Holder to accessory bracket
(Sold Separately) according to accessory bracket
instructions.
Step 1.
After attaching QC Umbrella Holder to
Accessory Bracket, insert the 3/8 Square Nuts into
nut clips on 1-3/4 ID Umbrella Holder pipe.
Step 2.
Screw the 3/8 Thumb Screws a few turns
into 3/8 Square Nuts, just enough to hold in place.
Step 3
. Insert Umbrella pole into Umbrella Holder to
desired height and tighten 3/8 Thumb Screws.
Parts List
DESCRIPTION
PART NUMBER
QTY
ITEM
QC Flag Pole Holder
100380711
Bolt Bag QC Flag Pole Holder
10044471
-
Screw 3/8 X 1 1/2 Thumb SS
100242122
Nut Square 3/8-16 SS
100259823
2
3
1
Note: QC Flag pole holder will be attached to
one of four different types of Accessory Dock
Connectors in order to be attached to your
dock. Below is a list of the four different types
of docks and the required bracket.
Dock Type Bracket Part Number
RS4 Dock 1006706
RS7 Dock 1006708
RS9 Dock 1006730
Poly Dock 1006608
Connect QC flag pole holder to accessory
bracket (Sold Separately) according to
accessory bracket instructions.
RS4 QC Accessory
Bracket and Hardware
shown (Sold Separately)
QC Flagpole Holder
Instructions
Part #: 1006666
Step 1
. After attaching QC Flagpole Holder to
Accessory Bracket, insert the 3/8 Square Nuts
into nut clips on Flagpole Holder pipe.
Step 2.
Screw the 3/8 Thumb Screws a few turns
into 3/8 Square Nuts, just enough to hold in place.
Step 3
. Insert Flagpole into QC Flagpole Holder
and tighten 3/8 Thumb Screws.
