22 | SHOREMASTER.COM
ACCESSORY INSTALLATION
Parts List
DESCRIPTION
PART NUMBER
QTY
ITEM
Wheel Kit Coupler Bracket
100380011
Set Screw 1/2 x 1.5 Square Head
100255812
Nut Square 1/2
100179313
Bushing 2" ID x 3" OD
10157302
4
Cotter Pin .25 x 2.5
10025691
5
Dock Leg
Poly Tire
3
1
2
4
5

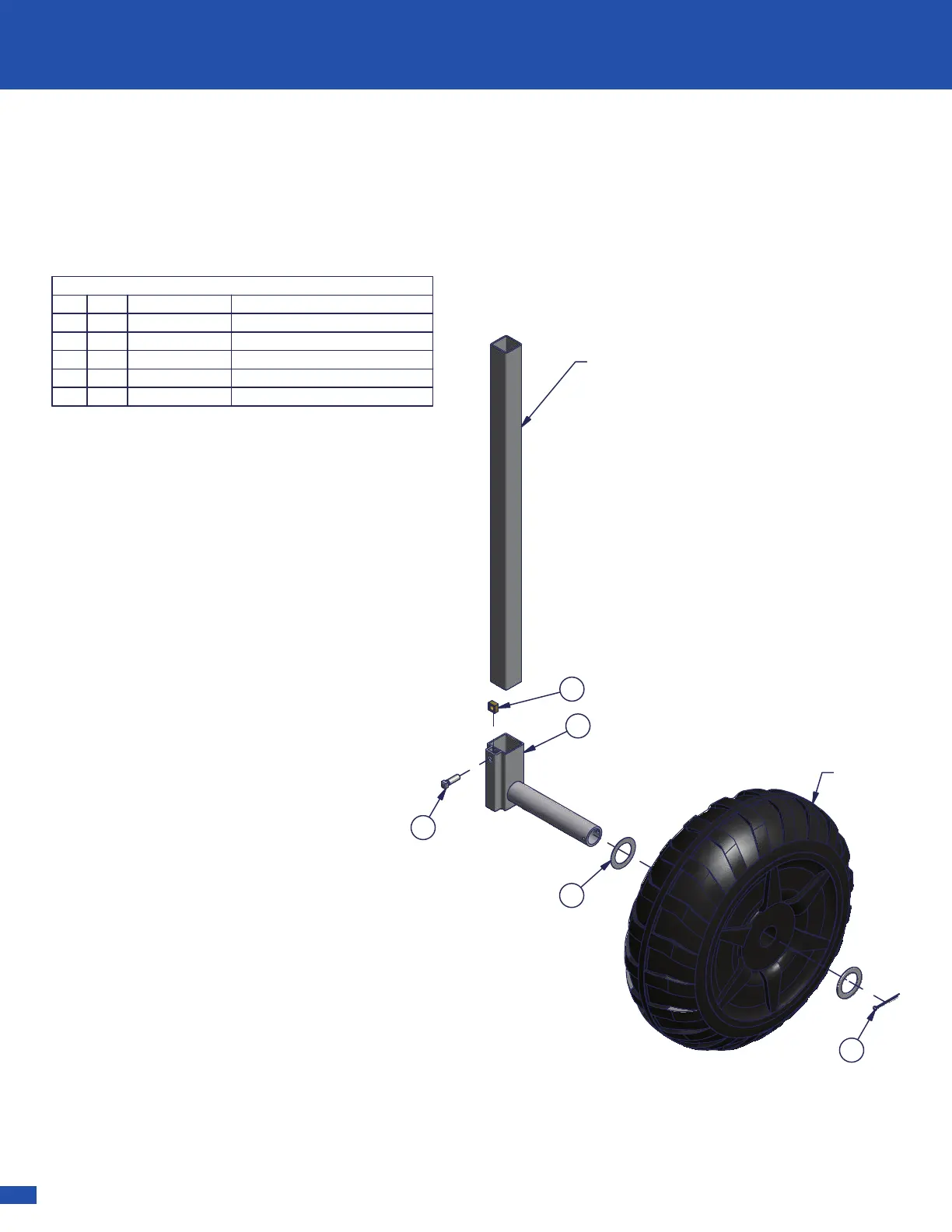

Wheel/Axle Adapter for 2 x 2 Dock Legs
Instructions
Part #: 1006709
Step 1.
Insert the Dock Leg into the
Wheel Kit Coupler Bracket and secure with
one 1/2 x 1 1/2 Set Screw and one 1/2
Square Nut - as shown.
Step 2.
Slide one Bushing onto the axle,
then the Poly Tire followed by another
Bushing. Secure with one 1/4 x 2 1/2
Cotter Pin - as shown.
Parts List
DESCRIPTION
PART NUMBER
QTY
ITEM
Leg Pocket100378911
Bolt Bag
10065391
-
Bolt Carriage 3/8 x 1.0
100195622
Set Screw 1/2 x 1.5
100255823
Nut Square 1/2
100179324
Nut Flange 3/8
10018022
5
Blue Cap Five Sided 2.0 x 2.0
100098416
2
1
3
4
5
QC Short Single Leg Pocket
Instructions
Part #: 1006659
Step 1.
Insert the Leg Pocket into the corner
of the dock frame and secure using 3/8
Carriage Bolt and 3/8 Flange Nut on each
angle piece of leg pocket.
Step 2.
Insert 1/2 Square Nuts into channel
of leg pocket and thread set screws into nut
just enough to hold them in place.
Step 3.
Insert leg post (sold separately) into
leg pocket, adjust to desired height, and
tighten set screws to hold in place.
Note: Before attaching any parts together slide
all the Carriage Bolts that are necessary for all
the components into the "T" Slot of the dock
frame.
Place on top of Leg Post
(sold separately)
