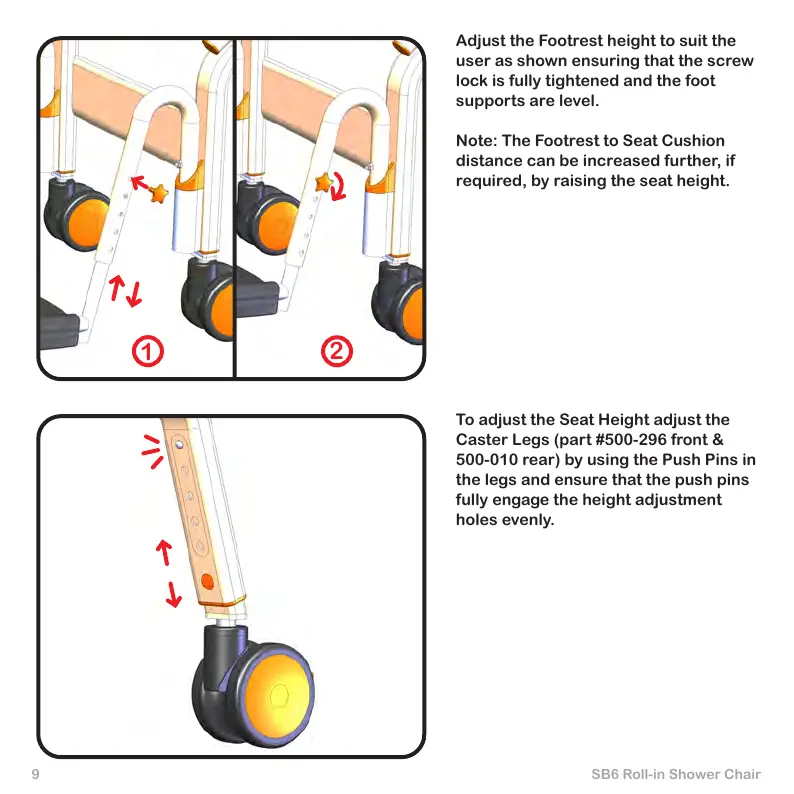

Adjust the Footrest height to suit the
user as shown ensuring that the screw
lock is fully tightened and the foot
supports are level.
Note: The Footrest to Seat Cushion
distance can be increased further, if
required, by raising the seat height.
To adjust the Seat Height adjust the
Caster Legs (part #500-296 front &
500-010 rear) by using the Push Pins in
the legs and ensure that the push pins
fully engage the height adjustment
holes evenly.
9 SB6 Roll-in Shower Chair
