SB6 Roll-in Shower Chair
22

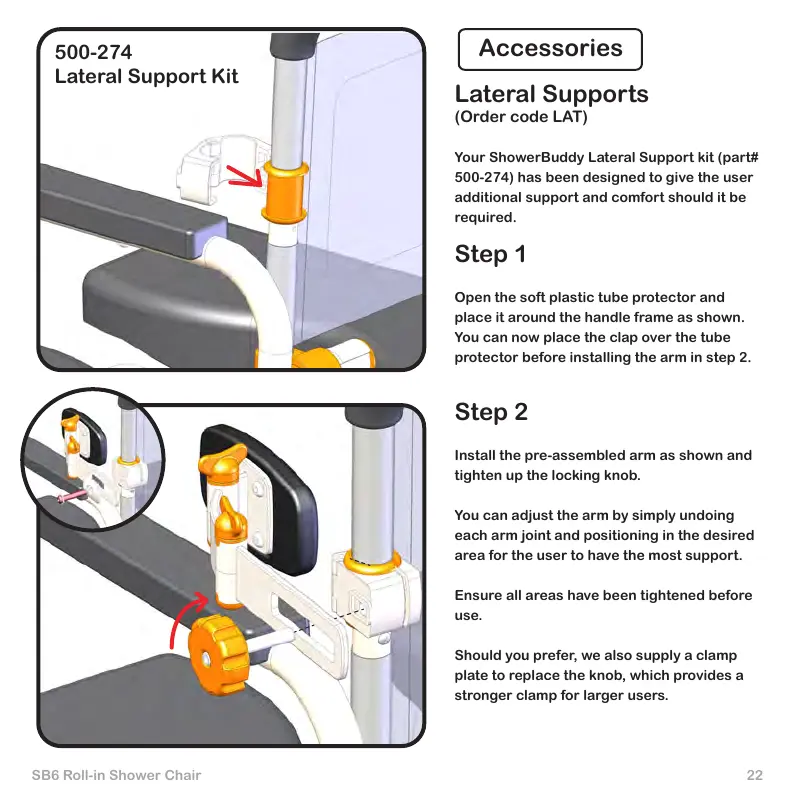

Lateral Supports
(Order code LAT)
Your ShowerBuddy Lateral Support kit (part#
500-274) has been designed to give the user
additional support and comfort should it be
required.
Step 1
Open the soft plastic tube protector and
place it around the handle frame as shown.
You can now place the clap over the tube
protector before installing the arm in step 2.
Step 2
Install the pre-assembled arm as shown and
tighten up the locking knob.
You can adjust the arm by simply undoing
each arm joint and positioning in the desired
area for the user to have the most support.
Ensure all areas have been tightened before
use.
Should you prefer, we also supply a clamp
plate to replace the knob, which provides a
stronger clamp for larger users.
500-274
Lateral Support Kit
Accessories
