19 SB6 Roll-in Shower Chair

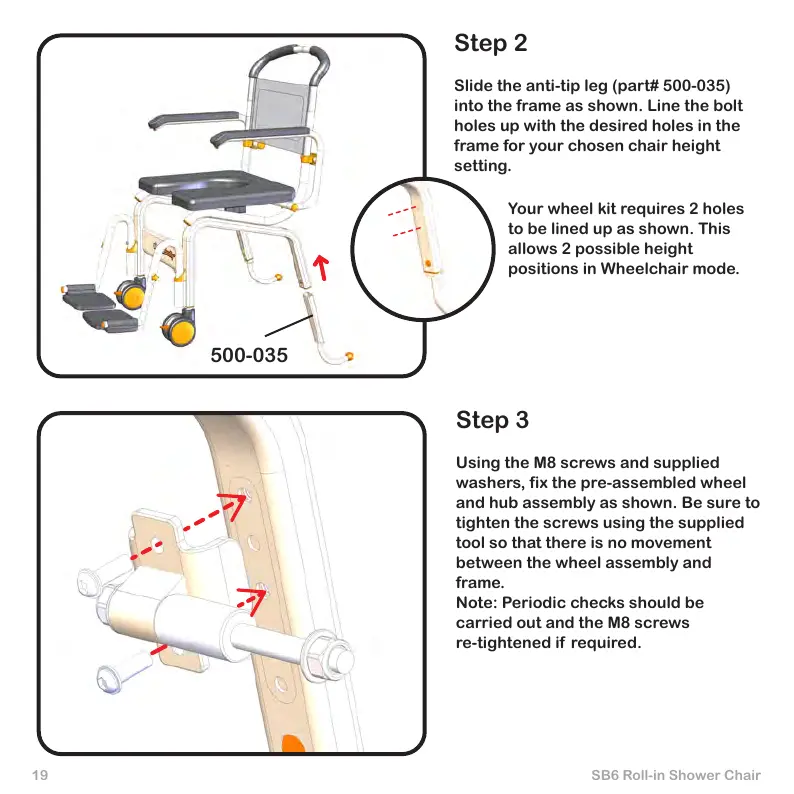

Step 2
Slide the anti-tip leg (part# 500-035)
into the frame as shown. Line the bolt
holes up with the desired holes in the
frame for your chosen chair height
setting.
Your wheel kit requires 2 holes
to be lined up as shown. This
allows 2 possible height
positions in Wheelchair mode.
Step 3
Using the M8 screws and supplied
washers, fix the pre-assembled wheel
and hub assembly as shown. Be sure to
tighten the screws using the supplied
tool so that there is no movement
between the wheel assembly and
frame.
Note: Periodic checks should be
carried out and the M8 screws
re-tightened if required.
500-035
