INSTALLING THE A99SMA ADAPTOR
1. Remove A99SM Shock Mount from mounting surface by
removing screws.
2. Attach A99SMA Shock Mount Adaptor to surface using exist-
ing screw holes and provided screws (Figure 5).
3. Insert A400SM Shock Mount into adaptor, aligning screw
holes in shock mount with those in adaptor. Attach using
provided screws (Figure 5).

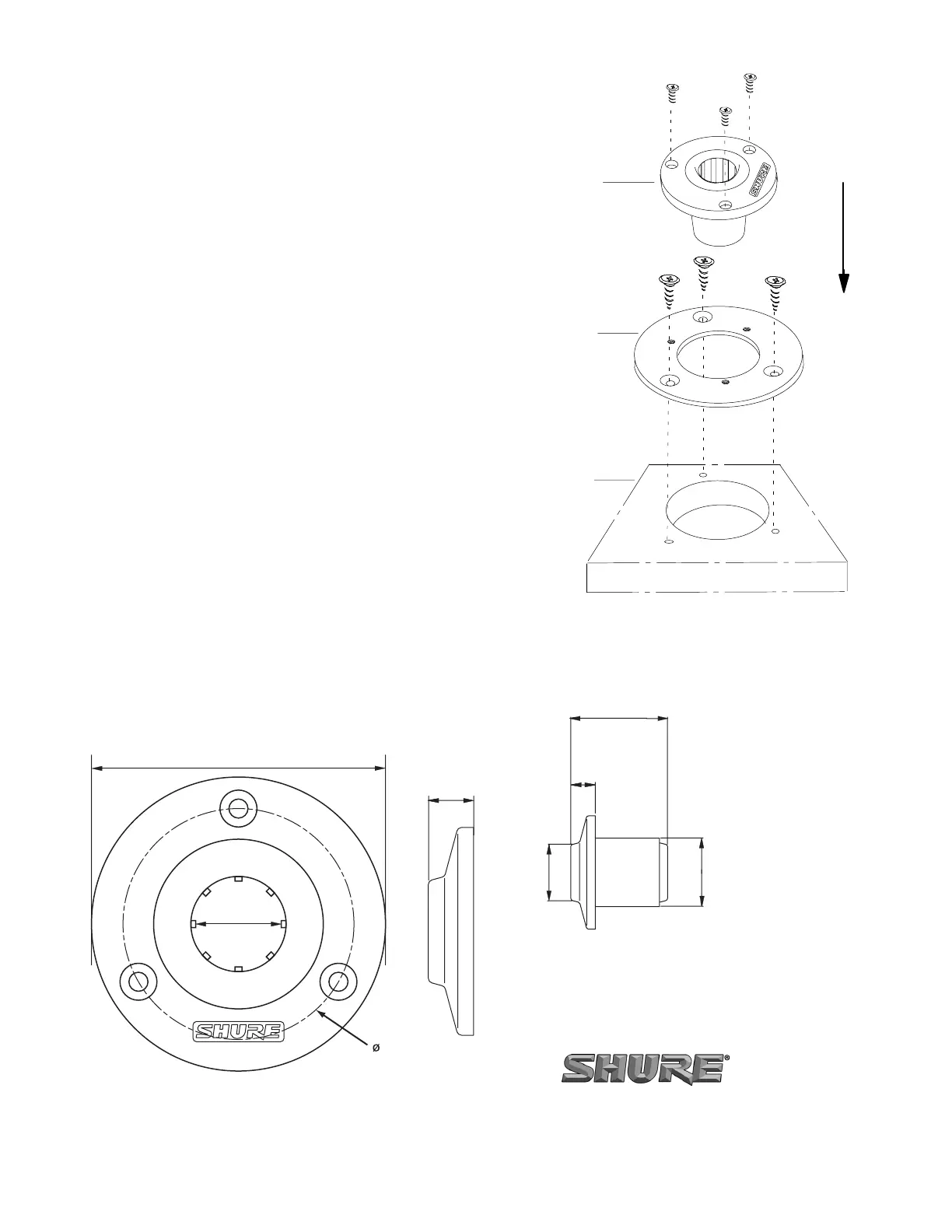

MOUNTING THE A400SM USING THE A99SMA
FIGURE 5
A400SM
Shock Mount
A99SMA
Adaptor
Mounting
Surface
(0.56 in.)
66.70 mm
19.4 mm
(0.765 in.)
52.4 mm
(2.062 in.)
(2.625 in.)
14.40 mm
14.40 mm
(0.56 in.)
(2.00 in.)
50.80 mm
(1.70 in.)
43.18 mm
BEFESTIGUNGSFLANSCH
BRIDA DE MONTAJE
MOUNTING FLANGE
BRIDE DE MONTAGE
FLANGIA DI MONTAGGIO
ASSEMBLAGE DE LA MONTURE SILENT–BLOC
SCHWINGDÄMPFER–BAUGRUPPE
SOPORTE AMORTIGUADO
SUPPORTO ANTIVIBRAZIONE
SHOCK MOUNT ASSEMBLY
38 mm
(1.5 in.)
(Actual Size)
SHURE Incorporated http://www.shure.com
United States, Canada, Latin America, Caribbean:
5800 W. Touhy Avenue, Niles, IL 60714-4608, U.S.A.
Phone: 847-600-2000 U.S. Fax: 847-600-1212 Intl Fax: 847-600-6446
Europe, Middle East, Africa:
Shure Europe GmbH, Phone: 49-7131-72140 Fax: 49-7131-721414
Asia, Pacific:
Shure Asia Limited, Phone: 852-2893-4290 Fax: 852-2893-4055
