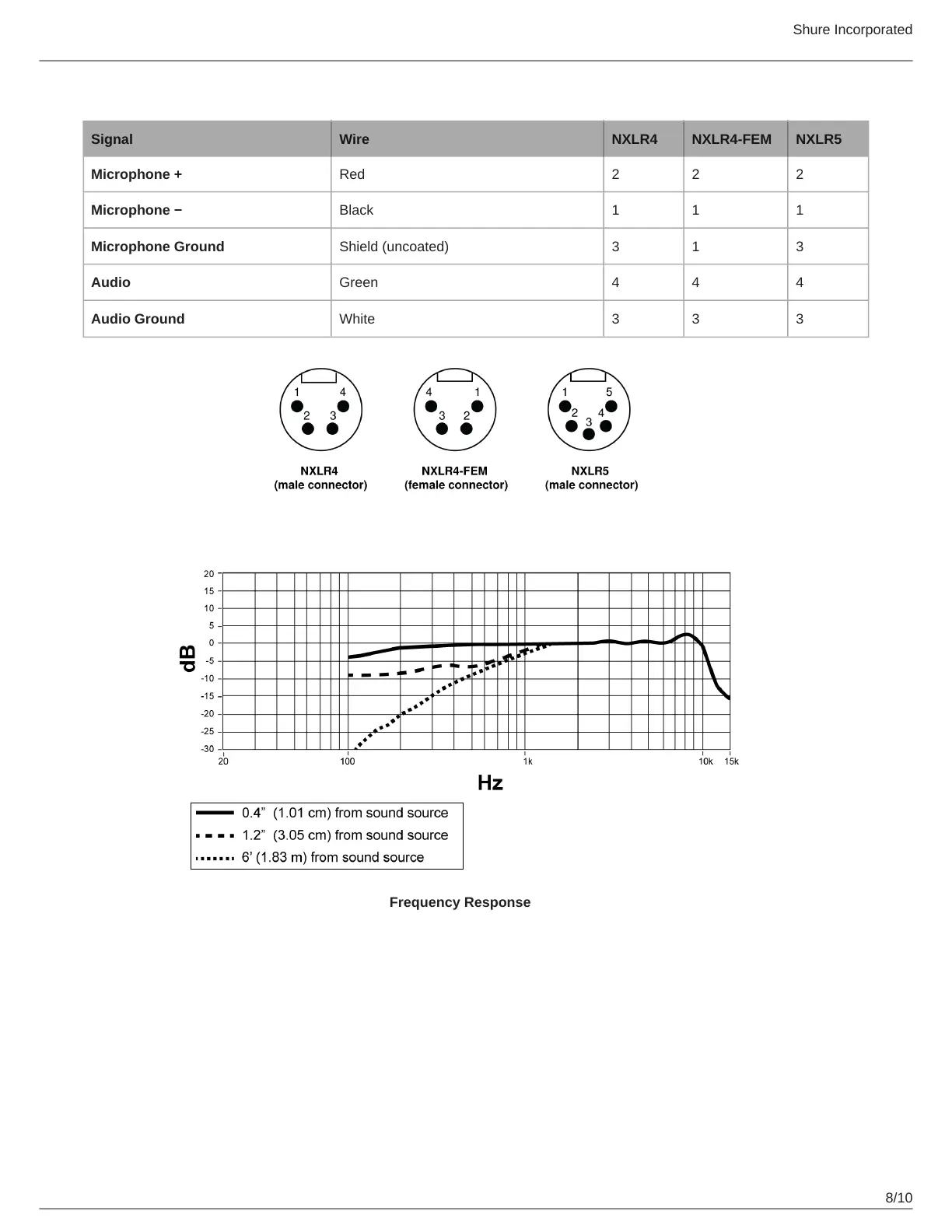

Wiring Diagram
Signal Wire NXLR4 NXLR4-FEM NXLR5
Microphone + Red 2 2 2
Microphone − Black 1 1 1
Microphone Ground Shield (uncoated) 3 1 3
Audio Green 4 4 4
Audio Ground White 3 3 3
Frequency Response
