ENGLISH
3
SYSTEM TYPES
The Vocal Artist-UHF is a hand-held system designed for singers who desire the
high quality of Shure microphones and the freedom of wireless performance. In-
cludes a Shure BETA58
or SM58
dynamic microphone with a built-in transmitter.
The Presenter-UHF is a body-pack system designed for public speakers who prefer
an inconspicuous, hands-free lavalier microphone. Features an omnidirectional
Shure WL93, supercardioid WL184, or cardioid WL185 micro-miniature lavalier mi-
crophone.
The Headset-UHF is a body-pack system designed for users in physically active ap-
plications, who desire the freedom of hands-free microphone operation along with the
performance of Shure wireless equipment. Features a WH20TQG headset micro-
phone.
The Guitarist-UHF is a body-pack system designed for use with electric guitars,
basses, and other electric instruments. May be used with brass or woodwind instru-
ments, with optional WM98 instrument microphone and mount. The Guitarist pro-
vides the freedom of going wireless and the reliability of high quality Shure sound.
SYSTEM COMPONENTS
Component The Vocal Artist-UHF The Presenter-UHF The Headset-UHF
The Guitarist-UHF
Transmitter UT2 Hand-Held Micro-
phone Transmitter
UT1 Body-Pack Transmitter
Microphone* BETA58
SM58
or
Hand-Held Microphone
WL93, WL184 or
WL185 Lavalier
Microphone
WH20TQG Headset
Microphone
—
Receiver UT4 Diversity Receiver with MARCAD Circuitry
Power Supply PS20 (120 Vac, 60 Hz) or PS20E (230 Vac, 50 Hz)
Supplied
Accessories
Microphone Stand
Adapter, Vinyl Trans-
mitter Bag,
Receiver Feet,
Receiver VELCRO
Mounting Strips
Vinyl Transmitter Bag,
Receiver Feet,
Receiver VELCRO
Mounting Strips
Vinyl Transmitter Bag,
Receiver Feet,
Receiver VELCRO
Mounting Strips
Vinyl Transmitter Bag,
Receiver Feet,
Receiver VELCRO
Mounting Strips
*Additional microphones may be available at later date

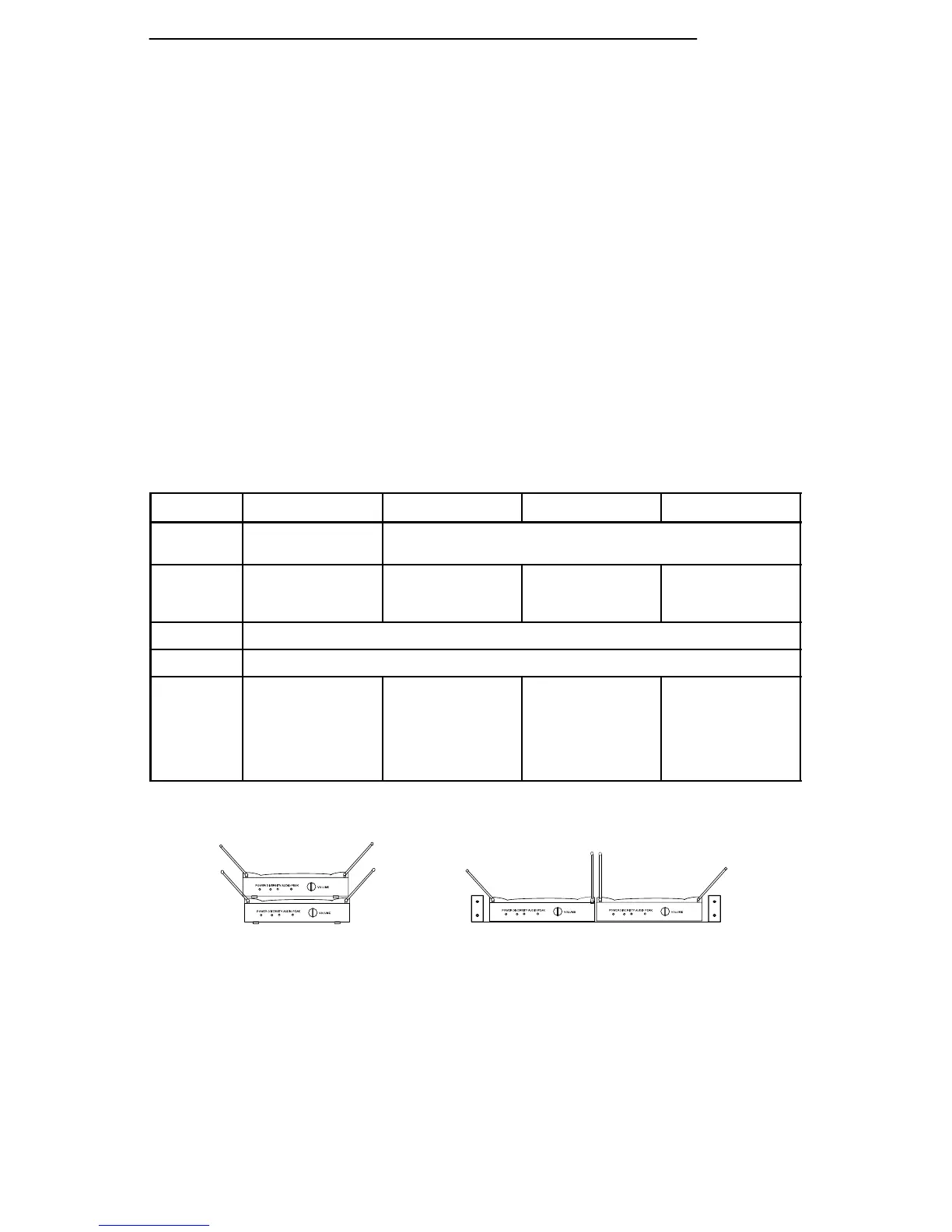

STACKING AND RACK-MOUNTING RECEIVERS
SHURE
SHURE
STACKED RECEIVERS
SHURE SHURE
RACK-MOUNTED RECEIVERS
FIGURE 1
The UT4 receiver may be used in numerous applications, and is designed to be easi-
ly stacked or rack-mounted for multiple system use (see Figure 1).
• To stack receivers: The raised corners are designed to create stability when receiv-
ers are stacked, if placed on a flat surface with feet attached. It is important to posi-
tion the antennas at a 45° angle from vertical so that the antennas do not touch.
• To rack-mount receivers: The UT4 receiver is a half-rack unit, and two receivers
should fit into a standard rack space. Place the outer antennas at a 45° angle from
vertical; place the inner antennas in a vertical position. ANTENNAS SHOULD NOT
CROSS OR TOUCH. (See Optional Accessories for rack mount accessories.)
