Description of the device, display/control panel
Instructions for use
1. LCD Display
2. Instructions

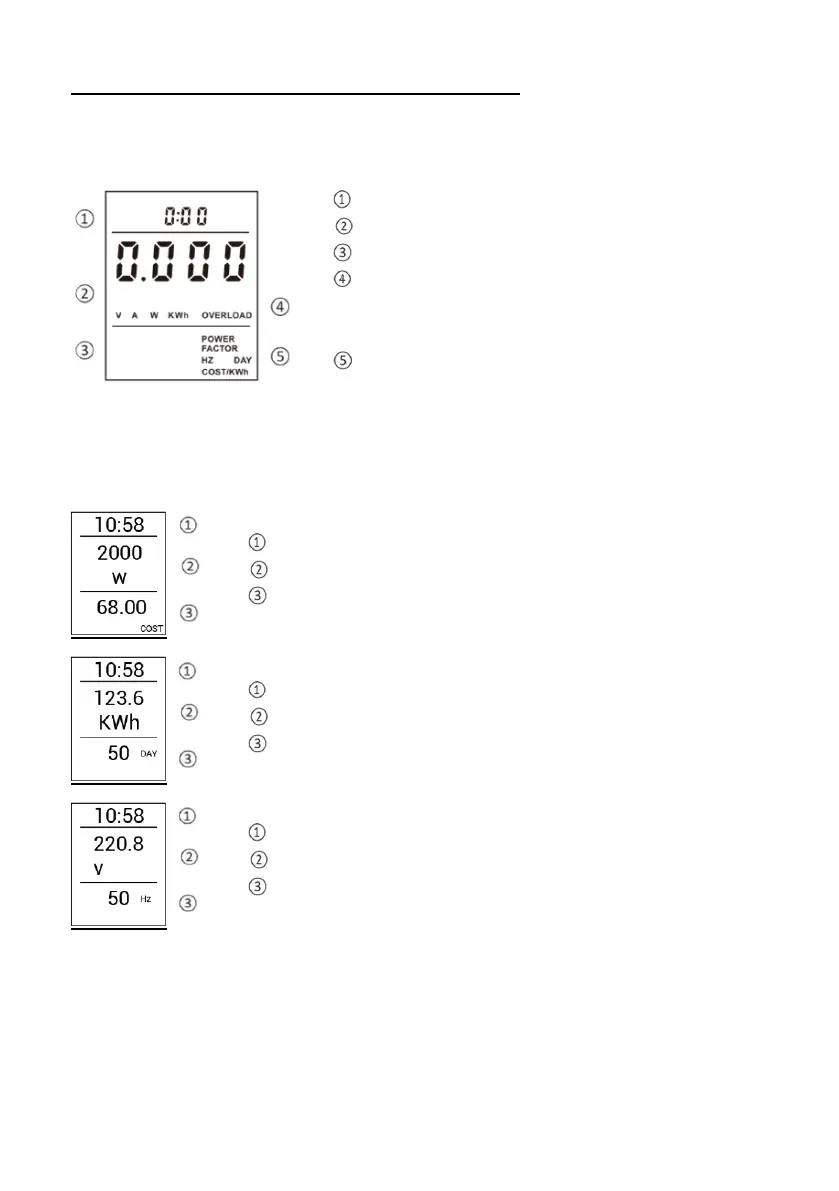

2.1 Press the “Request” button to view the detection results. The pages are displayed as follows:
Time display bar
V/A/W/KWh value
PO POWER FACTOR/HZ/COST/KWh value
V: Voltage
A:Electricity
(KWh) kilowatt hour: Electricity Consumption
W: Power
OVERLOAD: Power Overload Warning
POWER FACTOR: Active Power and Apparent Radio Power
HZ: AC Frequency
DAY: Cumulative Electricity Consumption in Days
COST: Cumulative Amounts of Electricity Consumption
kWh: Cumulative Electricity Consumption
COST/KWh: Unit Price of Electricity
Running Time: Cumulative Running Time of Electrical Appliances. After 24 hours, DAY increases by +1
Current power: the actual power of the electrical appliance connected to it, Unit: W
Cumulative Electricity Bill: Costs consumed to date, Unit: COST
Run Time
Cumulative Electricity Consumption: Cumulative Electricity Consumption until now, Unit: KWh
Accumulated time: the Cumulative Number of Days the Appliance has been running, Unit: DAY
Run Time
Grid Voltage: Current real-time Voltage of the Grid, Unit: V
Grid Frequency: Grid AC Frequency, Unit: HZ
To Next Page
