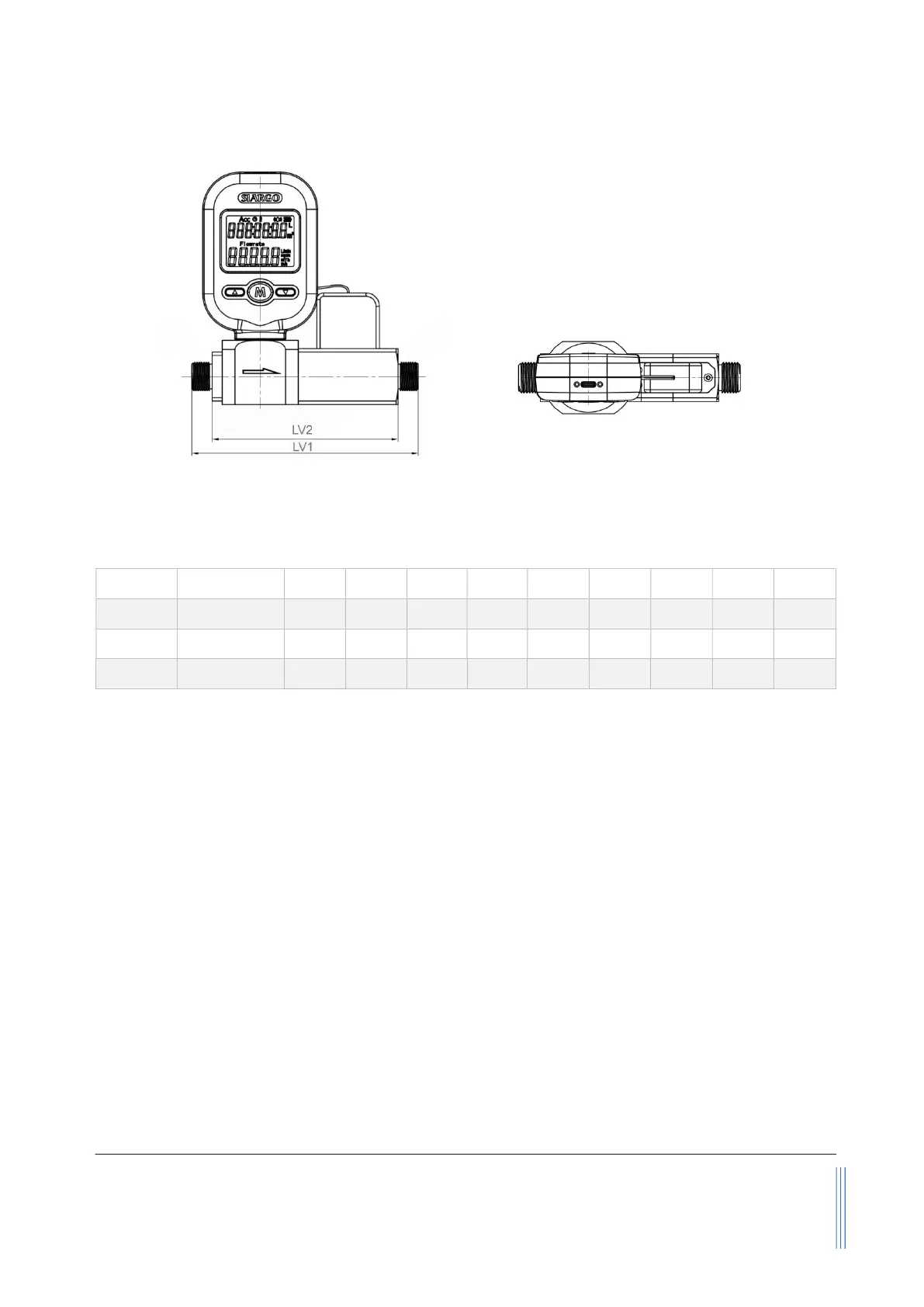

Figure 3.6: MF5700 meter with control valves dimensions
Table 3.3: Mechanical dimensions of the meters/meters with control valves
Connector, G
L1 L2 LV1 LV2 W1 W2 H1 H2 H3
MF5706
BSPP ¼” 61 34 95.5 123 34 25 127 28 12.5
MF5708
BSPP 3/8” 81 45 110 134 45 30 134 35 15.5
MF5712 BSPP ½” 90 50 115 143 45 30 141 42 19.5
