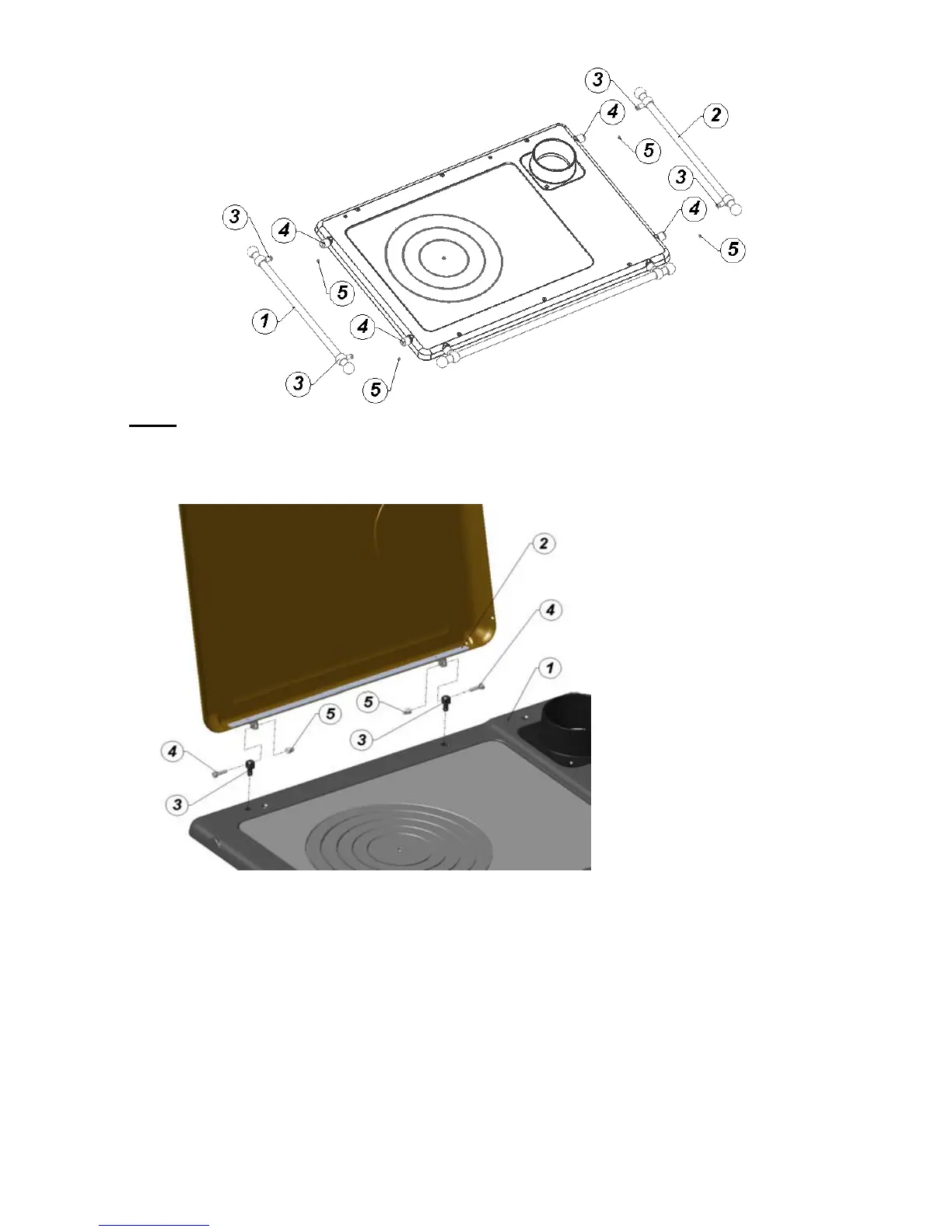

KEY:
(1) L Handrail, (2) R Handrail, (3) Handrail Pin, (4) Handrail Bush,
(5) M5 Grub Screw.
2.2 ASSEMBLING THE COVER (OPTIONAL)
1 - FRAME
2 - COVER
3 - PINS TO FASTEN THE
COVER
4 - HH SCREWS M 6x20
5 - M6 CAP NUTS
To attach the cover to the
frame of the stove, proceed
as follows:
Screw the pins (3) fully into
the holes cut in the frame
(1). Bring the cover (2) close
to the pins (3). Insert the
threaded screws (4) fully
into the holes of the pins (3)
and then into the holes in the two eyelets attached to the cover (2). Put the cap nuts on
and tighten fully.
N.B.: When the threaded pins (3) are completely tightened, the cover can be opened
around 5° at the back. It can be opened more by not tightening the pins completely.
2.3 GENERAL RULES
Some general instructions must be followed when installing the stove:
- The appliance generates heat especially near the firebox so no inflammable or very
heat-sensitve object (e.g. alcohol, paper, plastic items, etc) should be placed near the
stove.
- Keep the stove away from the walls or other secondary protection according to the
measurements in TAB. 1 ch. 1.3 (minimum measurements).
7
