- 30 -
Spare Parts
Figure 11b. Types CGG & CAZ, 580 Frame
Item Description Item Description
1 Stator Core 10 Internal Fan
2 Stator Yoke 11 Air Deflector
3 Stator Coils 12 Shaft Seal
4 Bearing Housing 13 TEAAC Heat Exchanger
5 Rotor Shaft 14 Fan Housing
6 Inner End Cap 15 External Fan
7 Ball Bearing 16 Motor, Auxiliary Blower
8 Rotor Core 17 TEWAC Top Cover
9 Insulating Adapter 18 TEWAC Heat Exchanger

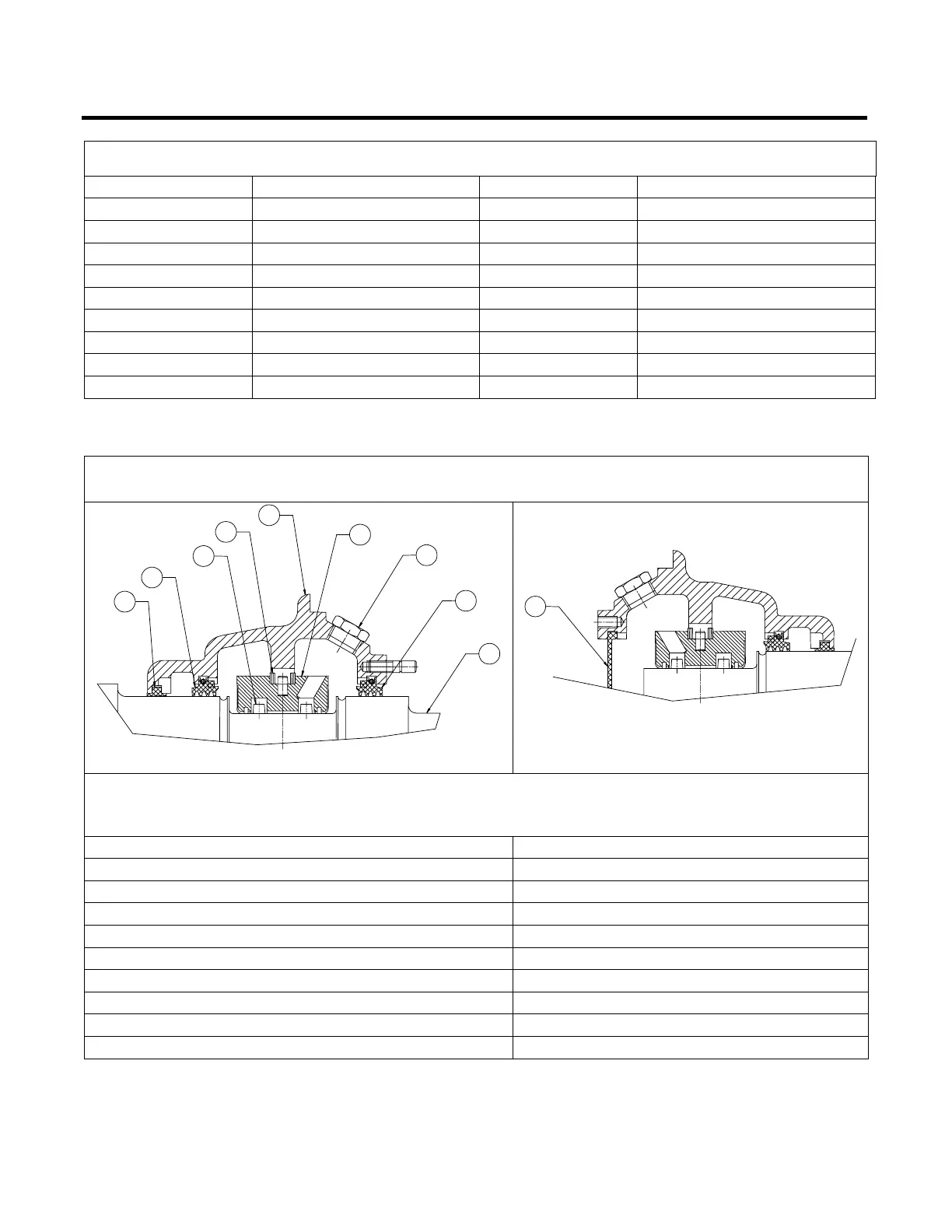

Figure 12. 580 Frame Sleeve Bearings
1
2
3
4
5
6
7
3
8
9
Drive End Opposite Drive End
Item Description
1 Bearing Housing
2 Bearing Bushing
3 Oil Seal
4 Oil Ring
5 Air Seal
6 Shims
7 Oil Sight Glass
8 Rotor Shaft
9 End Cover
