- 32 -
Spare Parts
Figure 13b. Types CGG & CAZ, 680 & 800 Frames
Item Description Item Description
1 Stator Core 11 Air Deflector
2 Stator Yoke 12 Shaft Seal
3 Stator Coils 13 External End Cap
4 Bearing Housing 14 TEAAC Heat
Exchanger
5 Rotor Shaft 15 Fan Housing
6 Inner End Cap 16 External Fan
7 Ball Bearing 17 Motor, Auxiliary
Blower
8 Rotor Core 18 TEWAC Top Cover
9 Insulating Adapter 19 TEWAC Heat
Exchanger
10 Internal Fan

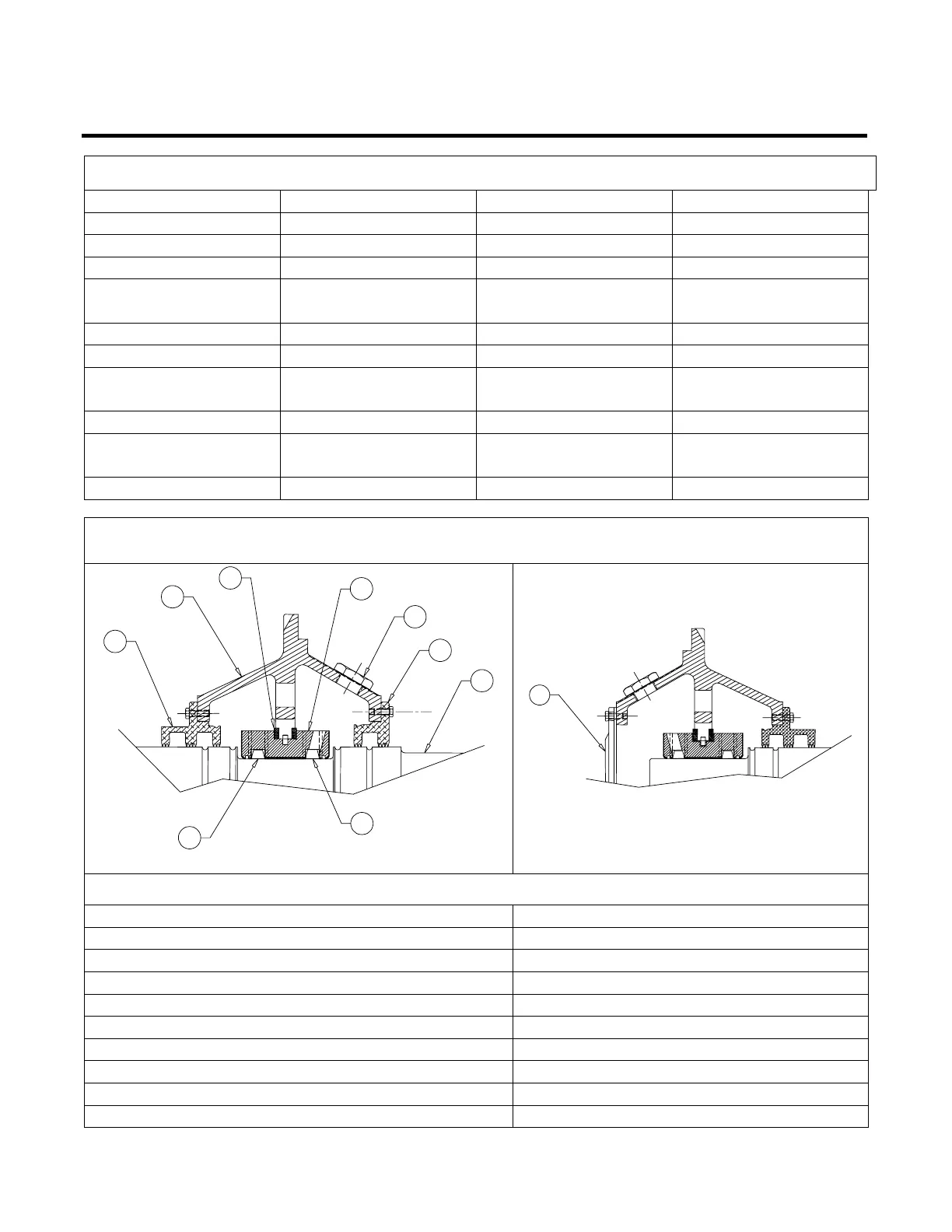

Figure 14. 680 & 800 Frame Sleeve Bearings
1
2
3
4
5
6
7
8
5
9
Drive End Opposite Drive End
Item Description
1 Bearing Housing
2 Bearing Bushing
3 External Oil Seal
4 Internal Oil Seal
5 Oil Ring
6 Shims
7 Oil Sight Glass
8 End Cover
9 Rotor Shaft
