Siemens 6SL3352-7AE32-1AA1 Instruction Sheet

© Siemens plc 2001
4
Issue A1 27/11/01

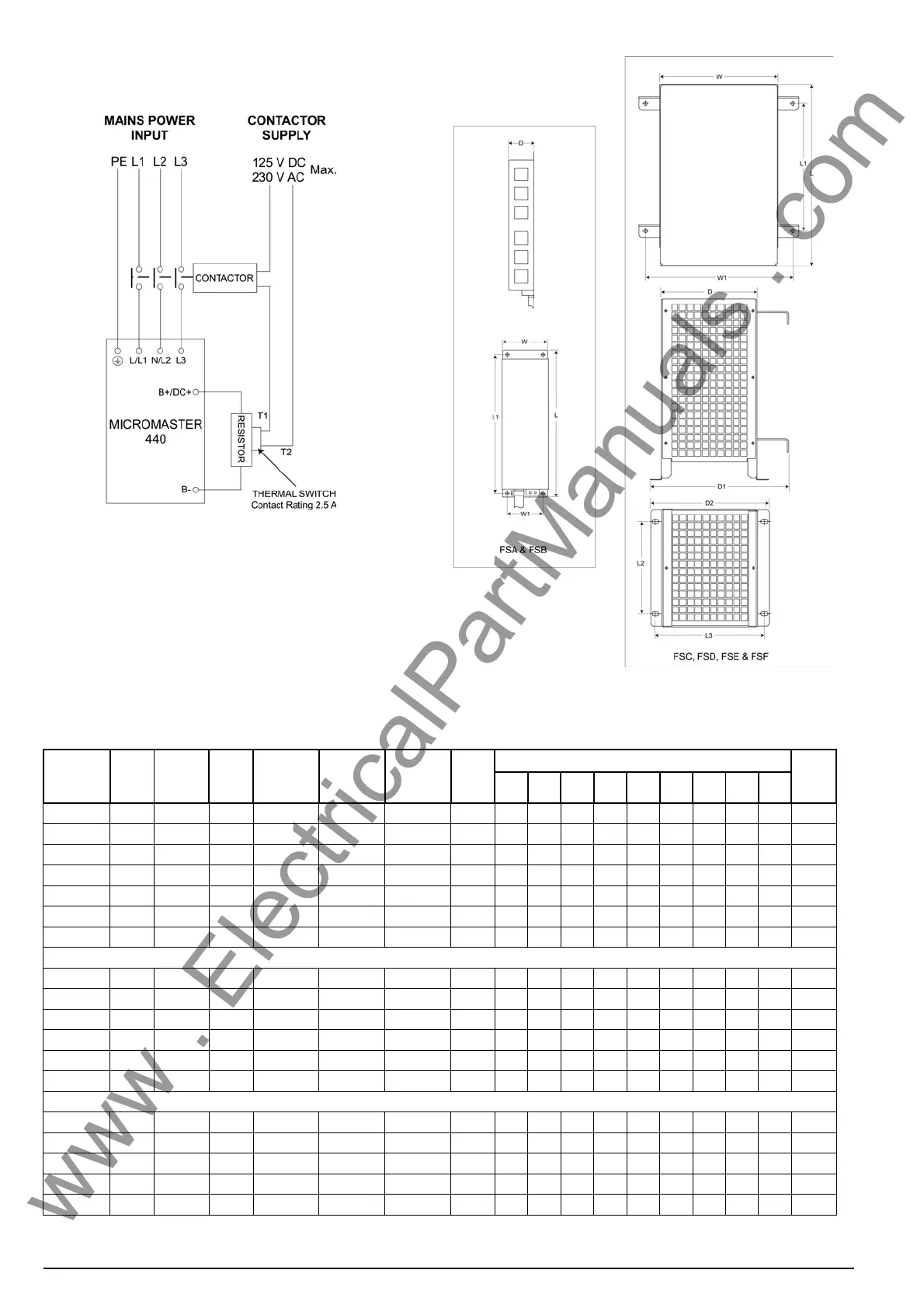

Braking Resistor Selection
Dimensions
(mm)
Resistor
MLFB
6SE6400-
Inverter
Frame
Size
Inverter
Nominal
Voltage
(V)
Max
Inverter
Power
(kW)
Continuous
Power
(W)
Peak Power
5% Duty Cycle
(12 Seconds)
Resistance
Ohms
+/- 10%
DC
Voltage
Rating
(V)
L L1 L2 L3 D D1 D2 W W1
Resistor
Weight
(Kg)
4BC05-0AA0 A 230 0.75 50 1000 180 450 230 217 - - 43.5 - - 72 56 1.0
4BC11-2BA0 B 230 2.2 120 2400 68 450 239 226 - - 43.5 - - 149 138 1.6
4BC12-5CA0 C 230 3.0 250 4500 39 450 285 200 145 170 150 217 185 185 230 3.8
4BC13-0CA0 C 230 5.5 300 6000 27 450 285 200 145 170 150 217 185 185 230 3.8
4BC18-0DA0 D 230 15.0 800 16000 10 450 515 350 205 195 175 242 210 270 315 7.4
4BC21-2EA0 E 230 22.0 1200 24000 6.8 450 645 480 205 195 175 242 210 270 315 10.6
4BC22-5FA0 F 230 45.0 2500 50000 3.3 450 650 510 270 335 315 382 382 400 435 16.7
4BD11-0AA0 A 400 1.5 100 2000 390 900 230 217 - - 43.5 - - 72 56 1.0
4BD12-0BA0 B 400 4.0 200 4000 160 900 239 226 - - 43.5 - - 149 138 1.6
4BD16-5CA0 C 400 11.0 650 13000 56 900 285 200 145 170 150 217 185 185 230 3.8
4BD21-2DA0 D 400 22.0 1200 24000 27 900 515 350 205 195 175 242 210 270 315 7.4
4BD22-2EA0 E 400 37.0 2200 44000 15 900 645 480 205 195 175 242 210 270 315 10.6
4BD24-0FA0 F 400 75.0 4000 80000 8.2 900 650 510 270 335 315 382 382 400 435 16.7
4BE14-5CA0 C 575 5.5 450 9000 120 1100 285 200 145 170 150 217 185 185 230 3.8
4BE16-5CA0 C 575 11.0 650 13000 82 1100 285 200 145 170 150 217 185 185 230 3.8
4BE21-3DA0 D 575 22.0 1300 26000 39 1100 515 350 205 195 175 242 210 270 315 7.4
4BE21-8EA0 E 575 37.0 1900 38000 27 1100 645 480 205 195 175 242 210 270 315 10.6
4BE24-2FA0 F 575 75.0 4200 84000 12 1100 650 510 270 335 315 382 382 400 435 16.7
