Installation instructions en
23

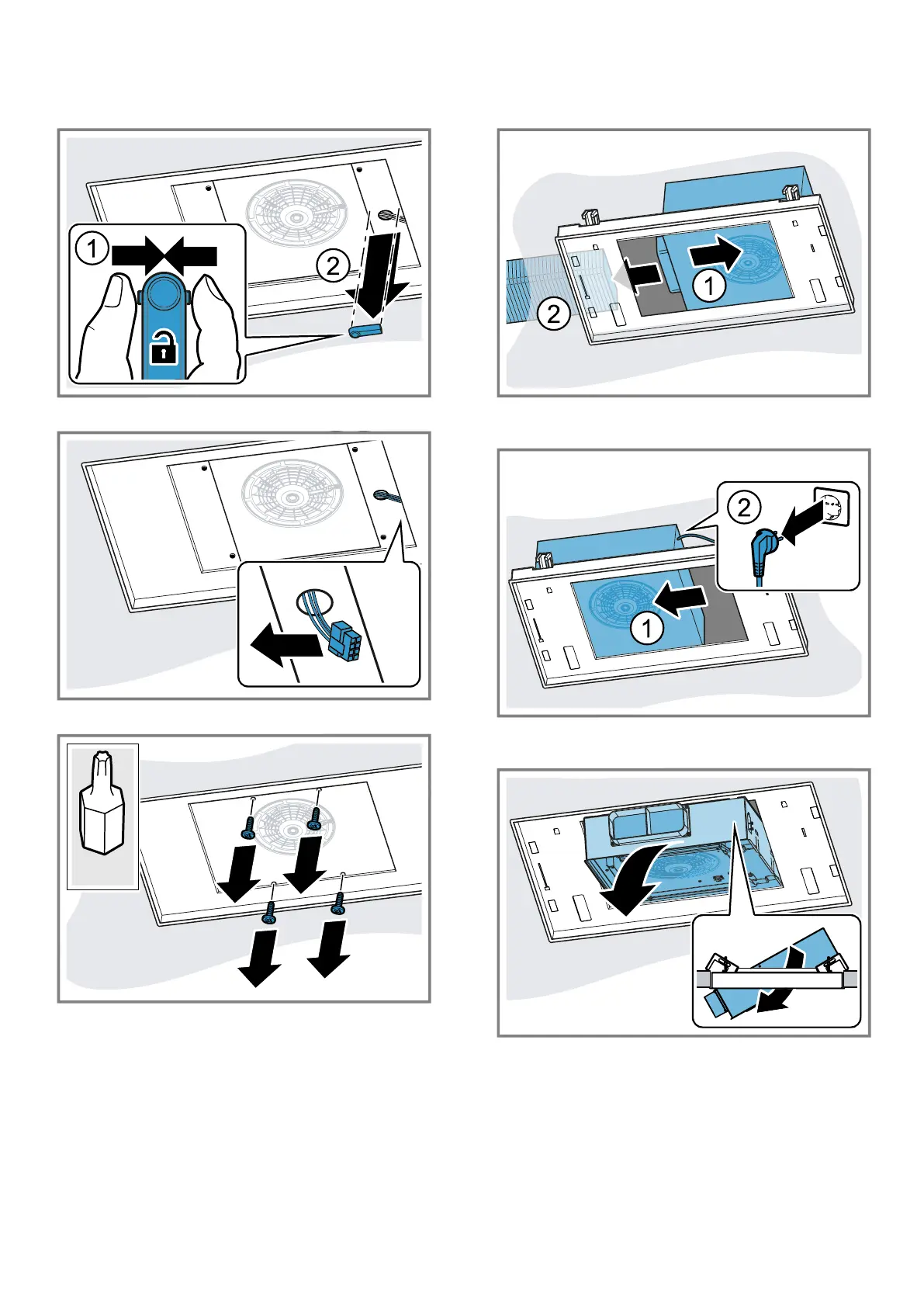

8. Press together the cable duct at the sides and re-
move it.
9. Disconnect the cable at the appropriate point.
10. Undo the opposite screws to loosen the fan box.
T 20
11. Push the fan box to the side and release the pipe-
work.
12. Push the fan box to the other side and pull out the
mains plug.
13. Rotate the fan box in such a way that the air outlet
faces forwards.
14. Remove the fan box.
