Installation instructions en
23
2.

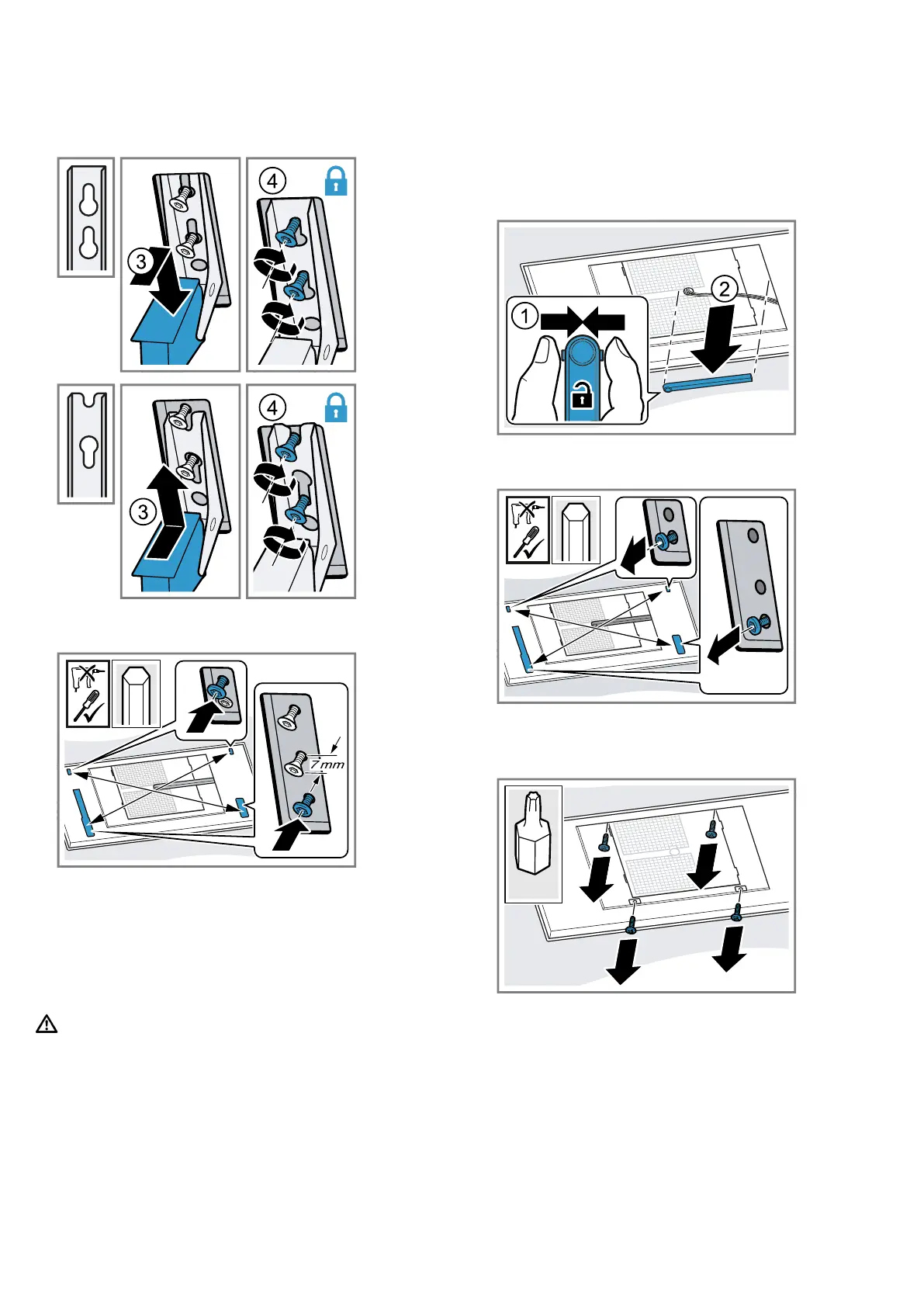

Mount the filter cover on the designated screws and
push it backwards/forwards depending on the key
hole opening into the narrow section.
3.
Tighten the fastening screws on the hinges.
4.
Check whether the appliance frame is lying flush.
Retighten the screws if necessary.
5.
Fit the grease filters.
To avoid causing damage, do not bend the grease
filters.
6.
Swing the filter cover up and ensure that it engages.
Removing the appliance
WARNING‒Risk of injury!
The appliance is heavy.
▶ To move the appliance, twopeople are required.
▶ Use only suitable tools and equipment.
Components inside the appliance may have sharp
edges.
▶ Wear protective gloves.
Risk of injury when opening and closing the hinges.
▶ Keep your hands away from the hinges.
1.
Disconnect the appliance from the power supply.
2.
Swing down the filter cover.
Open the filter cover fully and without pulling on it.
3.
Remove the grease filters.
To avoid causing damage, do not bend the grease
filters.
4.
Press together the cable duct at the sides and re-
move it.
5.
Disconnect the cable at the appropriate point.
6.
Undo the screws on the hinges up to approx.7mm.
Do not loosen them fully.
7.
Unhook and remove the filter cover.
8.
Undo the opposite screws to loosen the fan box.
9.
Push the fan box to the side and release the pipe-
work.
10.
Push the fan box to the other side and pull out the
mains plug.
11.
Screw the fan box firmly back in place.
