en Installation instructions
22
4.

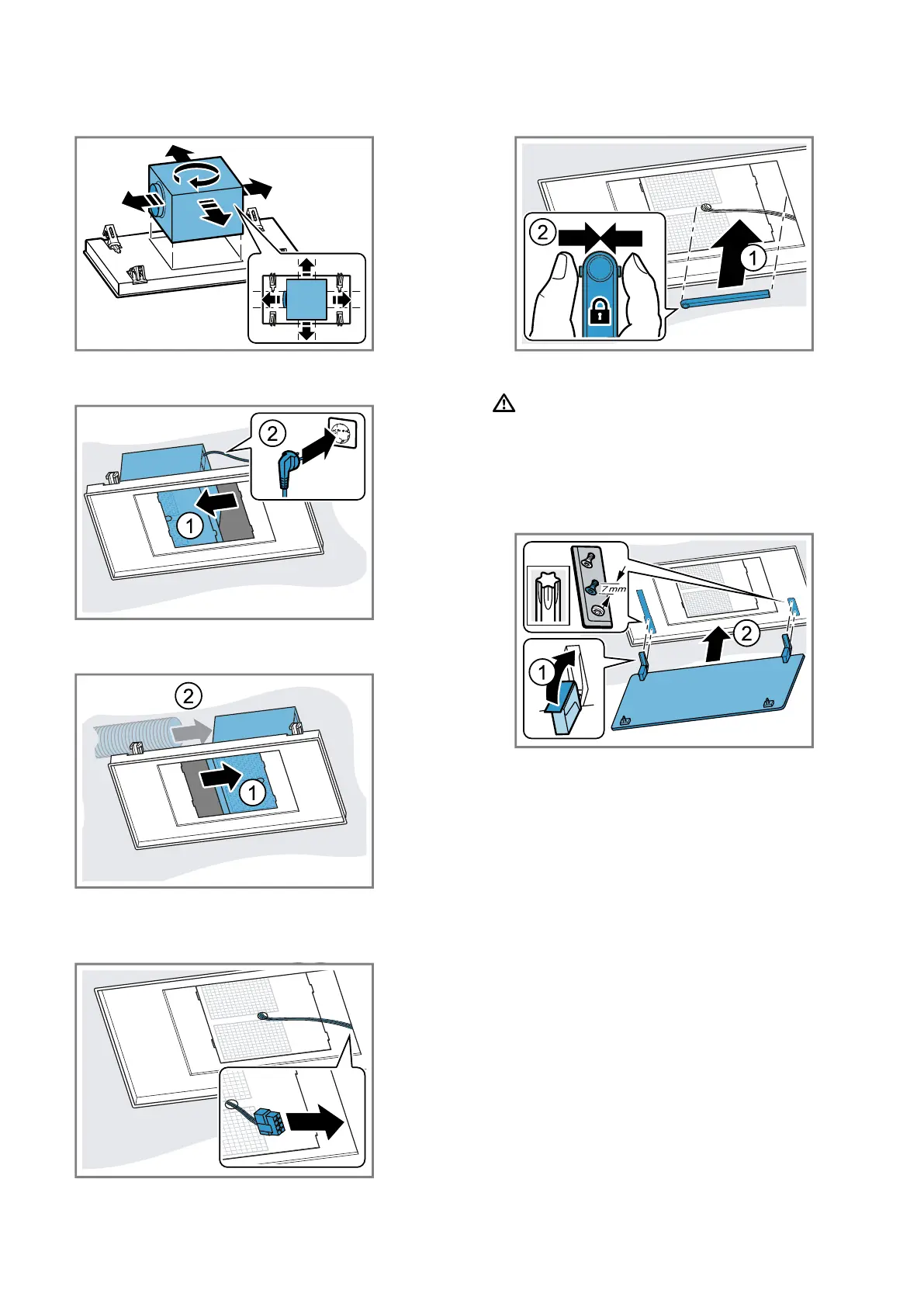

Turn the fan box into the correct position according
to the installation situation.
5.
Push the fan box to the side and connect the appli-
ance to the power supply.
6.
Push the fan box to the other side and connect the
pipework.
7.
Position the fan box in the centre and screw it firmly
in place.
8.
Connect the cable.
9.
Press together the cable duct at the sides and at-
tach.
Fitting the filter cover
WARNING‒Risk of injury!
Components inside the appliance may have sharp
edges.
▶ Wear protective gloves.
Risk of injury when opening and closing the hinges.
▶ Keep your hands away from the hinges.
1.
Open the hinges on the filter cover.
