Siemens QAX32.1 User Manual

6/6
Siemens QAX32.1 – Room unit with PPS2 interface CA2N1641en_03
Building Technologies 2015-12-23

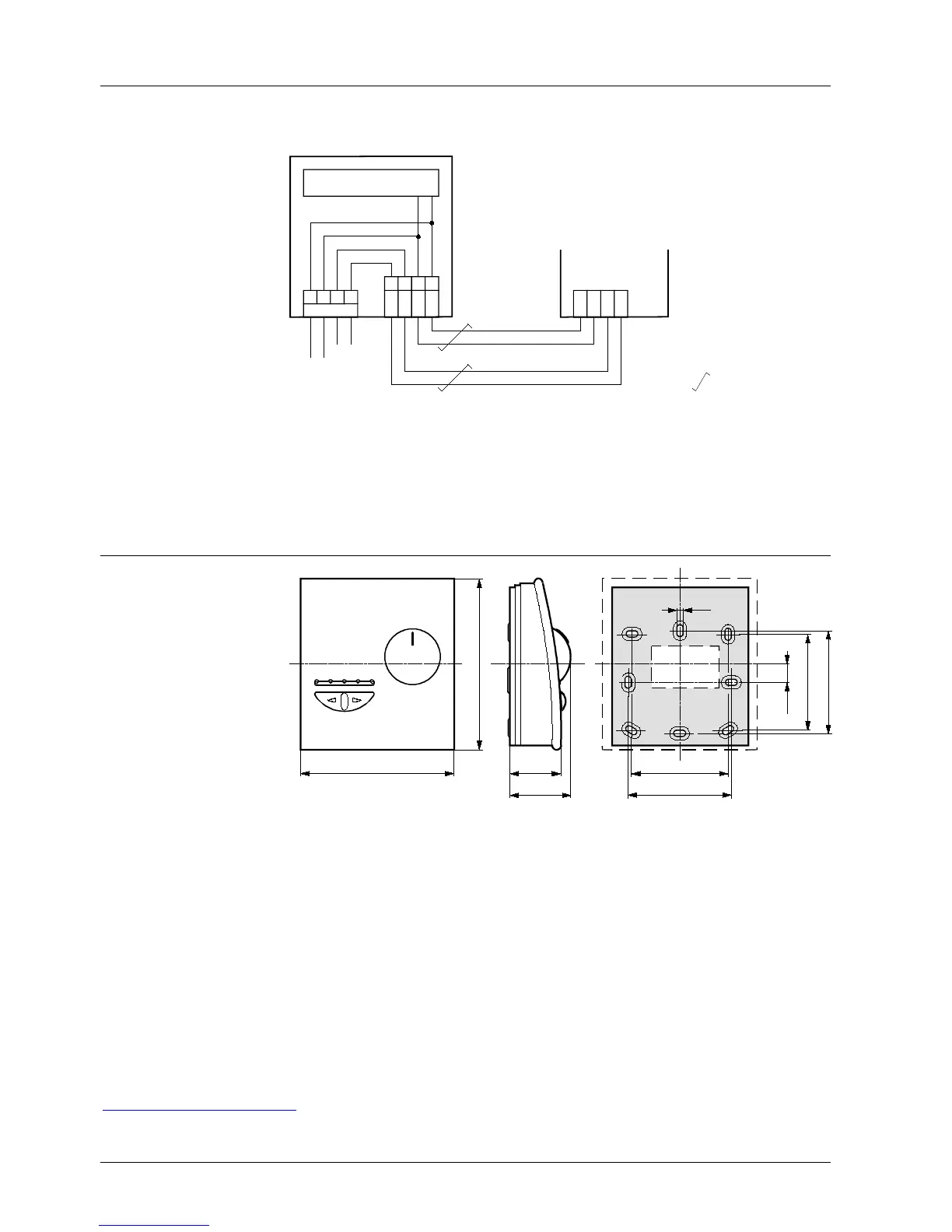

Connection diagram (Example: RXC)
The following example shows the room unit connected to a Desigo RXC room
controller:
1741A03
PPS2
Tool
A
R1
B
7 8 1 2
4 3 2 1
C– C+ CP– CP+
N1
CP+ CP– CLA CLB
PPS2
LonWorks® Bus
= Twisted pair
R1 Room unit QAX32.1
N1 Room controller RXC...
A Connection for RXT10 commissioning and service tool
B Connection for service terminal with PPS2 interface
Dimensions
9,5
32
36
4,2
60
80087
90
100
56 60
56
Published by:
Siemens Switzerland Ltd.
Building Technologies Division
International Headquarters
Gubelstrasse 22
6301 Zug
Switzerland
Tel. +41 41
-724 24 24
www.siemens.com/buildingtechnologies
© Siemens Switzerland Ltd 2000
Delivery and technical specifications subject to change
All dimensions in mm
