Dimension drawings
8.1 Dimension drawing
SCALANCE X-200
106 Compact Operating Instructions, 12/2010, A5E00813159-11

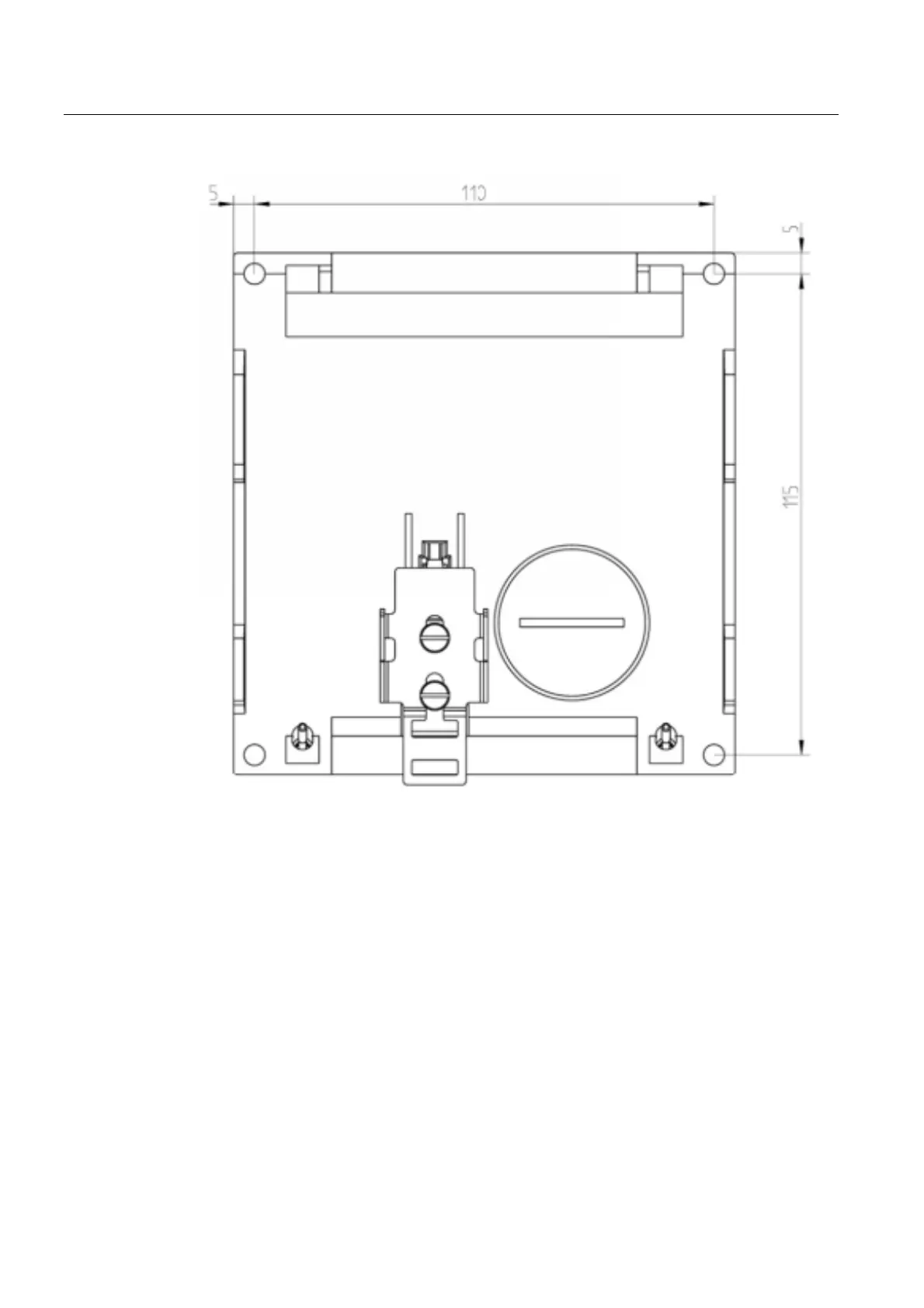

Figure 8-2 Dimension drawing SCALANCE X216, X212-2 and X212-2LD
