Anschließen
5.1 Spannungsversorgung
SCALANCE X-200
Kompaktbetriebsanleitung, 12/2010, A5E00813159-11
27

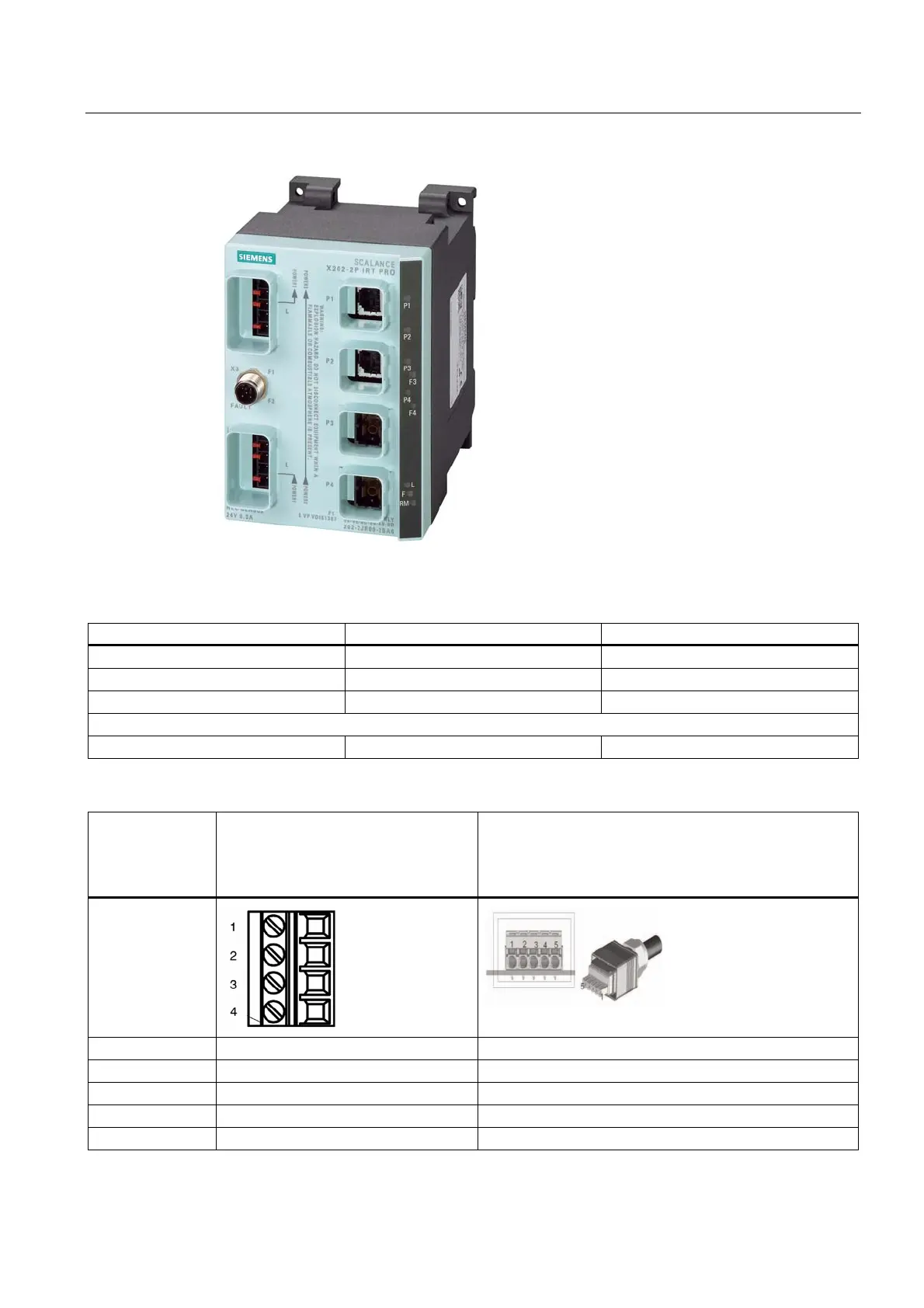

Bild 5-1 Einbaulage für Betrieb unter Grenzbedingungen
Tabelle 5- 1 Betrieb unter Grenzbedingungen
Umgebung Max Power 1 (L1+, N1) Max Power 2 (L2+, N2)
+40°C 16 A 16 A
+50°C 12 A 12 A
+60°C 8 A 8 A
Nur SCALANCE X204 IRT PRO
+70°C 6 A 6 A
Tabelle 5- 2 Pinbelegung
Pinnummer Belegung
(Ausnahmen:
SCALANCE X204 IRT PRO,
X202-2P IRT PRO,
X201-3P IRT PRO)
X204 IRT PRO
X202-2P IRT PRO
X201-3P IRT PRO
Pin 1 L1 +24 V DC L1 +24 V DC
Pin 2 M1 N1
Pin 3 M2 L2 +24 V DC
Pin 4 L2 +24 V DC N2
Pin5 - FE (Functional Earth)
