Dimension drawings
8.1 Dimension drawing
SCALANCE X-200
Compact Operating Instructions, 12/2010, A5E00813159-11
109

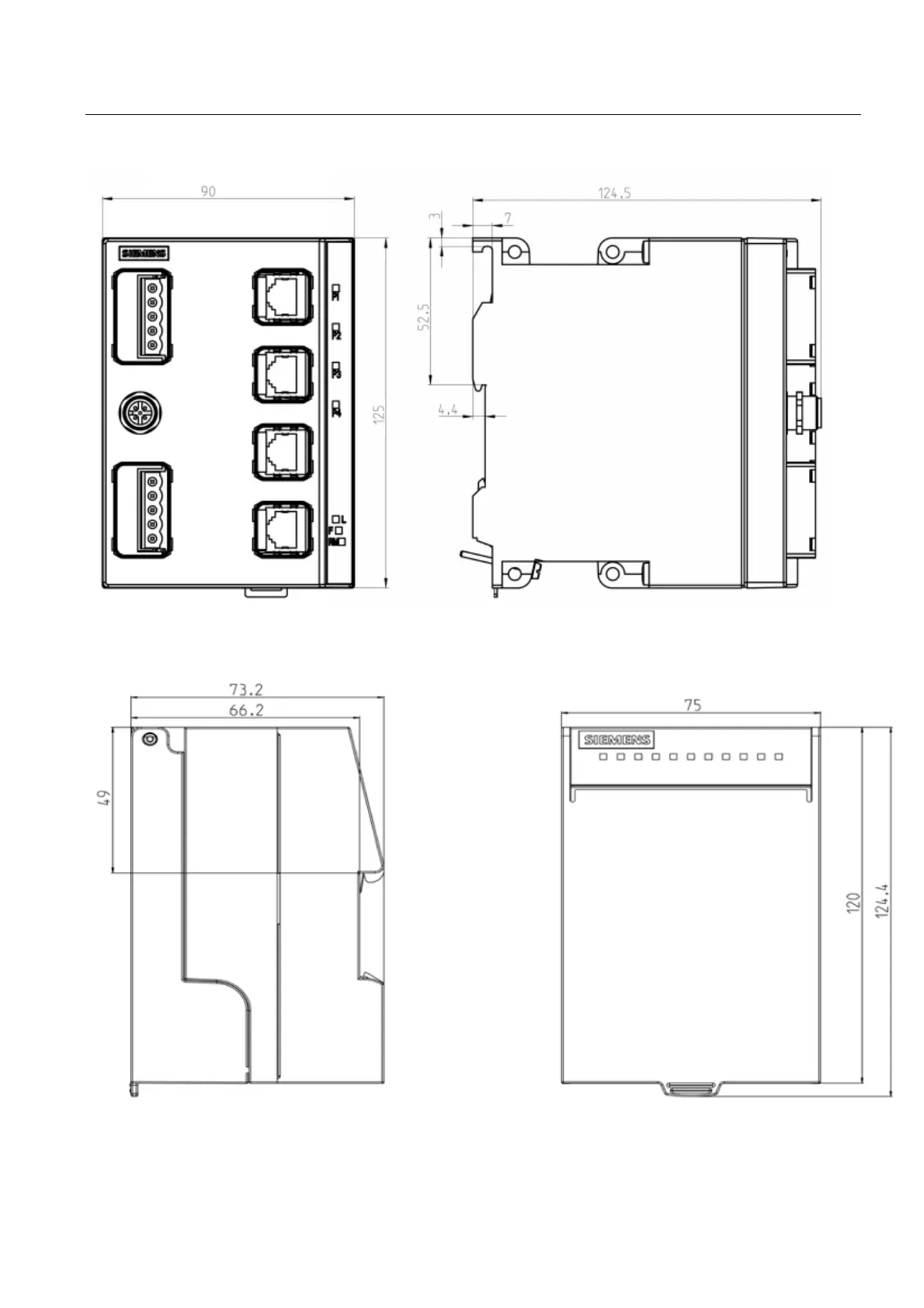

Figure 8-6 Dimension drawings of the SCALANCE X204 IRT PRO, SCALANCE X202-2P IRT PRO, SCALANCE X201-
3P IRT PRO
Figure 8-7 SCALANCE XF-200 dimension drawings
